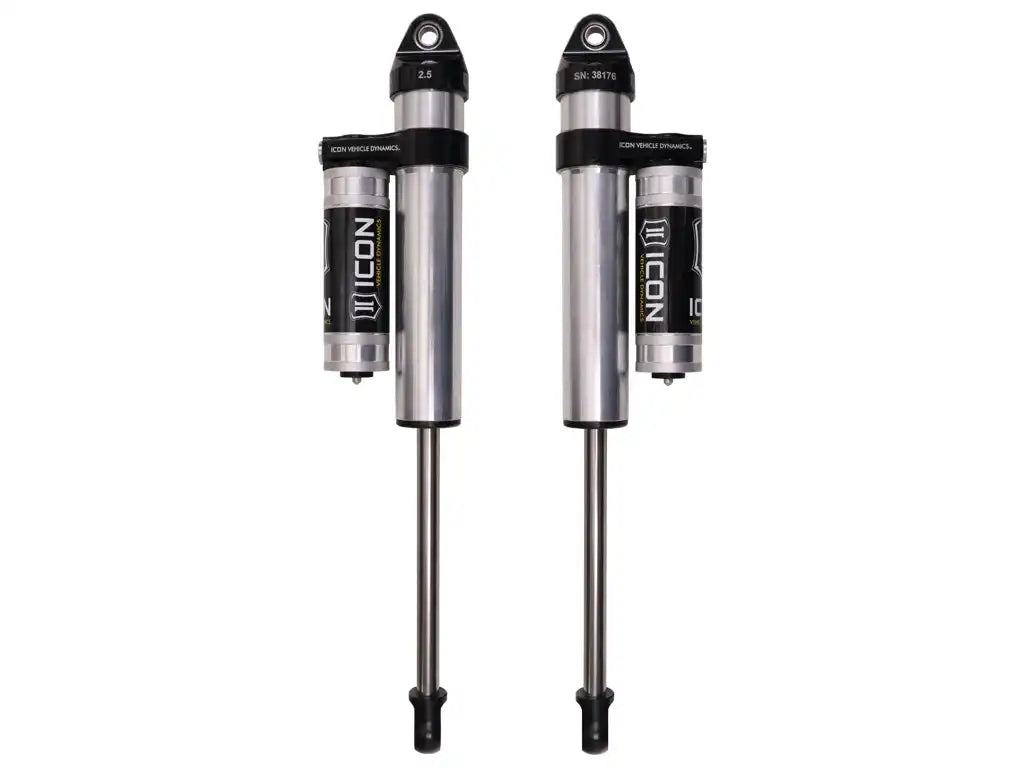

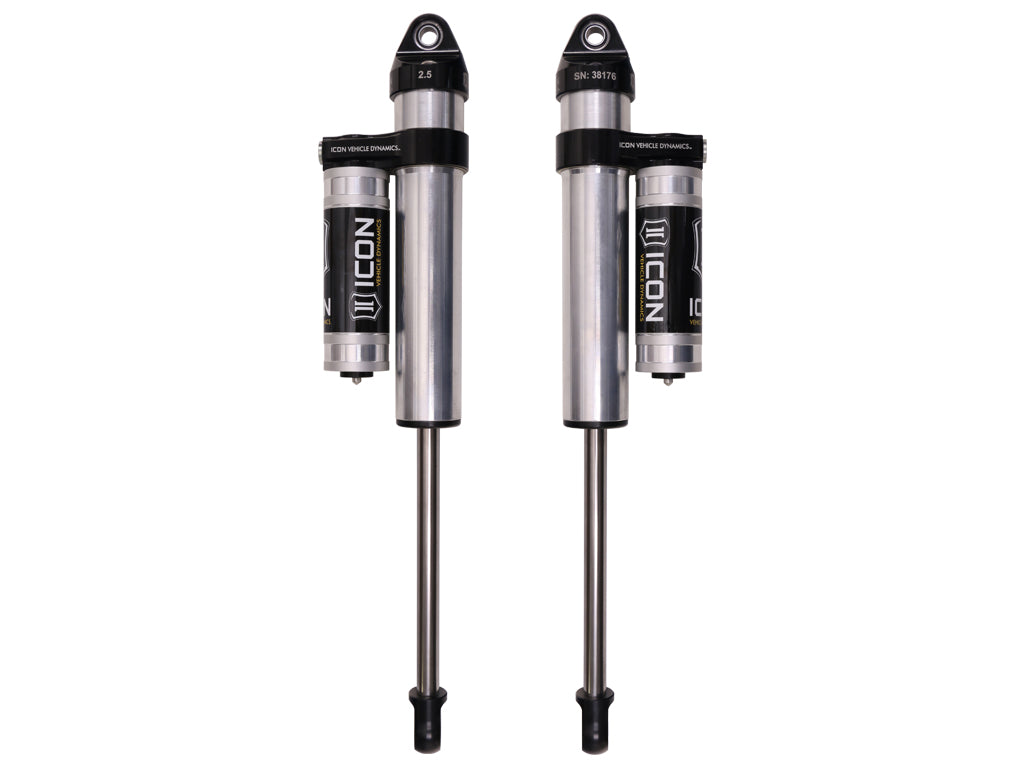

ICON Vehicle Dynamics FRDK_59705P-CB 07-21 TUNDRA 6" SECONDARY 2.5 VS PB PAIR

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks.

Shock Absorber; 2.5 Series; Nitrogen Gas Charged; With Remote Reservoir; One Year Limited Warranty; Non Adjustable; Without Shock Boots; Gray; Set Of 2

Features & Benefits

• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• 100% Revalveable
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
• 7/8” diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• Nitrogen charged monotube design with piggyback reservoir
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)

Attributes

• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Set Of 2
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Gray
• Rod Diameter (IN): 7/8 Inch
• Valving Type: Application Specific Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: Yes
• Includes Dust Shield: No
• Includes Boot: No
• Estimated Install Time (Hours): 1

Attributes:

• GTIN: 00840103404684
• Brand Name: ICON Vehicle Dynamics
• 30: Yes
• 3390: Performance
• 359: 2.5
• 40: NO
• 408: Center of Eylet
• 409: Center of Eylet
• 48: EYELET
• 49: EYELET
• 50: NO
• 51: Yes
• 905: 2.25
• Cylinder Color: Silver
• Cylinder Material: Steel
• Damping Type: Oil
• External Reservoir: Yes
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Shaft Diameter: 0.875
• Shaft Material: Chrome

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 38.0000 x 10.0000 x 8.0000 inches
• Weight: 30.0000 lb

Warranties

• ICON_Warranty_2023_1730.pdf
