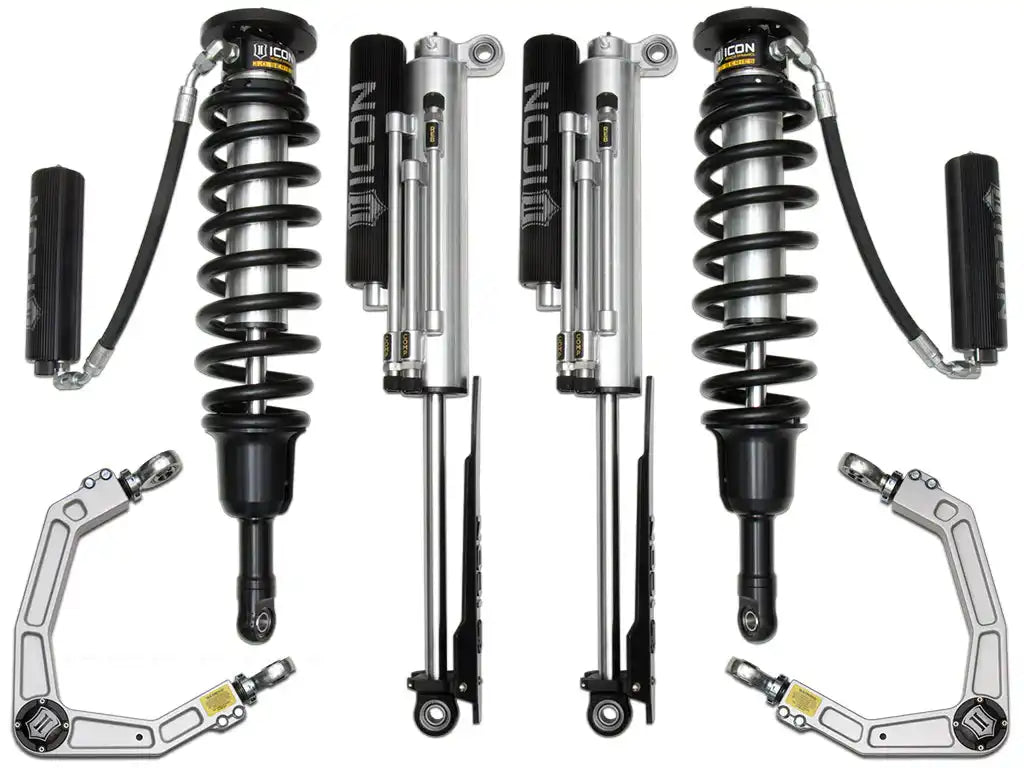

ICON Vehicle Dynamics FRDK_K93152 17-20 FORD RAPTOR STAGE 2 SUSPENSION SYSTEM

Holistic Engineering - the ICON Difference: When developing suspension components for a new vehicle, ICON takes a different approach than many others. Rather than focusing in on one particular part, ICON engineers look at the vehicle as a whole, identify inherent strengths and weaknesses, and set a target for performance. With a focus on maximizing wheel travel and improving ride quality, ICON will develop components that address (and often times replace) OE limiting factors. This "holistic engineering" philosophy often results in the development of several parts designed to work together as a system to provide a balanced on and off-road performance upgrade. Because ICON is designing and manufacturing all of the components necessary to improve the performance of a vehicle from front to back, end-users can rest easy knowing they are dealing with ONE manufacturer, ONE standard of quality, and ONE awesome warranty to back it all up.

• 3.0 SERIES COILOVER SHOCK KIT
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Heavy duty CNC machined 1” shock shafts
• FK Rod End COM12 spherical bearings ensure maximum strength and durability
• CAD plated shock body with hard anodized piston and top cap
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Bolt-in design makes for an easy install into OEM shock location
• 3.0 SERIES 3-TUBE BYPASS SHOCK KIT
• 3-tube bypass design and "Bump Zone" technology provides multiple unique zones of damping and rebound control
• 50% increase in damping ability over OE shocks for excellent performance in extreme off-road conditions
• 12" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
• Adjustable coilovers yield 1-3” of front lift height
• Offset upper eyelet with patented ICON Anti-Wobble link for optimized shock mounting and packaging
• Easy-to-adjust detented knobs offer quick adjustability without the use of tools
• Specially engineered damped valve stops for quiet and precise operation without the loud “clicking” noise common with other brands
• Urethane shin guards help to protect the shock shaft & rod end from premature wear
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Superior low speed control reduces body roll and increases on-road stability
• Easy-to-adjust CDC Valve (Compression Damping Control) has 10 compression damping settings to suit all types of driving styles across varying terrain and vehicle cargo setups
• ICON’s multi-stage hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
• 10" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
• Barreled coil spring design maximizes travel and provides more efficient packaging

Attributes:

• GTIN: 00840103420417
• Brand Name: ICON Vehicle Dynamics
• 2064: Steel
• 2371: NO
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3
• 7325: 2
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 33.0000 x 15.0000 x 10.0000 inches
• Weight: 167.0000 lb
