ICON Vehicle Dynamics FRDK_78734T 20-UP GM HD 0-2" RR SHOCK SYS W/ TUBE UCA
Vendor:
ICON Vehicle Dynamics
SKU:
FRDK_78734T
Availability:
55
In Stock
Product Type:
Suspension Control Arm Kit
- Regular price
- $1,929.00 USD
- Regular price
-
$2,057.00 - Sale price
- $1,929.00 USD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description

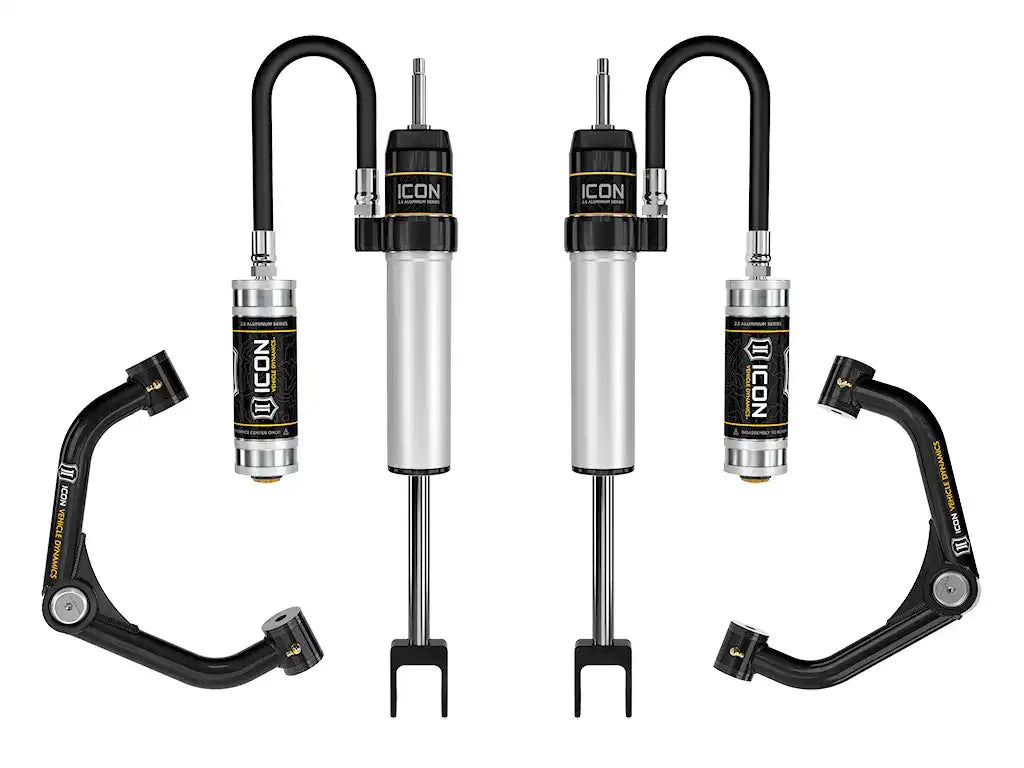

xTo ensure compatibility, ICON is no longer offering GM 2500HD/3500HD upper control arms as individual components. Upper control arms can only be purchased in unison with ICON shock absorbers as a complete system. The included ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all of ICON's Shock Absorbers, the V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.

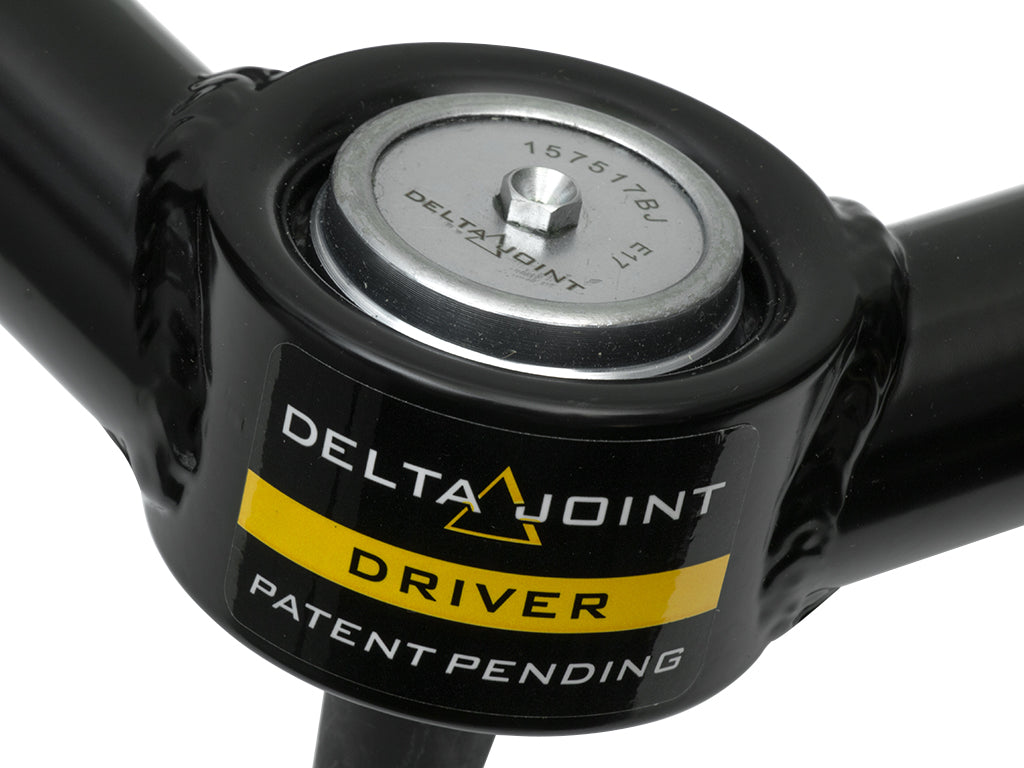

- Features ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
- CNC Bent Tubing
- CNC Machined Bushing Housings and Sleeves
- Built-In Caster Correction
- Serviceable Dual Stage Bushings
- Black Semi-Gloss Powder Coat Finish
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- Nitrogen charged monotube design with remote reservoir
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON's Compression Damping Control Valve (CDCV)
- ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- 7/8" diameter induction hardened, chrome plated shock shaft
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 6061 aircraft grade aluminum CNC machined components
- 100% Rebuildable
- 100% Revalveable
- 1026 DOM Steel Construction
Attributes:
- GTIN: 00840103410616
- Brand Name: ICON Vehicle Dynamics
- 2330: No
- 2339: yes
- 2354: Performance
- 2371: Yes
- 2382: Press In
- 2383: Threaded
- 2384: Yes
- 2386: Tubular
- 2389: DOM Steel
- 30: Yes
- 3390: Performance
- 40: No
- 4888: Black
- 73: Polyurethane
- Add-On Part: 191011 - TUBULAR UCA BILLET CAP SET
- Adjustable Control Arm: No
- Bushing Color: Black
- Finish: Powdercoated
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.5” Backspace / 12mm Offset
- Service Parts: 614519 - DELTA JOINT INSTALL PRESS ADAPTER TUBE
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 7.0000 inches
- Weight: 50.0000 lb
