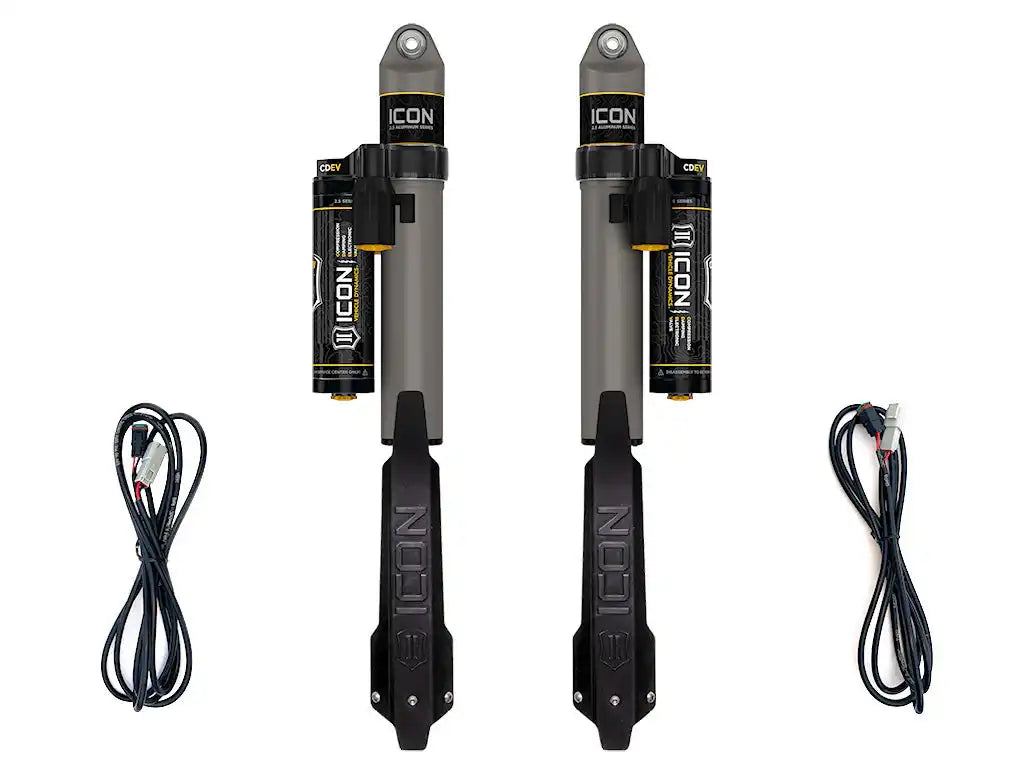

ICON Vehicle Dynamics FRDK_27727EP 20-UP JT 1.5" REAR 2.5 VS PB CDEV PAIR
Vendor:
ICON Vehicle Dynamics
SKU:
FRDK_27727EP
Availability:
Out of stock. Chat\Call to Order
Product Type:
Suspension Shock Absorber Set
- Regular price
- $2,400.00 USD
- Regular price
-
$2,154.00 - Sale price
- $2,400.00 USD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
* Images may differ from actual product.
Description

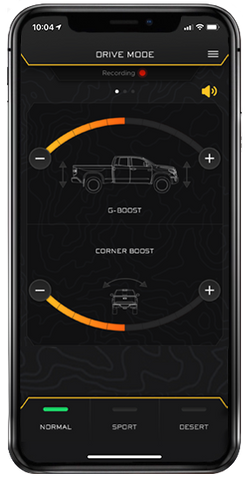

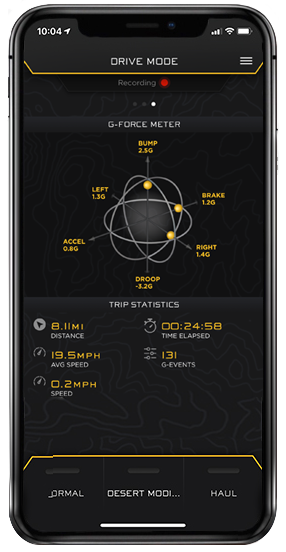

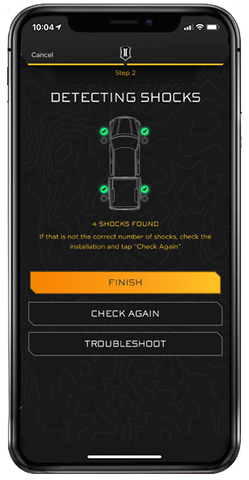

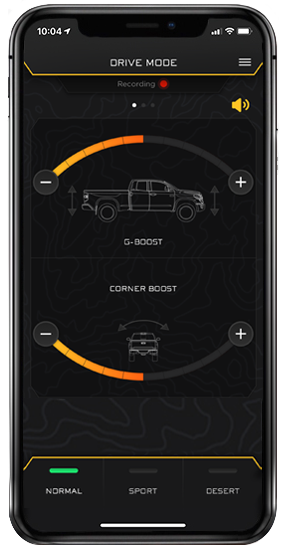

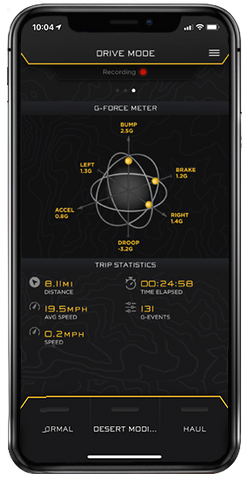

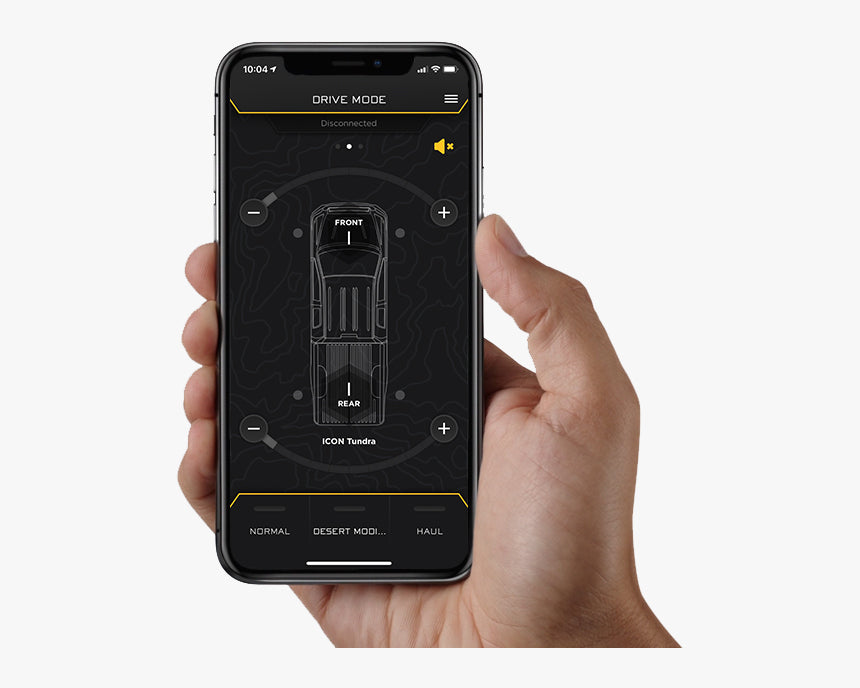

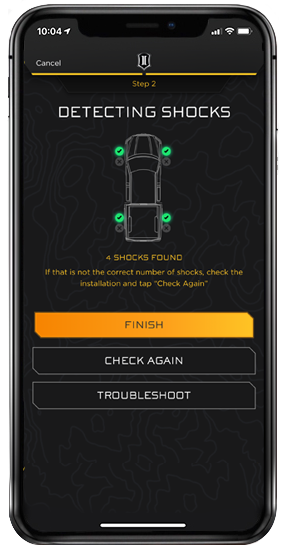

xCompression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

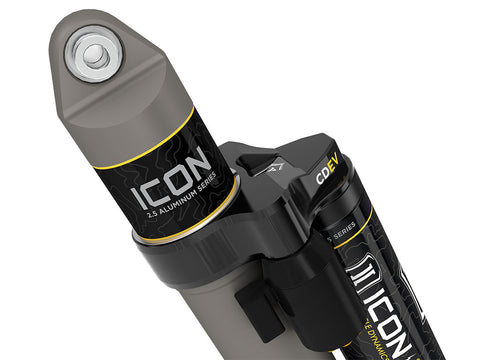

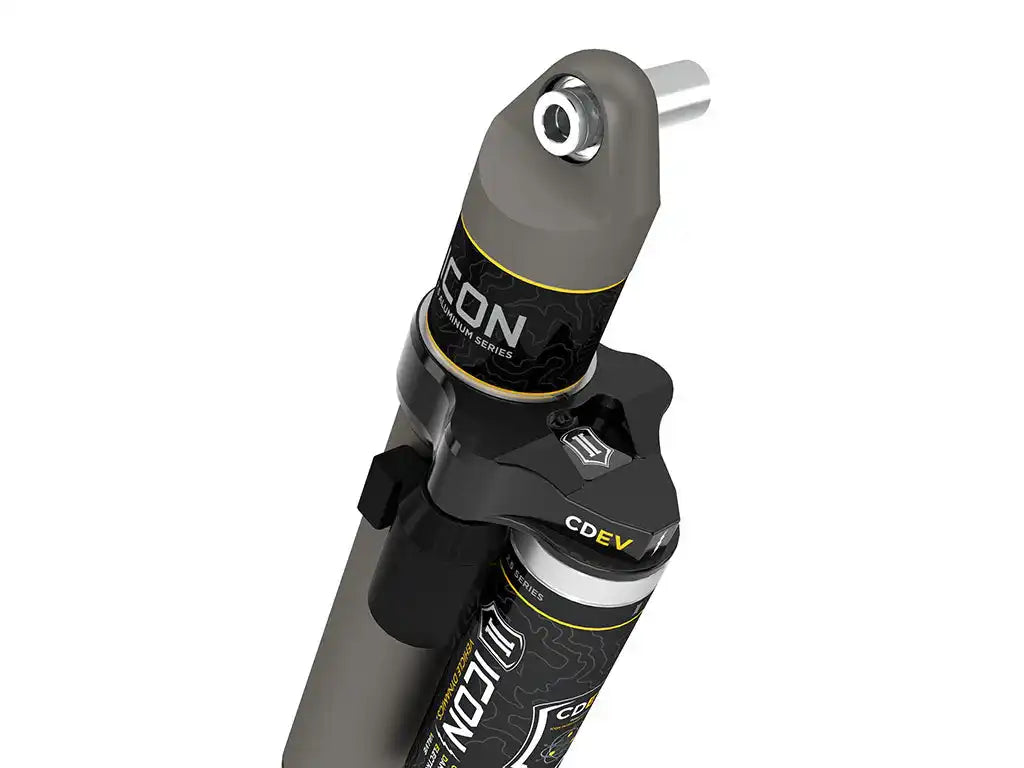

- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- 6061 aircraft grade aluminum CNC machined components
- Protective shin guards standard with every shock
- 100% Rebuildable
- 100% Revalveable
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with piggyback reservoir
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
Attributes:
- GTIN: 00840103411736
- Brand Name: ICON Vehicle Dynamics
- 30: Yes
- 3390: Performance
- 359: 2.5
- 408: Center of Eylet
- 409: Center of Eylet
- 48: Eyelet
- 49: Eyelet
- 50: NO
- 51: Yes
- 905: 2.25
- Add-On Part: 23502 - 18-UP JEEP JL / 20-UP JEEP JT IIC INSTALL KIT
- Adjustable: Electronically
- Cylinder Color: Grey
- Cylinder Material: Aluminum
- Damping Type: Oil
- External Reservoir: Yes
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875
- Shaft Material: Chrome
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 39.0000 x 15.0000 x 8.0000 inches
- Weight: 25.0000 lb
