BDS Suspension BDS1532FS - 2017-2020 F150 4wd 6-4 Lift System

Vendor: BDS Suspension
SKU: BLDV_BDS1532FS
Availability: Out of stock. Chat\Call to Order
Product Type: Suspension Lift Kit
$2,270.00 USD
$2,340.00
$2,270.00 USD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint: Truck Accessories - Car Parts - Canadian Auto Parts
Description
Description
x

BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Take your 2015-2020 Ford F150 4WD truck to new heights with a 6-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits

  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 18 x 9 and 5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5.5 in. Backspace

Rear Lift Option

5 Inch Block Kit

  • Level to tail high appearance

4 Inch Block Kit

  • Tail low to level stance

Rear Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

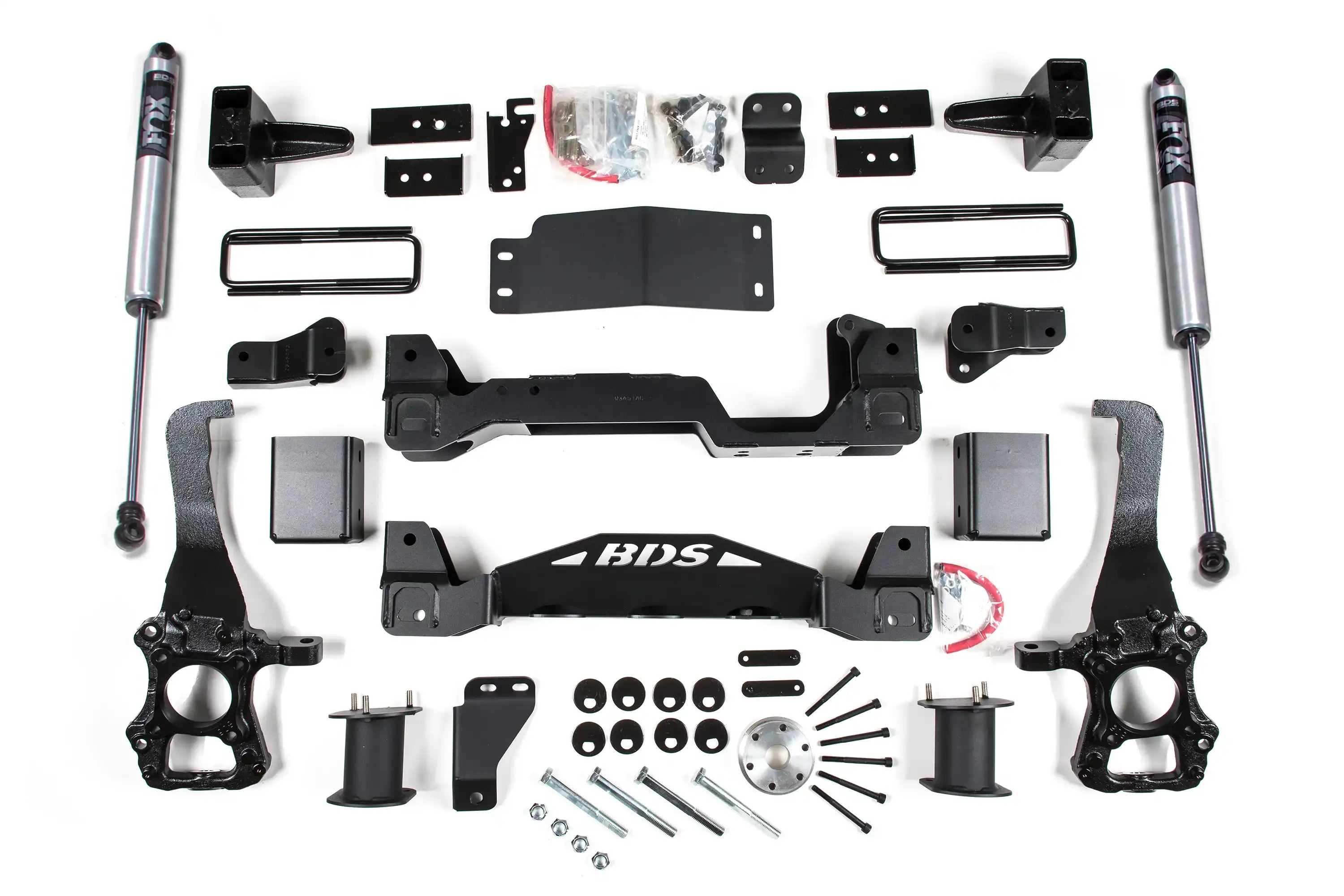

Kit Component

1 BDS013539 2015-2020 Ford F150 Rear Box Kit
1 BDS023605 2014-15 F150 6in Spacer Box Kit
1 BDS023634 2015-2020 Ford F150 Knuckle Box Kit - DS
1 BDS023635 2015-2020 Ford F150 Knuckle Box Kit - PS
1 BDS023650 2015-2020 Ford F150 Front Box Kit (1of2)
1 BDS023651 2015-2020 Ford F150 Front Box Kit (2of2)
2 FOX98224760 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1


Specifications:

Description_ASC 18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.
Description_ASC 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
Description_ASC E-brake bracket required for factory powersteps (123018)
Description_ASC Block kits replace factory 1-1/4" block.
Description_ASC Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
Description_ASC Will not fit HD models (7 lug).
Description_DES 2017-2020 F150 4wd 6/4 Lift System
Description_EXT 2017-2020 F150 4wd 6-4 Lift System
Description_FAB High clearance crossmembers improve strength and offroad capability
Description_FAB Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
Description_FAB Top mounted strut spacers to provide lift and install easily
Description_FAB Differential skid plate for improved offroad protection
Description_FAB Rear lift blocks and u-bolts to lift and level the stance
Description_FAB Standard NX2 Nitro shocks with vehicle-specific valving for better control
Description_FAB Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Description_MKT Take your 2015-2020 Ford F150 4WD truck to new heights with a 6-inch suspension lift kit by BDS. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
Description_MKT This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers top mounted strut spacers multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets brake line brackets alignment cam bolts supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
Description_MKT In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.
Description_MKT High Clearance Crossmemebers
Description_MKT BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Description_MKT Heavy Duty Steering Knuckles
Description_MKT BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Description_SHO Suspension lift kit
Description_DEF Suspension Lift Kit
