- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
BDS Suspension BDS1532H - 2017-2020 F150 4wd 6-4 Lift System
Vendor:
BDS Suspension
SKU:
BLDV_BDS1532H
Availability:
5
In Stock
Product Type:
Suspension Lift Kit
- Regular price
- $2,030.00 USD
- Regular price
-
$2,075.00 - Sale price
- $2,030.00 USD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description
xBDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Take your 2015-2020 Ford F150 4WD truck to new heights with a 6-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.
High Clearance Crossmemebers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features & Benefits
Recommended Tires & Wheels
(Trimming may be required)
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5.5 in. Backspace
Rear Lift Option
5 Inch Block Kit
- Level to tail high appearance
4 Inch Block Kit
- Tail low to level stance
Rear Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish

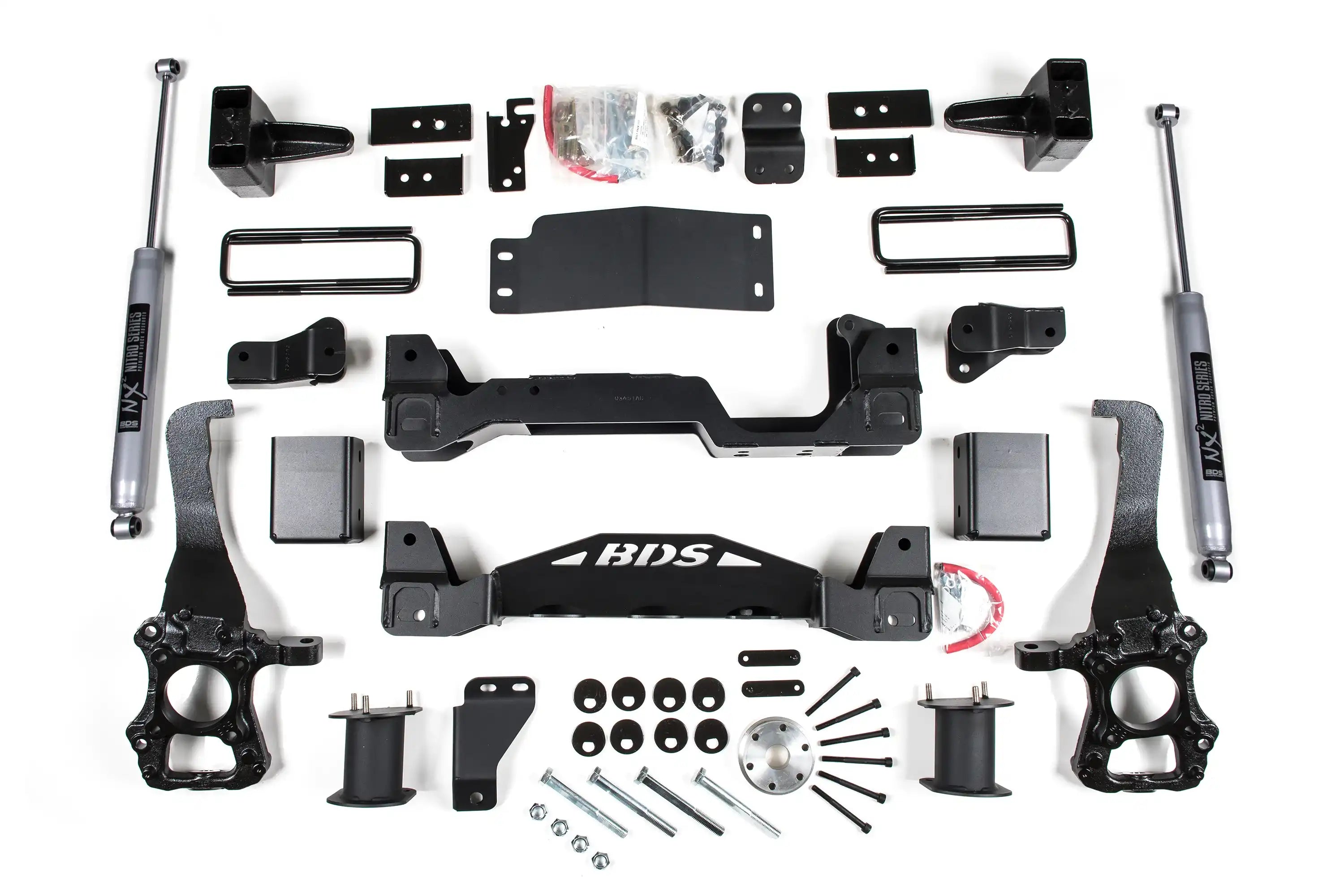

Kit Component List
| 1 | BDS013539 | 2015-2020 Ford F150 Rear Box Kit | |
|---|---|---|---|
| 1 | BDS023605 | 2014-15 F150 6in Spacer Box Kit | |
| 1 | BDS023634 | 2015-2020 Ford F150 Knuckle Box Kit - DS | |
| 1 | BDS023635 | 2015-2020 Ford F150 Knuckle Box Kit - PS | |
| 1 | BDS023650 | 2015-2020 Ford F150 Front Box Kit (1of2) | |
| 1 | BDS023651 | 2015-2020 Ford F150 Front Box Kit (2of2) | |
| 2 | BDS85760 | Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 |
Specifications:
| Description_ASC | 18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle. |
| Description_ASC | 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires. |
| Description_ASC | E-brake bracket required for factory powersteps (123018) |
| Description_ASC | Block kits replace factory 1-1/4" block. |
| Description_ASC | Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406 |
| Description_ASC | Will not fit HD models (7 lug). |
| Description_DES | 2017-2020 F150 4wd 6/4 Lift System |
| Description_EXT | 2017-2020 F150 4wd 6-4 Lift System |
| Description_FAB | High clearance crossmembers improve strength and offroad capability |
| Description_FAB | Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility |
| Description_FAB | Top mounted strut spacers to provide lift and install easily |
| Description_FAB | Differential skid plate for improved offroad protection |
| Description_FAB | Rear lift blocks and u-bolts to lift and level the stance |
| Description_FAB | Standard NX2 Nitro shocks with vehicle-specific valving for better control |
| Description_FAB | Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road |
| Description_MKT | Take your 2015-2020 Ford F150 4WD truck to new heights with a 6-inch suspension lift kit by BDS. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. |
| Description_MKT | This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers top mounted strut spacers multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets brake line brackets alignment cam bolts supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. |
| Description_MKT | In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks. |
| Description_MKT | High Clearance Crossmemebers |
| Description_MKT | BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. |
| Description_MKT | Heavy Duty Steering Knuckles |
| Description_MKT | BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility. |
| Description_SHO | Suspension lift kit |
| Description_DEF | Suspension Lift Kit |
