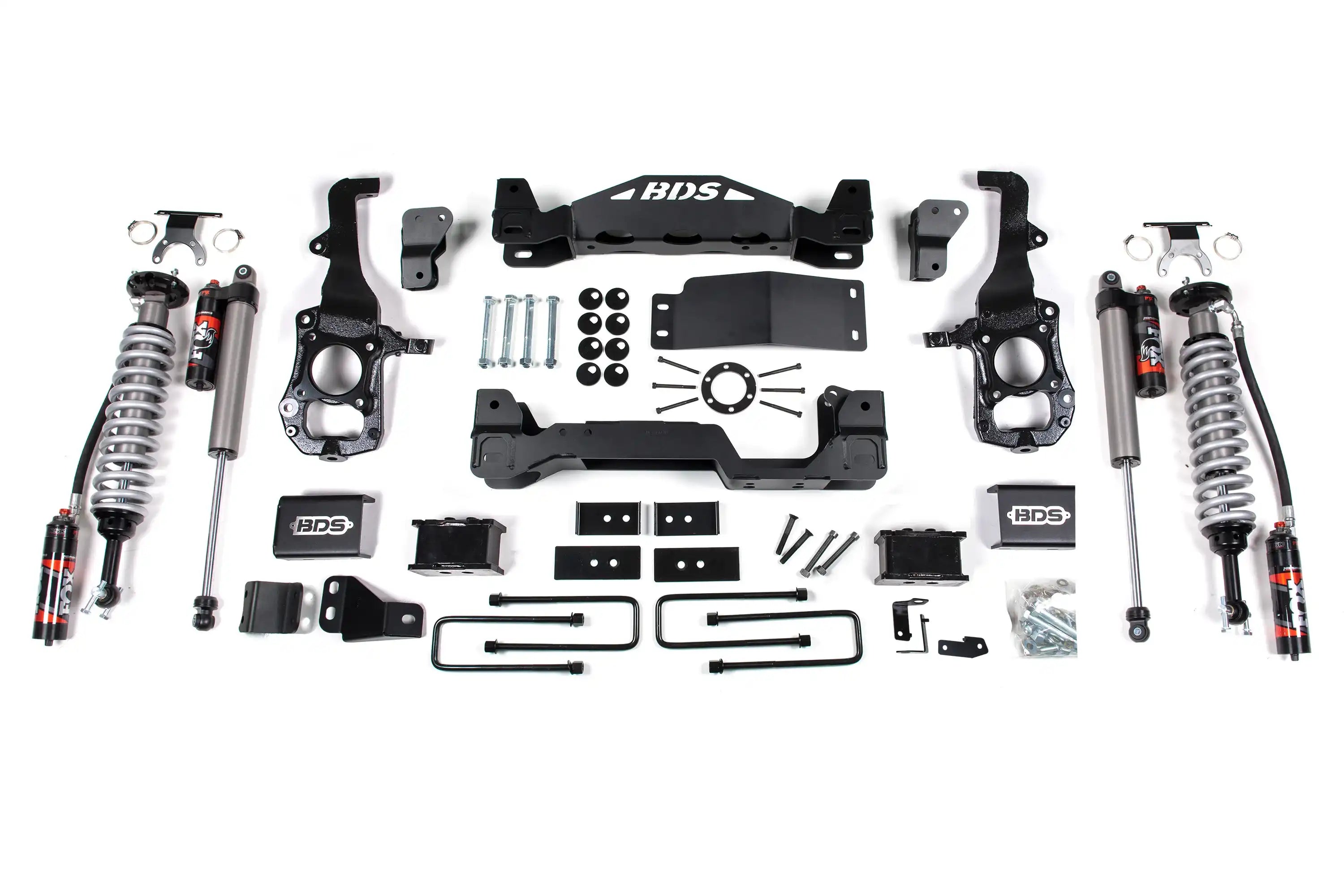

BDS Suspension BDS1584FPE - 2021-2022 Ford F150 4wd 4in. Lift Kit
Vendor:
BDS Suspension
SKU:
BLDV_BDS1584FPE
Availability:
Out of stock. Chat\Call to Order
Product Type:
Suspension Lift Kit
- Regular price
- $5,822.00 USD
- Regular price
-
$5,472.00 - Sale price
- $5,822.00 USD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description
xBDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Specifications:
| Description_ASC | 18" or larger diameter wheels are required. Stock 17" and 18" wheels cannot be re-installed. Stock 20" wheels can be used with up to a 305/60R20 tire. |
| Description_ASC | Will not work with models with CCD (Continuous Controlled Damping) |
| Description_ASC | 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 5.5" backspacing is highly recommended for tire-to-frame crash bar clearance. |
| Description_ASC | Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included w/ kit) |
| Description_ASC | Block kits replace factory 1-1/4" block. The stock block will not be reinstalled. |
| Description_ASC | Crash bars may require modification based on wheel and tire choice. It is the end user's responsibility to ensure modifications are non-detrimental to vehicle safety. |
| Description_ASC | Does NOT fit diesel models. |
| Description_ASC | Will not work with Tremor models. |
| Description_ASC | Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure BDS recommends having this performed prior to installing the lift. |
| Description_ASC | This system has not been tested on models equipped with Ford BlueCruise. |
| Description_DES | 2021-2022 Ford F150 4wd 4in. Suspension Lift Kit |
| Description_EXT | 2021-2022 Ford F150 4wd 4in. Suspension Lift Kit| 3in. rear block - Fox 2.5 PES coilover| Fox 2.5 PES rear shocks |
| Description_FAB | FOX 2.5 coil-over shocks designed specifically for increase travel and the ability to soak up the roughest terrain |
| Description_FAB | DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs |
| Description_FAB | High clearance crossmembers improve strength and offroad capability |
| Description_FAB | Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility |
| Description_FAB | Top mounted strut spacers to provide lift and install easily |
| Description_FAB | Differential skid plate for improved offroad protection |
| Description_FAB | Rear lift blocks and u-bolts to lift and level the stance |
| Description_MKT | Maximize the performance and capability of the 2021 Ford F150 trucks with 4-inch coil-over suspension lift kits. These kits feature proprietary FOX Performance Elite 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. This kit includes everything necessary to set your F150 truck up right with clearance for up to 35" tires. |
| Description_MKT | This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.5 remote reservoir coil-over shocks high-arched 1/4-inch thick steel crossmembers multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets brake line brackets alignment cam bolts supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. |
| Description_MKT | In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along with perfectly tuned FOX 2.0 Performance Series shocks. |
| Description_MKT | FOX Performance Elite |
| Description_MKT | FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs offering 10 separate low-speed and 12 high-speed compression levels with a black anodized aluminum reservoir to increase cooling efficiency. |
| Description_MKT | High Clearance Crossmemebers |
| Description_MKT | BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. |
| Description_MKT | Heavy Duty Steering Knuckles |
| Description_MKT | BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility. |
| Description_SHO | Suspension lift kit |
| Description_DEF | Suspension Lift Kit |
