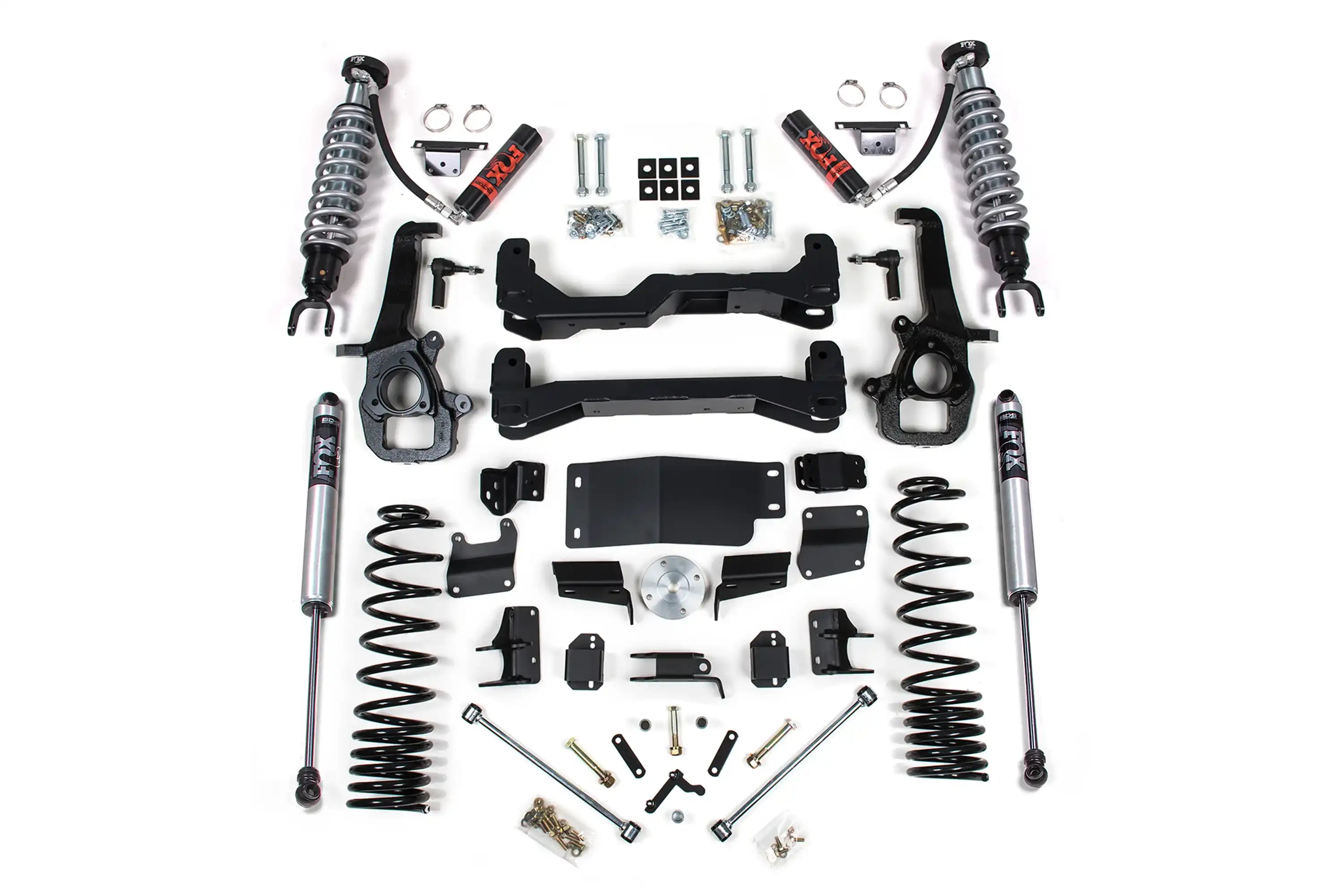

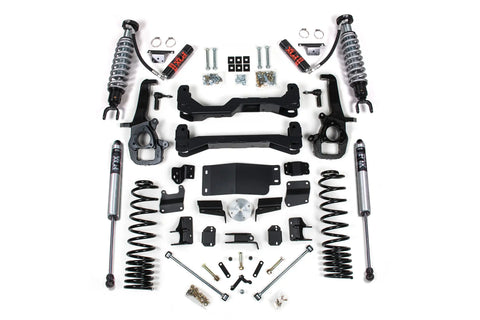

BDS Suspension BDS1661F - 2019-2022 Dodge 1500 4wd 6in. Coilover System
Vendor:
BDS Suspension
SKU:
BLDV_BDS1661F
Availability:
3
In Stock
Product Type:
Suspension Lift Kit
- Regular price
- $4,584.00 USD
- Regular price
-
$4,369.00 - Sale price
- $4,584.00 USD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
* Images may differ from actual product.
Description
xBDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Specifications:
| Description_ASC | Fits 4WD models only |
| Description_ASC | RAMs with factory 22" wheels require larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ. |
| Description_ASC | Will NOT fit adjustable "air ride" suspension equipped models. |
| Description_ASC | 1/2" front high with the preload spacer installed. If the preload spacer isn't installed the truck will sit about 3/8" now low. |
| Description_ASC | Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size |
| Description_ASC | Will NOT work on diesel models |
| Description_ASC | Will NOT fit 2019-2022 RAM 1500 Classic models Refer to the 2018 kit listings. |
| Description_ASC | Vehicles equipped with Offroad or Rebel Package will not achieve the full 6" of lift net ride height change will be around 5" above stock. |
| Description_ASC | Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check the diff cover for cooling lines. |
| Description_DES | 2019-2022 Dodge 1500 4wd 6in. Coilover Suspension System |
| Description_EXT | 2019-2022 Dodge 1500 4wd 6in. Coilover Suspension System |
| Description_FAB | FOX 2.5 Factory Race series coilovers for improved ride quality performance and capability |
| Description_FAB | High clearance crossmember design maximizes ground clearance |
| Description_FAB | Robust steering knuckles maintain ESC system compliance |
| Description_FAB | HD skid plate system improved offroad protection |
| Description_FAB | Multipoint differential relocation brackets to secure the front axle and improve CV angles |
| Description_FAB | FOX performance series IFP gas rear shocks to improved ride and offroad performance |
| Description_FAB | Factory Protection Plus drivetrain warranty included |
| Description_MKT | Hit the trails in your 2019-2023 RAM 1500 truck after installing a 6-inch coil-over suspension lift kit by BDS Suspension. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 37" tires |
| Description_MKT | This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes top mounted strut spacers high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops bump stop extensions stainless steel braided brake lines CV spacers supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. |
| Description_MKT | In the rear this kit utilizes progressive rate Pro-Ride coil springs rear upper control arm relocation brackets to correct pinion angle track bar relocation bracket to correct axle positioning bump stop extensions and sway bar links. The rear of these kits are rounded out with a set of FOX 2.0 IFP performance series gas shocks to offer improved damper performance. |
| Description_MKT | FOX 2.5 Coil-Overs |
| Description_MKT | FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. |
| Description_MKT | DSC Adjustment |
| Description_MKT | FOX 2.5 coil-overs are available with optional DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain. |
| Description_MKT | High Clearance Crossmembers |
| Description_MKT | BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. |
| Description_SHO | Suspension lift kit |
| Description_DEF | Suspension Lift Kit |
Vehicle Fitment
