BDS Suspension BDS1663H - 2019-2022 Ram 1500 4wd 4in. front shocks| 3in. rear block NX2
Vendor:
BDS Suspension
SKU:
BLDV_BDS1663H
Availability:
4
In Stock
Product Type:
Suspension Lift Kit
- Regular price
- $2,114.00 USD
- Regular price
-
$2,191.00 - Sale price
- $2,114.00 USD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
* Images may differ from actual product.
Description
xProduct Description

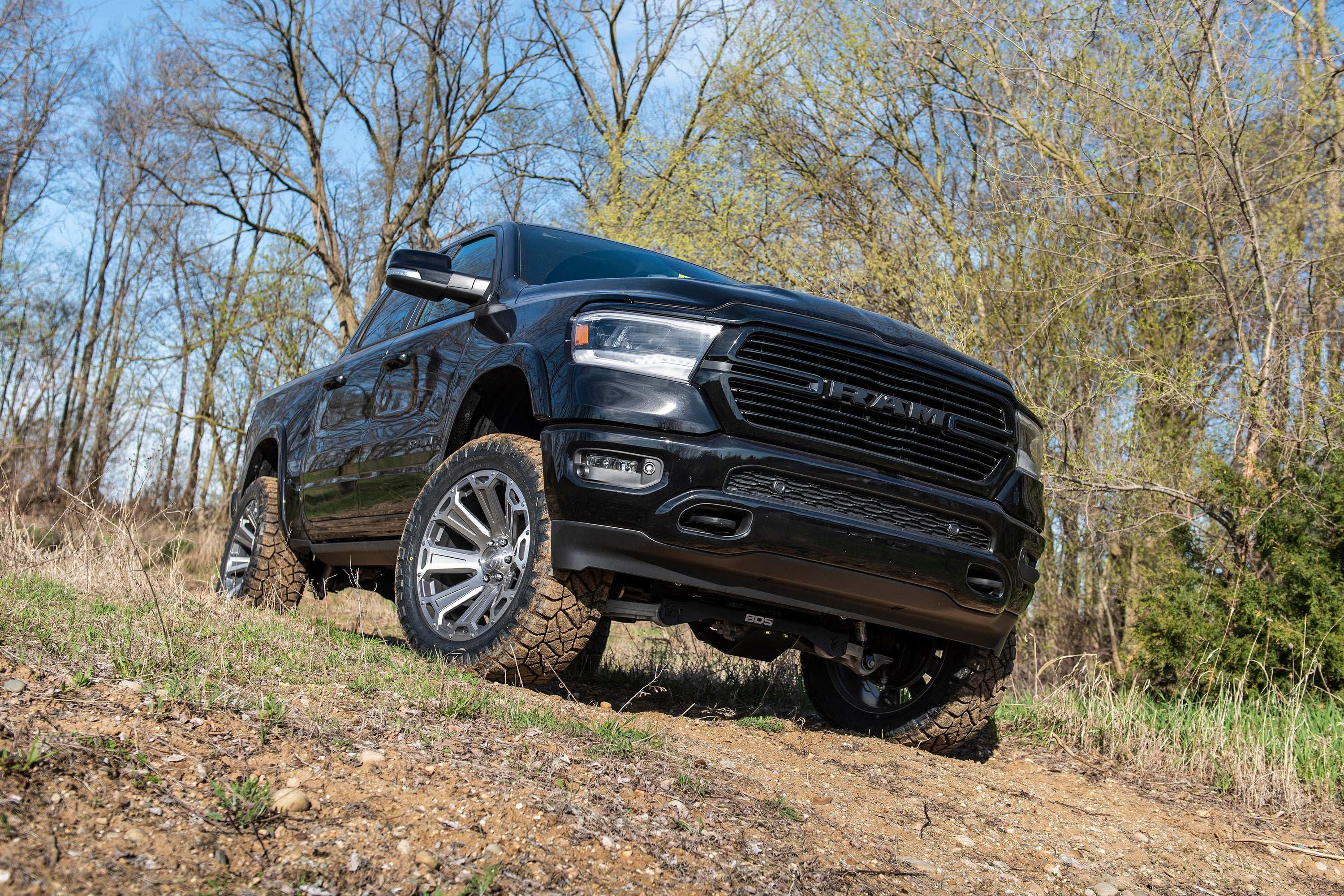

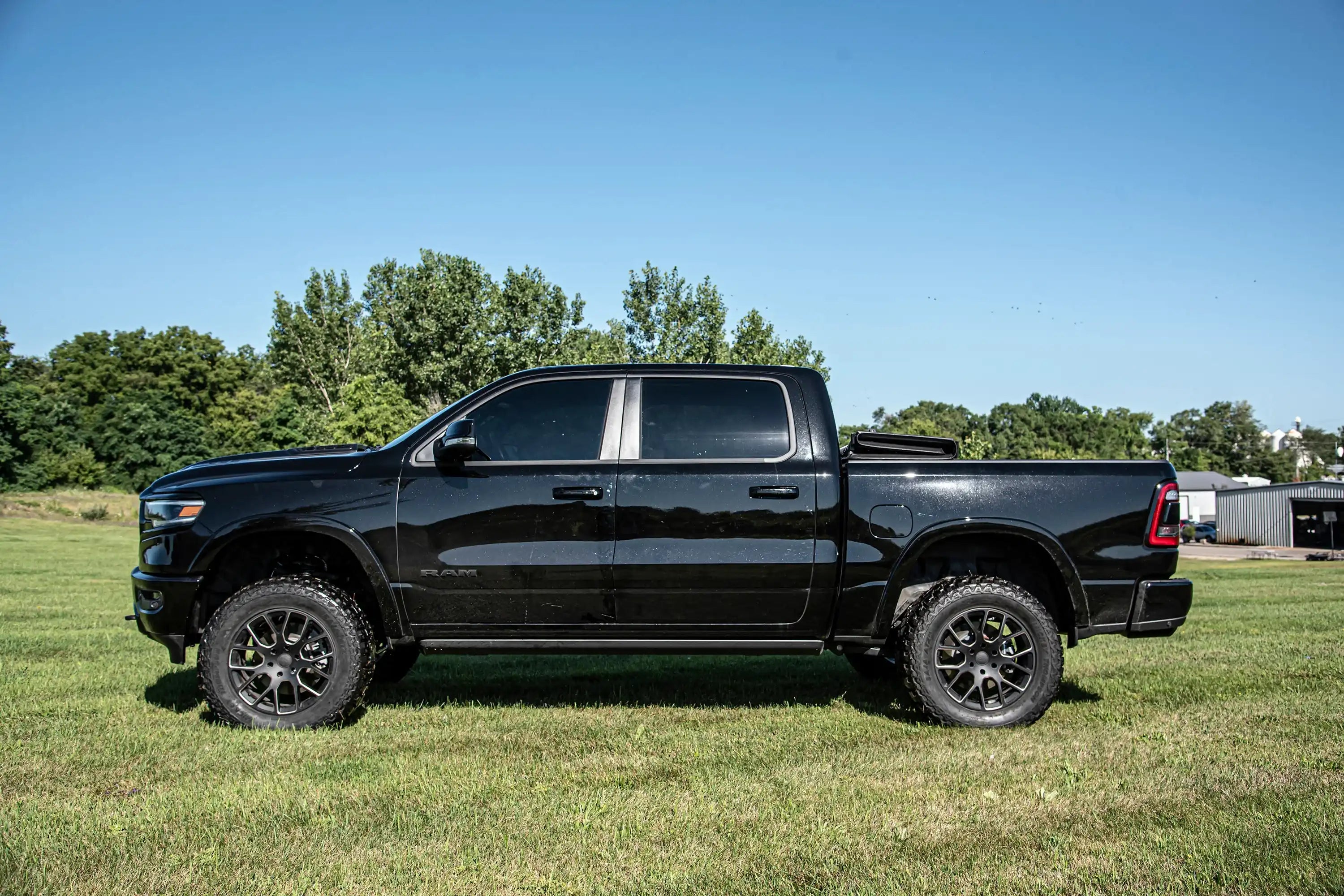

Take your 2019-2024 Ram 1500 4WD to the next level with the BDS 4-Inch Suspension Lift Kit. Engineered to improve stance, off-road capability, and overall performance, this comprehensive lift system provides clearance for up to 35-inch tires while maintaining excellent on-road handling and ESC compatibility.
Built around BDS’s proven high-clearance design, the kit features heavy-duty crossmembers, differential relocation brackets, skid plates, and CNC-machined ductile cast iron steering knuckles to correct suspension and steering geometry at the new ride height. Replacement tie rod ends help maintain proper steering angles and electronic stability control functionality, while stainless steel braided brake lines, CV spacers, sway bar drops, and bump stop extensions complete the front suspension system.
In the rear, progressive-rate Pro-Ride coil springs, upper control arm relocation brackets, track bar relocation brackets, sway bar links, and bump stop extensions work together to improve ride quality, maintain axle alignment, and correct pinion angle. This configuration includes specially tuned NX2 Nitro Series gas shocks for enhanced ride comfort and off-road performance.
Features & Benefits
- High-clearance crossmember design maximizes ground clearance
- CNC-machined ductile cast iron steering knuckles maintain proper steering geometry
- Maintains ESC system compatibility
- Heavy-duty skid plate system improves underbody protection
- Multipoint differential relocation brackets improve CV axle angles
- Progressive-rate Pro-Ride rear coil springs enhance ride quality
- Stainless steel braided brake lines included
- Includes NX2 Nitro Series gas shocks for improved damping performance
- Allows clearance for up to 35-inch tires
- Factory Protection Plus drivetrain warranty included
Attributes
- Product Type: Suspension Lift Kit
- Lift Height: 4 Inches Front / 3 Inches Rear
- Drive Type: 4WD
- Shock Type: NX2 Nitro Series Gas Shocks

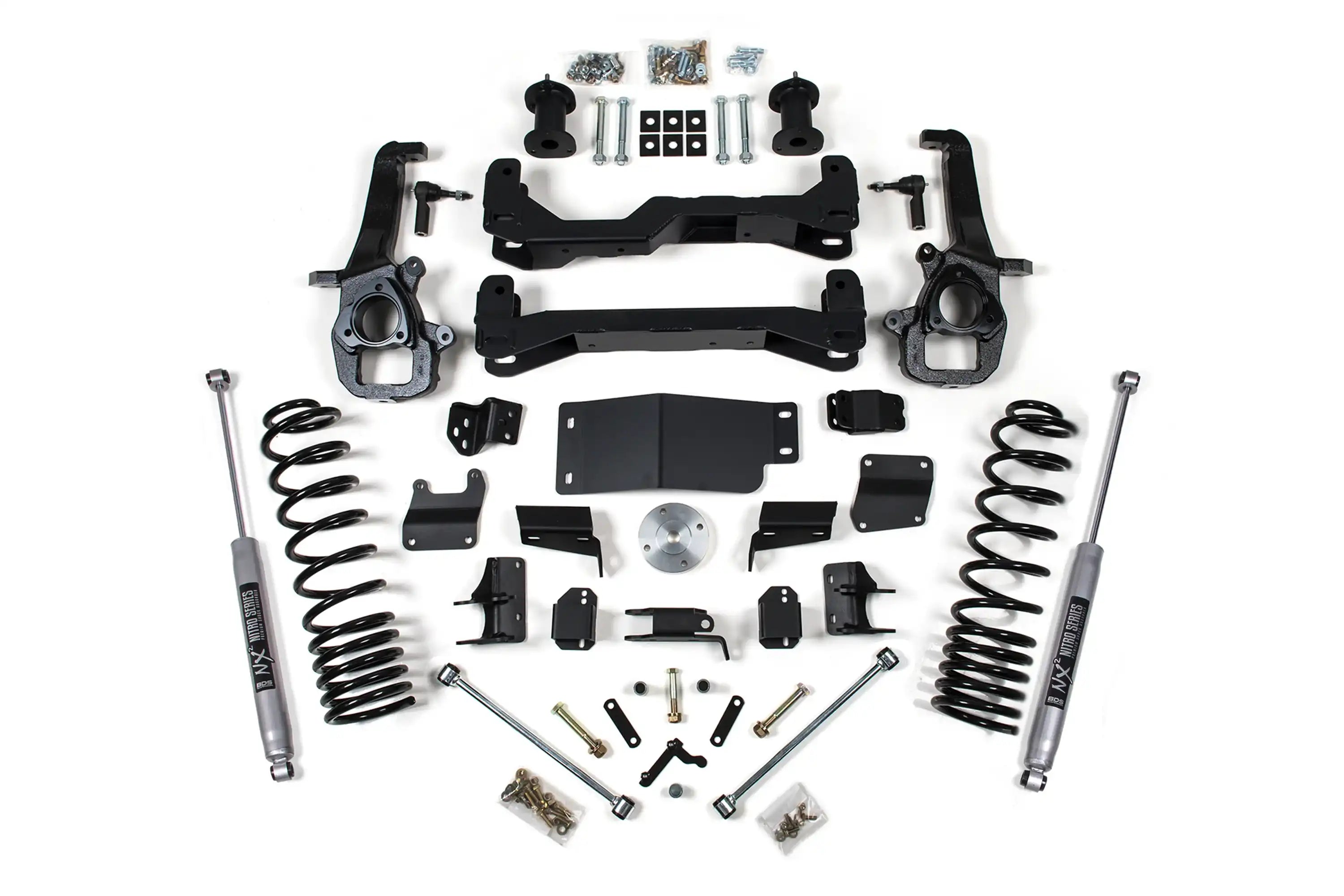

- Front Components: Strut Spacers, Steering Knuckles, Crossmembers, Differential Relocation Brackets, Skid Plates, CV Spacers, Sway Bar Drops, Brake Lines
- Rear Components: Pro-Ride Coil Springs, Track Bar Relocation Bracket, Upper Control Arm Relocation Brackets, Sway Bar Links, Bump Stop Extensions
- Maximum Tire Size: 35 x 12.50
- Steering Correction: Replacement Tie Rod Ends and CNC-Machined Steering Knuckles
- Warranty: Factory Protection Plus Drivetrain Warranty
Notes
- Fits 2019-2024 Ram 1500 4WD models only
- Will not fit diesel models
- Will not fit adjustable air ride suspension equipped models
- Will not fit 2019-2022 Ram 1500 Classic models
- Will not fit models equipped with the Thermal Axle option (Build Code DSK-P)
- Vehicles equipped with the Off-Road Group Package require the Ram 1500 Rebel 4-inch lift kit
- Ram models with factory 22-inch wheels require larger bore steering knuckles (Build Codes WPM or WPZ)
- Factory 18-inch wheels cannot be reinstalled due to steering interference
- Factory 20-inch wheels can be reused with factory tire size
- Test fit 18-inch aftermarket wheels before mounting tires when using maximum recommended backspacing
- Minor trimming may be required depending on wheel and tire combination
Recommended Tire & Wheel Combinations
- 35 x 12.50 Tire with 18 x 9 Wheel and 5-Inch Backspacing
- 35 x 12.50 Tire with 20 x 9 Wheel and 5-Inch Backspacing
Specifications:
| Description_ASC | Fits 4WD models only |
| Description_ASC | RAMs with factory 22" wheels require larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ. |
| Description_ASC | Will NOT fit adjustable "air ride" suspension equipped models. |
| Description_ASC | Vehicles equipped with the Off-Road Group Package require the Ram 1500 Rebel 4in kit to achieve correct ride height. To find out if your truck is equipped with the Off-Road Group call your local Ram dealer provide your VIN and ask if they can pull your window sticker. In the 'Optional Equipment' section there will be a line item that reads 'Off-Road Group' if your truck is equipped. |
| Description_ASC | Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size |
| Description_ASC | Will NOT work on diesel models |
| Description_ASC | Will NOT fit 2019-2022 RAM 1500 Classic models Refer to the 2018 kit listings. |
| Description_ASC | Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check the diff cover for cooling lines. |
| Description_DES | 2019-2022 Ram 1500 4wd 4in. front shocks| - NX2 |
| Description_EXT | 2019-2022 Ram 1500 4wd 4in. front shocks| 3in. rear block - NX2 |
| Description_FAB | High clearance crossmember design maximizes ground clearance |
| Description_FAB | Robust steering knuckles maintain ESC system compliance |
| Description_FAB | HD skid plate system improved offroad protection |
| Description_FAB | Multipoint differential relocation brackets to secure the front axle and improve CV angles |
| Description_FAB | BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance |
| Description_FAB | Factory Protection Plus drivetrain warranty included |
| Description_MKT | BDS steps up the performance and capability of the 2019-2023 RAM 1500 trucks with a 4-inch suspension lift kit. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 35" tires |
| Description_MKT | This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes top mounted strut spacers high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops bump stop extensions stainless steel braided brake lines CV spacers supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. |
| Description_MKT | In the rear this kit utilizes progressive rate Pro-Ride coil springs rear upper control arm relocation brackets to correct pinion angle track bar relocation bracket to correct axle positioning bump stop extensions and sway bar links. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance. |
| Description_MKT | High Clearance Crossmembers |
| Description_MKT | BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. |
| Description_MKT | Heavy Duty Steering Knuckles |
| Description_MKT | BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility. |
| Description_SHO | Suspension lift kit |
| Description_DEF | Suspension Lift Kit |
