- 35 x 12.5 with 20 x 9 and 5.75 in. Backspace
- 295 / 60 with 20 x 9 and 5.75 in. Backspace
- 285 / 65 with 20 x 9 and 6.18 in. Backspace
BDS Suspension BDS761FS - 2020-2023 Chevy-GMC 2500-3500 HD 3In with Overloads Fox 2.0
Vendor:
BDS Suspension
SKU:
BLDV_BDS761FS
Availability:
11
In Stock
Product Type:
Suspension Lift Kit
- Regular price
- $2,042.00 USD
- Regular price
-
$1,804.00 - Sale price
- $2,042.00 USD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description
xProduct Description
Level and enhance your 2020–2024 Chevy Silverado or GMC Sierra 2500 HD 4WD with this premium 3-inch leveling lift kit from BDS Suspension featuring FOX 2.0 IFP Performance Series shocks. Designed for improved stance, ride quality, and off-road capability, this kit delivers increased suspension travel, corrected geometry, and clearance for up to 35-inch tires. Heavy-duty tubular upper control arms, indexed torsion bar keys, differential relocation, and rear lift blocks ensure durability, performance, and a properly balanced ride both on and off the road.
Features & Benefits
- FOX 2.0 Performance Series IFP shocks improve damping performance and heat control.
- Heavy-duty tubular upper control arms increase strength and suspension travel.
- Indexed ball joint cups correct ball joint angle for improved down travel and camber adjustment.
- High-strength cast torsion bar keys provide additional front ride height.
- Differential relocation brackets improve CV axle operating angles.
- Sway bar relocation brackets maintain proper sway bar clearance and geometry.
- Rear lift block and u-bolt kit levels stance while preserving load capacity.
- Durable black powder coat finish resists corrosion and wear.
- Greaseable ball joints ensure smooth, quiet operation and long service life.
- Designed to clear up to 35-inch tires with proper wheel selection.
Attributes
- Brand: BDS Suspension
- Product Type: Leveling Lift Kit
- Lift Height: 3 Inch
- Vehicle Fitment: 2020–2024 Chevy Silverado 2500 HD / GMC Sierra 2500 HD
- Drive Type: 4WD
- Front Suspension Components: FOX 2.0 IFP Shocks, Tubular Upper Control Arms, Indexed Torsion Bar Keys, Differential Relocation Kit, Sway Bar Relocation Brackets
- Rear Suspension Components: 2-Inch Lift Blocks, U-Bolts, FOX 2.0 IFP Shocks
- Shock Brand: FOX
- Shock Series: 2.0 Performance Series IFP
- Upper Control Arm Material: 1.5” OD x .120-Wall Steel Tubing
- Bushing Type: Durometer-Specific Rubber
- Ball Joints: Greaseable
- Finish: Black Powder Coat
- Max Tire Size: Up to 35 Inch (Trimming May Be Required)
- Rear Overload Compatibility: Available With or Without Top-Mounted Overload Springs
- Installation Notes: Minor trimming may be required for certain wheel and tire combinations
- Special Tool Required: GM Torsion Bar Unloading Tool #CH48809
- Intended Use: On-Road and Off-Road Performance
- Product Category: Suspension Lift Kit
Recommended Tires & Wheels
(Trimming may be required)
Rear Lift Option
Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.

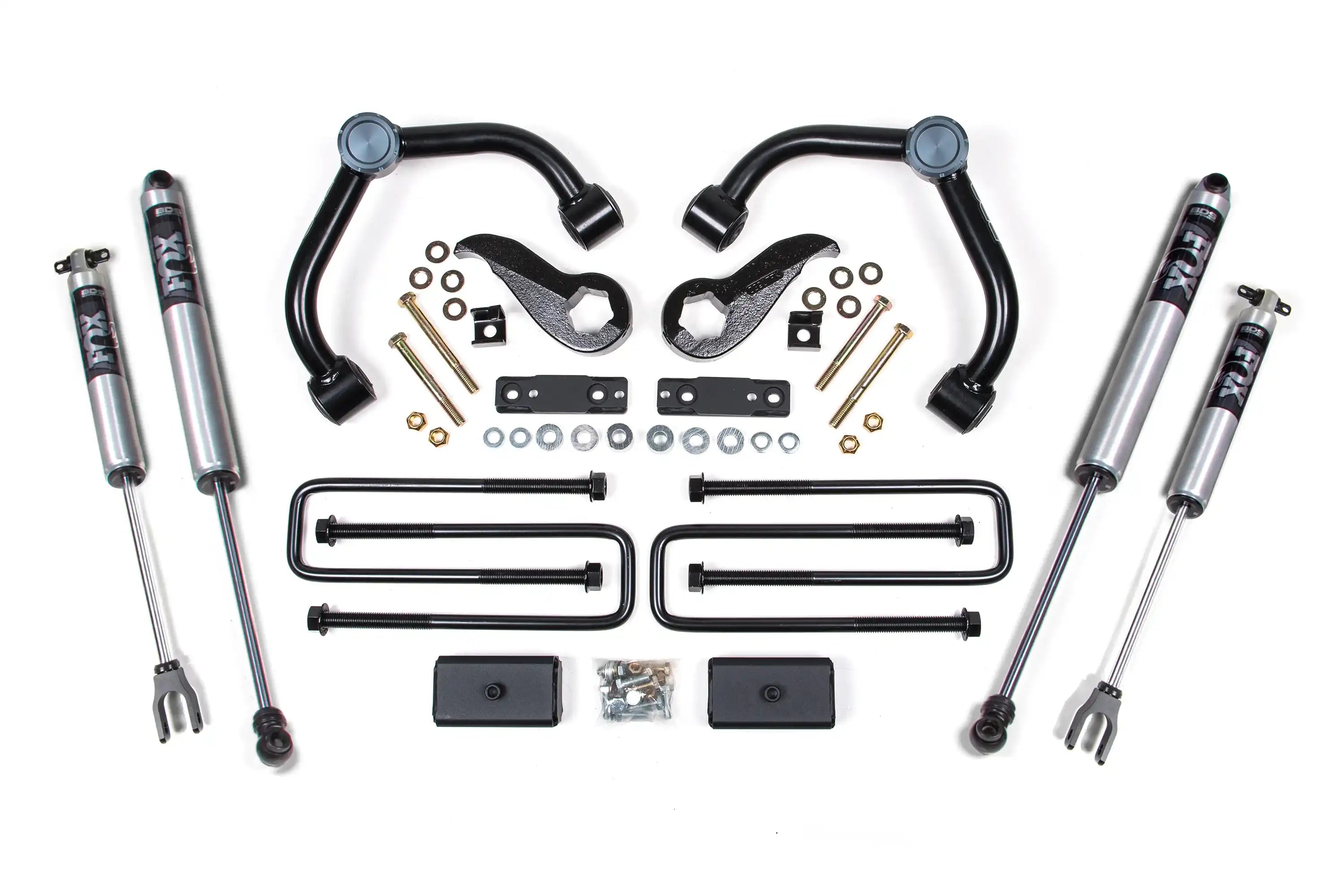

Kit Component List
| 1 | BDS011310 | 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 3" Box Kit | |
|---|---|---|---|
| 1 | BDS011217 | 2011-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 2" Rear Block w/ Overload | |
| 2 | FOX98524240 | 20-ON GM 2500/3500 HD Front w/UCA, PS, 2.0, IFP, 5.6", 1.5-2.5" Lift | |
| 2 | FOX98224758 | Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1 |
Specifications:
| Description_ASC | Disassembly/assembly of the factory torsion bar system requires the use of a special unloading tool. The GM specified tool #CH48809 |
| Description_ASC | Some minor trimming may be necessary to fit certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks and typically consists of trimming the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. As a rule of thumb deeper backspacing and shorter/ narrower tires will reduce/eliminate trimming required. Further trimming tips are included at the end of this instruction sheet |
| Description_DES | 2020-2023 GM 2500/3500 HD 3In with Overloads - Fox 2.0 |
| Description_EXT | 2020-2023 Chevy-GMC 2500-3500 HD 3In with Overloads - Fox 2.0 |
| Description_FAB | FOX 2.0 Performance Series shocks offer improved performance and damper capacity. |
| Description_FAB | Performance UCAs increase strength and allow for more suspension travel |
| Description_FAB | High strength cast torsion bar keys use an indexed design to provide additional ride height. |
| Description_FAB | Sway bar relocation for proper clearance |
| Description_FAB | Differential relocation to improve CV operating angle. |
| Description_FAB | Rear block and u-bolt kit provides lift while maintaining spring function and load capacity |
| Description_MKT | Level out your 2020-2023 Chevy Silverado and GMC Sierra 2500 HD 4WD truck and improve the ride with this 3-inch leveling lift kit featuring FOX 2.0 IFP Performance Series shocks from BDS Suspension. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. |
| Description_MKT | Up front the lift kit includes FOX 2.0 Performance Series IFP shocks and heavy duty tubular upper control arms for increased strength. Along with the control arms a pair of indexed cast steel torsion bar keys are supplied upfront to lift the vehicle and a small differential relocation kit is supplied to correct CV axle operating angles without affecting ground clearance. To eliminate sway bar interference a pair of sway bar relocation brackets is used which maintains proper operating angle. |
| Description_MKT | In the rear a 2" block and u-bolt kit is used to create a level to slightly tail high stance when unloaded. Rounding out these kits are a pair of specially tuned FOX 2.0 performance series IFP shocks ready to soak up the terrain. |
| Description_MKT | FOX 2.0 IFP Shocks |
| Description_MKT | These FOX 2.0 Performance Series monotube shocks step up your vehicles performance and capability 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion along with an internal floating piston (IFP) to eliminate oil aeration in extreme conditions FOX’s proprietary internals 5/8" hard chrome plated heat-treated alloy shaft ready for easy installation. These shocks come precision-tuned for application specific valving for predicable ride quality capable of handling the roughest road conditions. |
| Description_MKT | HD Upper Control Arms |
| Description_MKT | Built for strength performance and increased travel these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box. |
| Description_SHO | Suspension lift kit |
| Description_DEF | Suspension Lift Kit |
