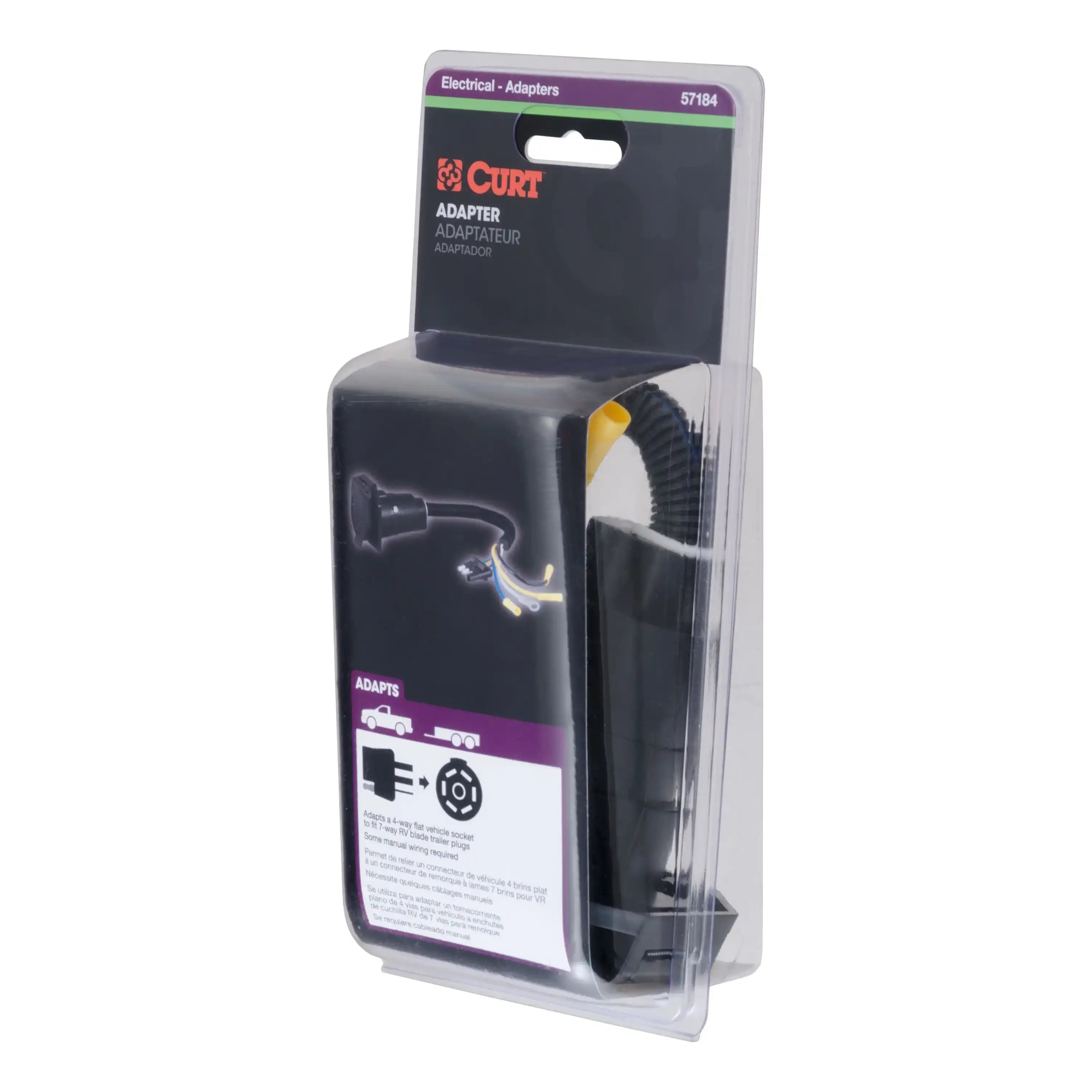

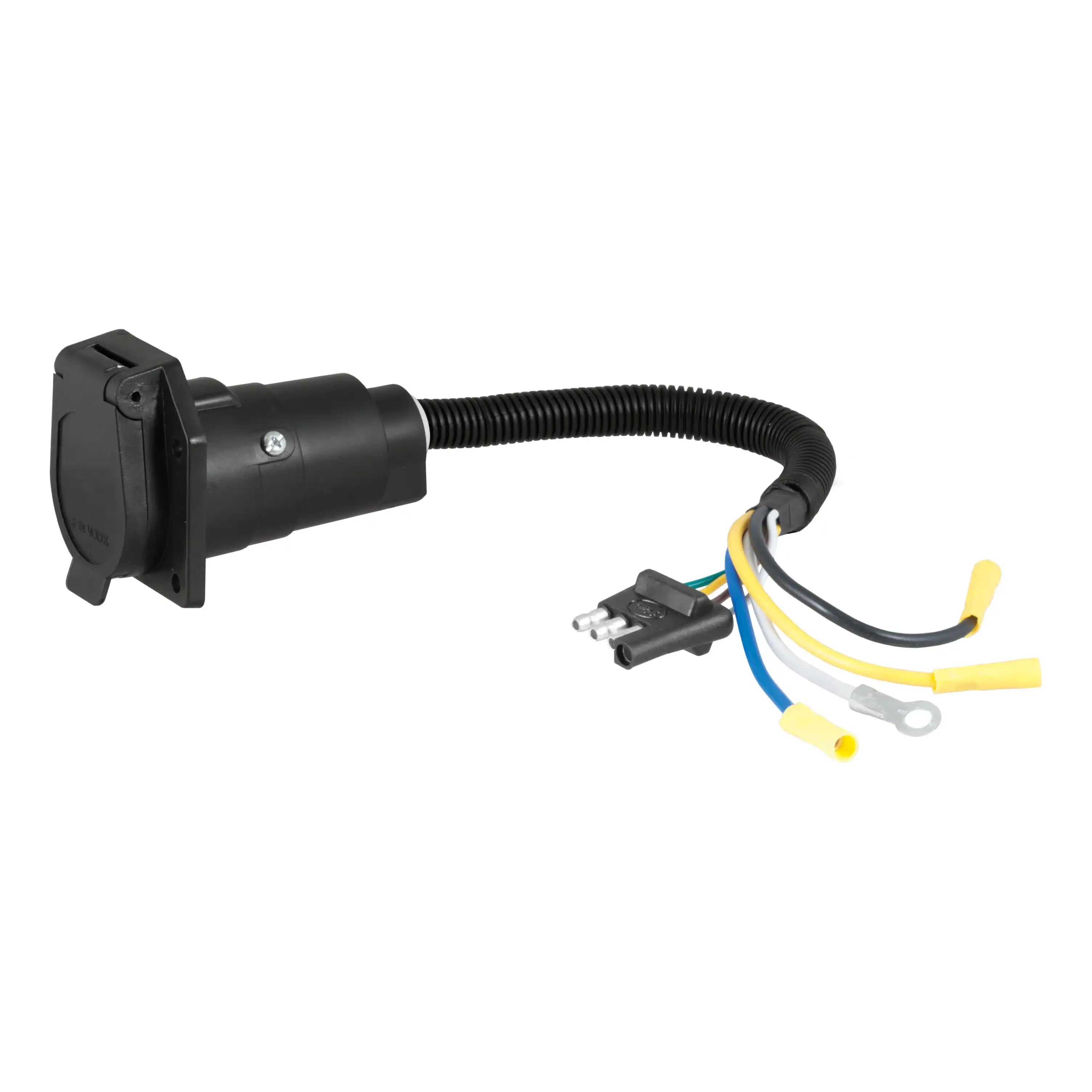

CURT 57184 - 4-Way Flat Vehicle-Side to 7-Way RV Blade Trailer Wiring Adapter

There are several different types of connectors used to supply power from a tow vehicle's electrical system to a trailer's wiring system. Some trailers only need the bare essentials -- running lights, brake lights and turn signals -- while others require a connection for reverse lights, electric brakes and auxiliary power. With connectors ranging from simple to complex, it may be the case that the connection between your vehicle and your trailer is not a perfect match. For example, your truck may be equipped with a 6-way round socket, but your trailer may have a 4-way flat plug. For this very common problem, CURT offers a quick and simple solution in the form of an electrical adapter. An adapter is an electrical device that allows a connection to be made between a mismatched trailer plug and vehicle socket. It easily plugs in your vehicle's electrical socket and usually requires no additional wiring. CURT offers an array of adapters to accommodate most types of plugs and sockets, including 4-way flat, 4-way round, 5-way flat, 6-way round, 7-way RV blades and more. This electrical adapter is designed to adapt a 4-way flat vehicle socket to fit a 7-way RV blade trailer plug. It is constructed from quality plastic and requires some splicing. All CURT wiring and electrical products come with a one-year limited warranty to give you the assurance you need to tow with confidence.

Features & Benefits

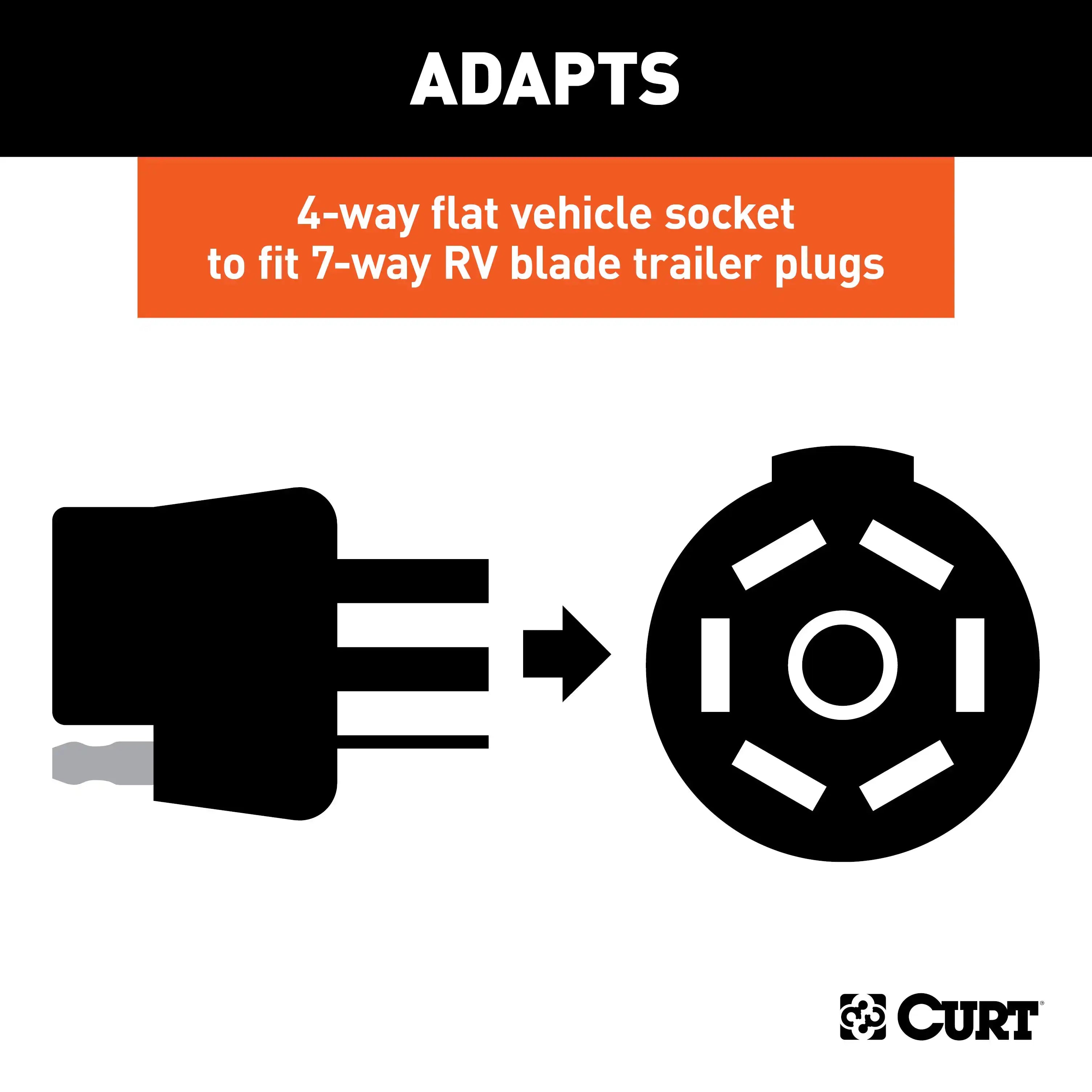

• Adapts A 4-Way Flat Vehicle Socket To Fit 7-Way RV Blade Trailer Plugs
• 7-Way Connects Tail, Brake, Reverse, Turn Signals, Brakes And Auxiliary Power
• Spring-Loaded Dust Cover Keeps Connector Clean When Not In Use
• Slit Loom Keeps Wires Contained And Well Protected
• Limited 1 Year Warranty

Attributes

• End Type: 7 Blade To 4 Flat
• Color: Black
• Material: Plastic

Additional Attributes:

• GTIN: 612314608041
• Tariff 301 - XA: No
• Retail Width - XA: 4.000
• Retail Length - XA: 9.000
• Item Class - XA: OBS
• Rate Class - XA: 70.0
• Item Width - XA: 0.000
• Warranty: One-Year Limited Warranty
• Item Height - XA: 0.000
• Box Width in Inches - XA: 4
• Class ID: 0
• Shipping Weight - XA: 0.800
• Product Weight - XA: 0.000
• Finish - XA: N/A
• Box Length in Inches - XA: 7
• Parcel Allowed - XA: Yes
• Retail Height - XA: 3.000
• Item Length - XA: 0.000
• Box Height in Inches - XA: 2

Packaging:

• Quantity of Each: 1
• Package UOM: EA

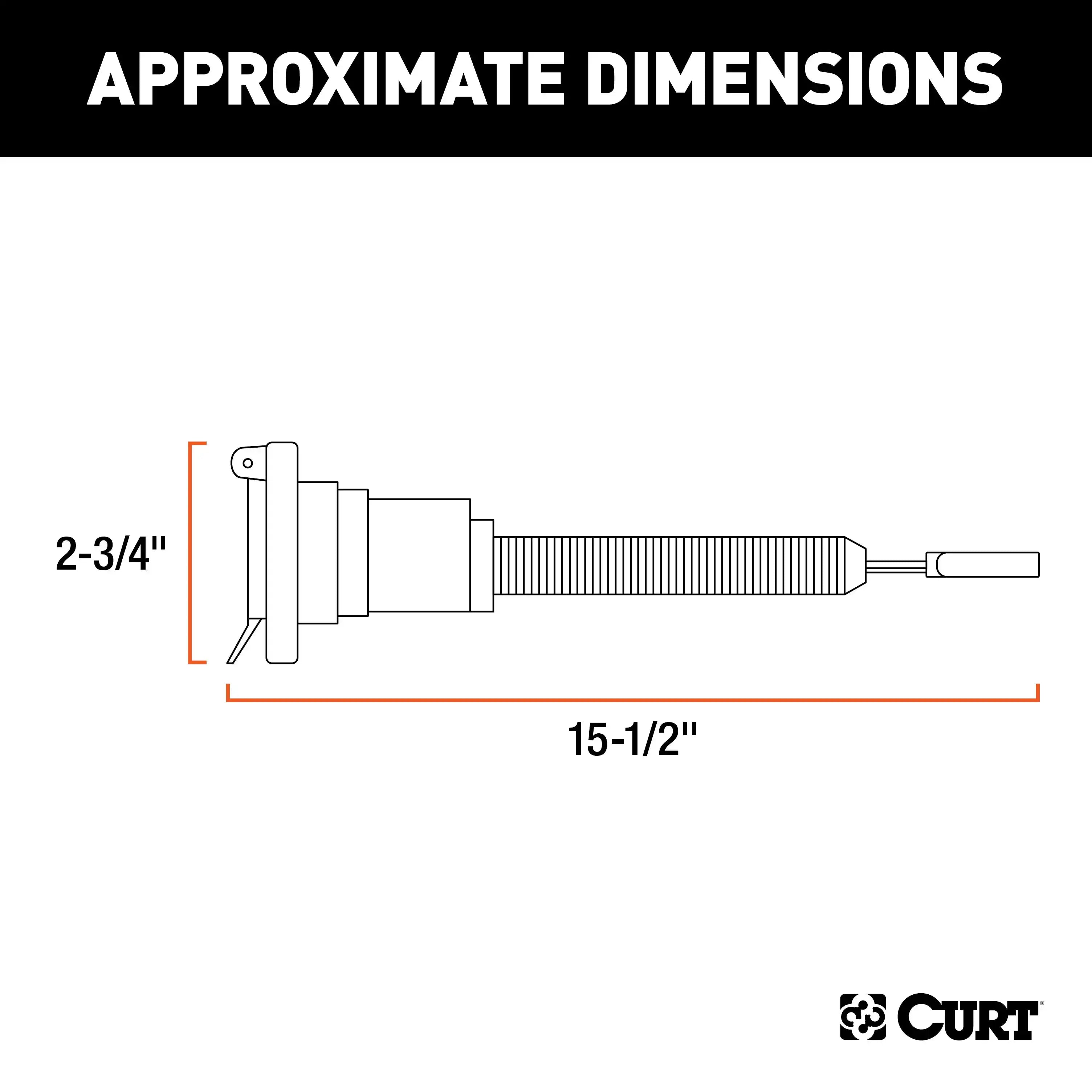

• Dimension: 9.000 x 4.000 x 3.000 inches
