Diode Dynamics DD5163P High-performance OEM-grade replacement with custom-engineered optics.
- Regular price
- $268.00 USD
- Regular price
-
$315.00 - Sale price
- $268.00 USD
- Unit price
- per
Take 10% off select products at checkout.
Couldn't load pickup availability
* Images may differ from actual product.
Description
xProduct Description
Factory fog lights are built to meet minimum output requirements. Every aftermarket design available provides similar lackluster performance, but with an LED. The focus has been on LED appearance, not increased output. There has never been an aftermarket fog light designed from the ground up for performance - until now. Introducing the Elite Series Fog Lamps: the first OE-style fog lights that were designed for true performance. With a custom-engineered patent-pending optic, multi-die automotive emitters, and high-power full-copper circuit boards, the Elite Series fog light up to 5 times more output than halogen lamps. With a plug-and-play installation, this is one of the easiest and most effective upgrades you can make to improve your visibility in inclement weather. The Elite Series Fog Lamp is built around a highly-engineered single-piece PMMA lens. This optic was carefully designed using advanced optical simulation software to produce a light pattern that is wider than any other aftermarket fog lamp on the market, with an 80 Degree spread of highly intense light. Even with this extremely wide band of light, the pattern is extremely smooth throughout, with an extremely sharp cutoff to avoid glare to other drivers, including a BMW-style “color flicker” at the very edge of the pattern. Diode Dynamics engineers accomplished all this while still meeting SAE F3 fog light standards, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.
Driving/ Fog Light; Elite Series; LED Bulb; Clear Bulbs; 3.6 Inch Round; OEM-Grade Replacement; 17 Watt Bulbs Amp Draw 1.3 AMP At 13.2 Volt; 80 Degree Fog Beam; 1850 Lumens; UV Coated Clear Polycarbonate Lens; Amber Backlight Functionality; Black Aluminum Casting Housing; Steel Bumper Mount; With Two Elite Series Type M Fog lamps/ Two Type MR Brackets/ Two 9006 4-Pin DT Backlight Tap Wires/ Two 5202 4-Pin DT Backlight Tap Wires/ Two T-Taps And Mounting Guide
Features & Benefits
- High Performance OEM Grade Replacement
- Custom Engineered Optic Provides Extremely Wide, Intense Light Output
- Distinctive Integrated Amber Backlight
- Road Legal Fog Light, SAE F3 Compliant
- Plug And Play Main Beam, No Modification Needed
- Engineered And Assembled In USA
- Limited 8 Year Warranty
Attributes
- Shape: Round
- Beam Type: 80 Degree Fog Beam

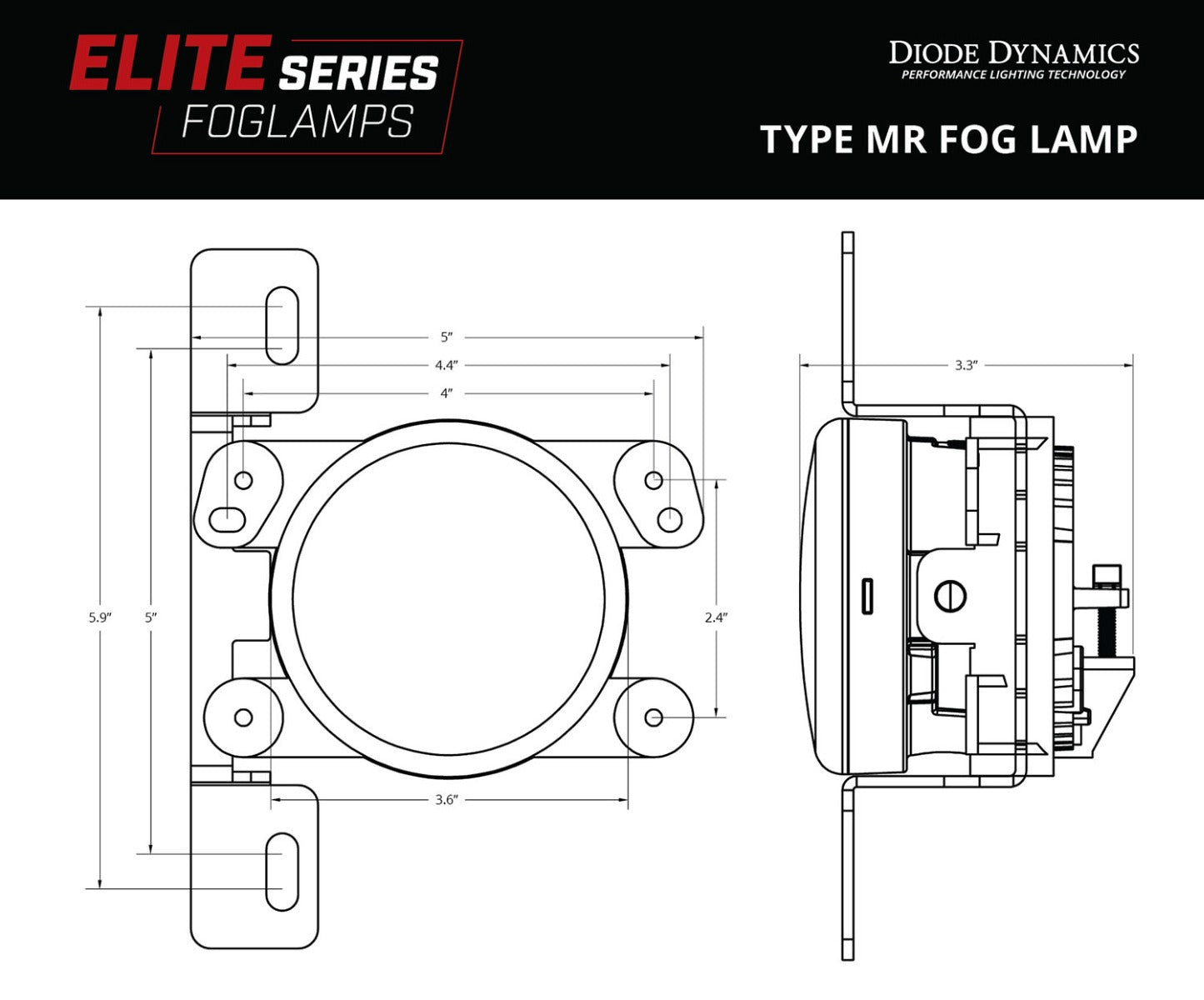

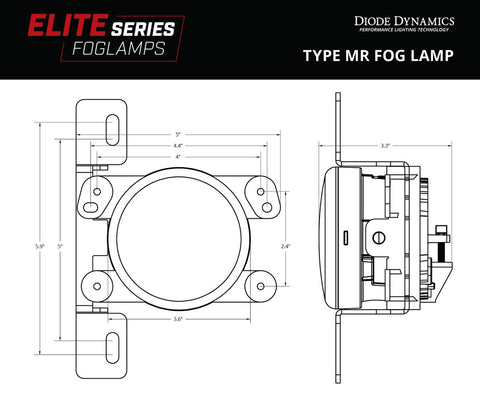

- Diameter: 3-9/16 Inch
- Height/ Width: Not Applicable
- Bulb Type: LED
- Light Color: White
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Depth: 3-5/16 Inch
- Wattage: 17 Watt
- Voltage Rating: 9 To 16 Volt
- Mounting Style: Bumper Mount
- Ampere Rating At 12 Volts: 1.3 Amp
- Lumens: 1850 Lumens
- Bulb Specifications: White LED Bulbs
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Aluminum
- Includes: With 2 Elite Series Type M Fog lamps/ 2 Type MR Brackets/ 2 9006 4-Pin DT Backlight Tap Wires
- Estimated Install Time (Hours): 1.5
Installation Instructions
Technical Bulletins
Specifications:

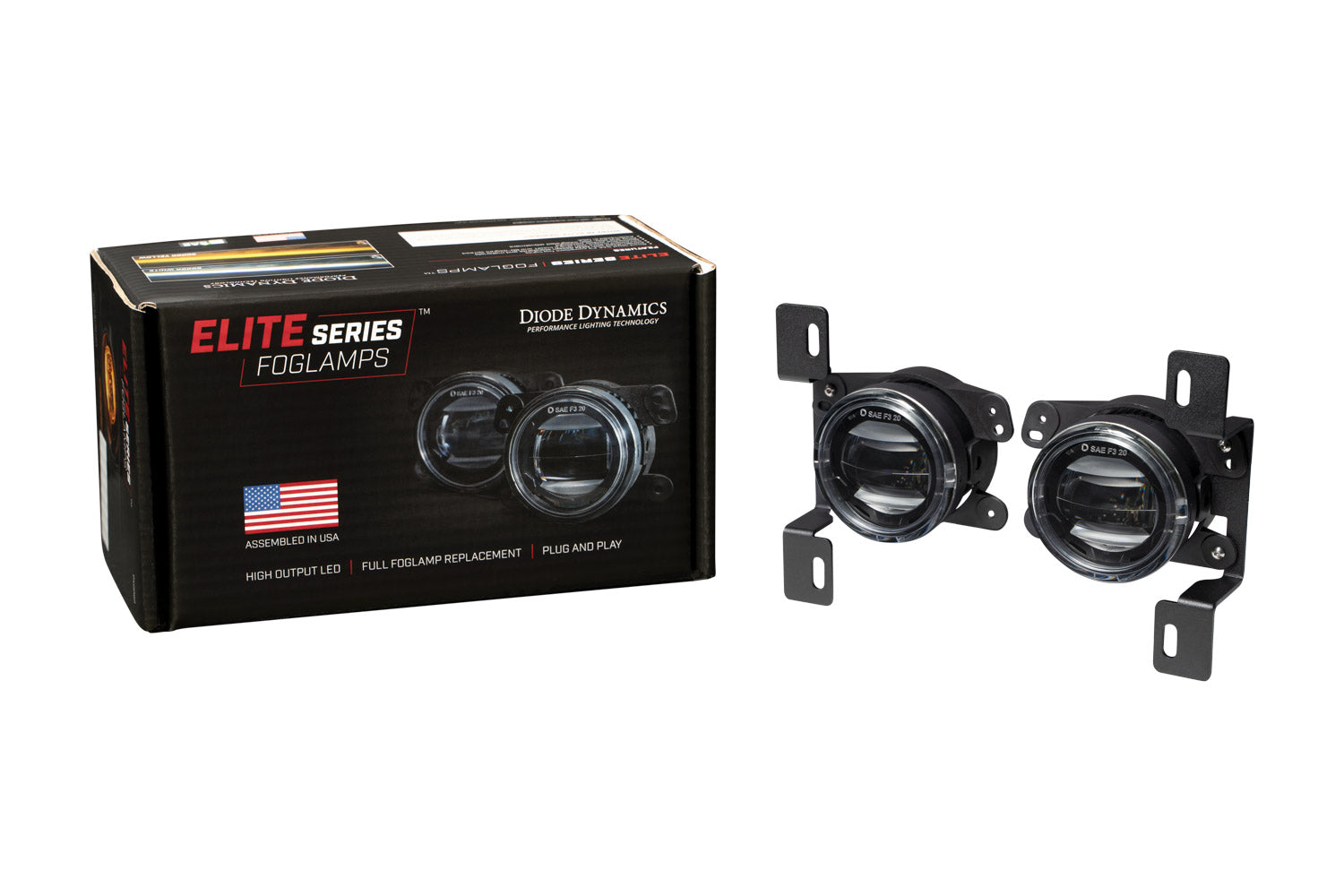

| Description_ASC | Included in the box: Two (2) Elite Series Type M fog lamps. Two (2) Type MR brackets. Two (2) 9006 4-pin DT backlight tap wires. Two (2) 5202 4-pin DT backlight tap wires. Two (2) T-taps. Mounting guide. |
| Description_DEF | Fog Light Assembly |
| Description_DES | High-performance OEM-grade replacement with custom-engineered optics. |
| Description_EXT | High-performance OEM-grade replacement. Custom-engineered optic provides extremely wide, intense light output. Distinctive amber backlight. Road-legal fog light (SAE F3 compliant).?Plug and play main beam, no modification needed. |
| Description_INV | Diode Dynamics Lamps |
| Description_MKT | High-performance OEM-grade replacement. Custom-engineered optic provides extremely wide, intense light output. Distinctive amber backlight. Road-legal fog light (SAE F3 compliant).?Plug and play main beam, no modification needed. |
| Description_SHO | Offroad |
