FABTECH K4197DL 5' TRAIL W/ DLSS SHKS 20-21 JEEP JT
- Regular price
- $3,338.00
- Regular price
-
$4,088.00 - Sale price
- $3,338.00
- Unit price
- per
Discount applied at checkout on eligible items*
Free Shipping within 2 to 6 Days*
Couldn't load pickup availability
Description
xAttributes
- Front Lift Amount (IN): 5 Inch
- Rear Lift Amount (IN): 5 Inch
- Front Lift Type: Coil Spring
- Rear Lift Type: Coil Spring
- Maximum Tire Size: 40 x 13.50
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Product Description

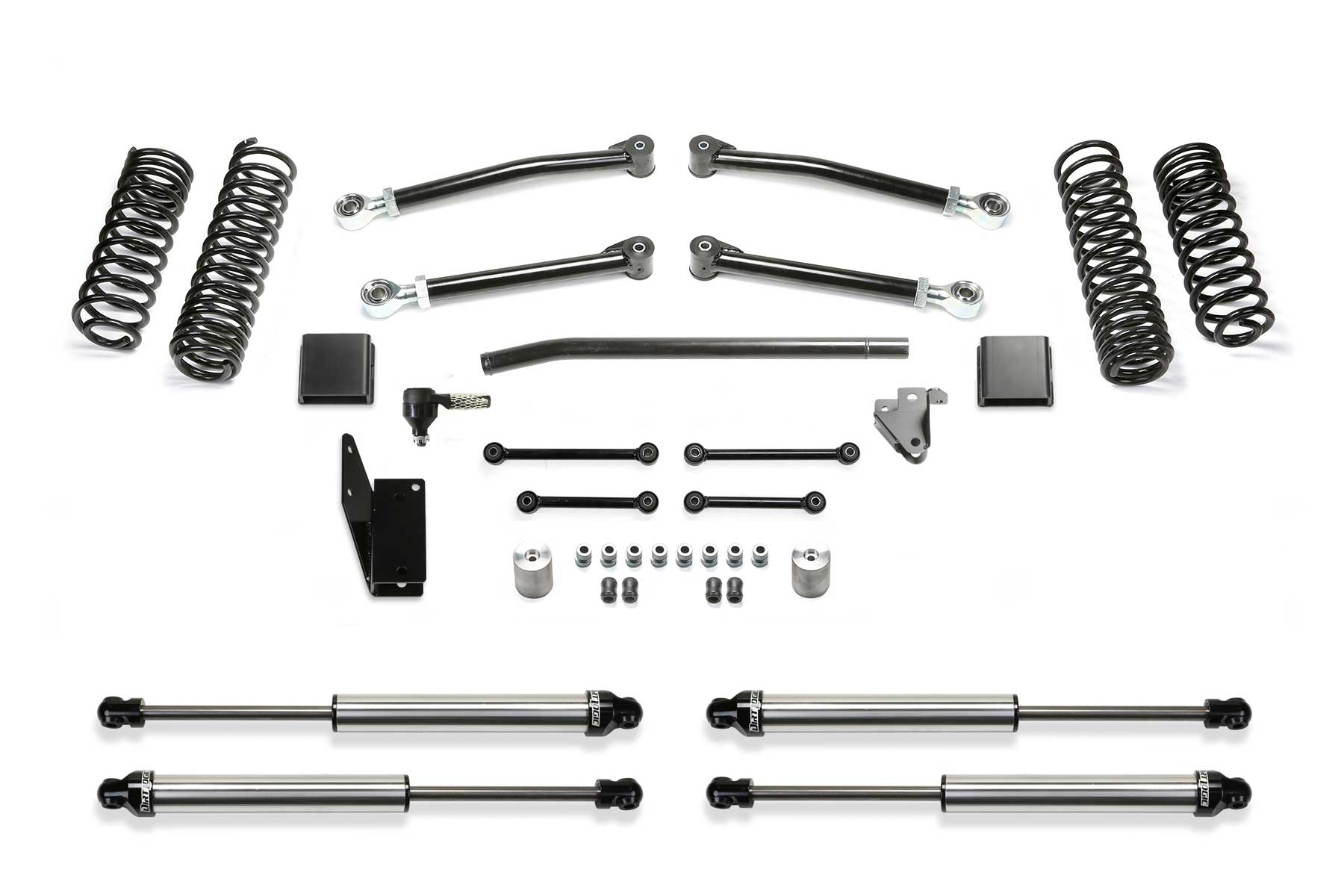

This Trail Lift Kit provides enhanced suspension performance to address all variants of off highway travel use comes with rock crawling, aggressive trail use and overland expeditions. This Gladiator lift kit has been tuned with proper dual rate coil springs and shock valving to provide a very compliant ride that you will appreciate. The system is a complete short arm suspension that utilizes the factory lower control arm mounts for an easy installation. The Fabtech lower link arms are constructed of thick wall steel tubing that are guaranteed never to bend. They come with large polyurethane bushings on one end with internal threads on the other to accept the groundbreaking Fabtech 5 Ton Joint ® for longevity and a quiet ride. Fabtech's dual rate Gladiator coil springs are corner specific to the Jeep JT. This keeps the vehicle level side to side and allows for increased suspension travel. The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the vehicle and address large impact absorption at higher speeds.
Features & Benefits
- System Replaces The Four Lower Link Arms Due To Their Vulnerability To Offroad Obstacles
- Corner Specific Dual Rate Coils Springs Provide A Level Stance Side To Side And Offer Factory Load Carrying Capacity With A Smooth Ride
- Springs Are The Best On The Market For All Around Driving While Providing Increased Suspension Travel For Offroad Use
- Heavy-Duty Draglink Is Relocated On The Steering Knuckle To Retain The Factory Steering Geometry With The Stock Pitman Arm
- Provides Bind Free Operation At Full Articulation And Eliminates Bump Steer Throughout The Travel
- Front And Rear Bump Stop Extensions Keep The Suspension From Over Cycling With The Increased Ride Height Preventing Damage To Steering And Suspension Parts
- Extended Length Front And Rear Sway Bar Links With Urethane Bushings Reposition The Bars To Work Within The Factory Operating Planes
- Limited Lifetime Warranty
