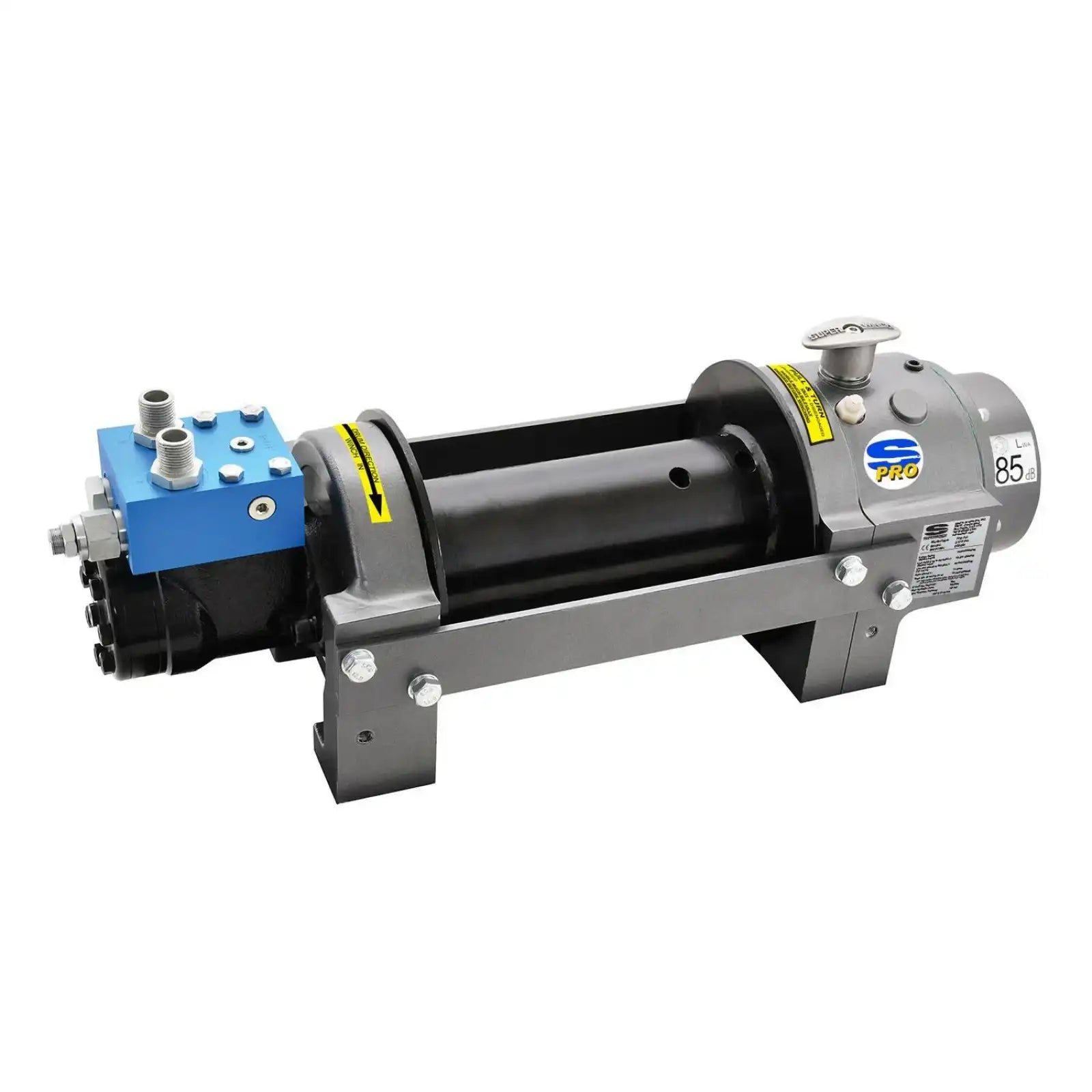

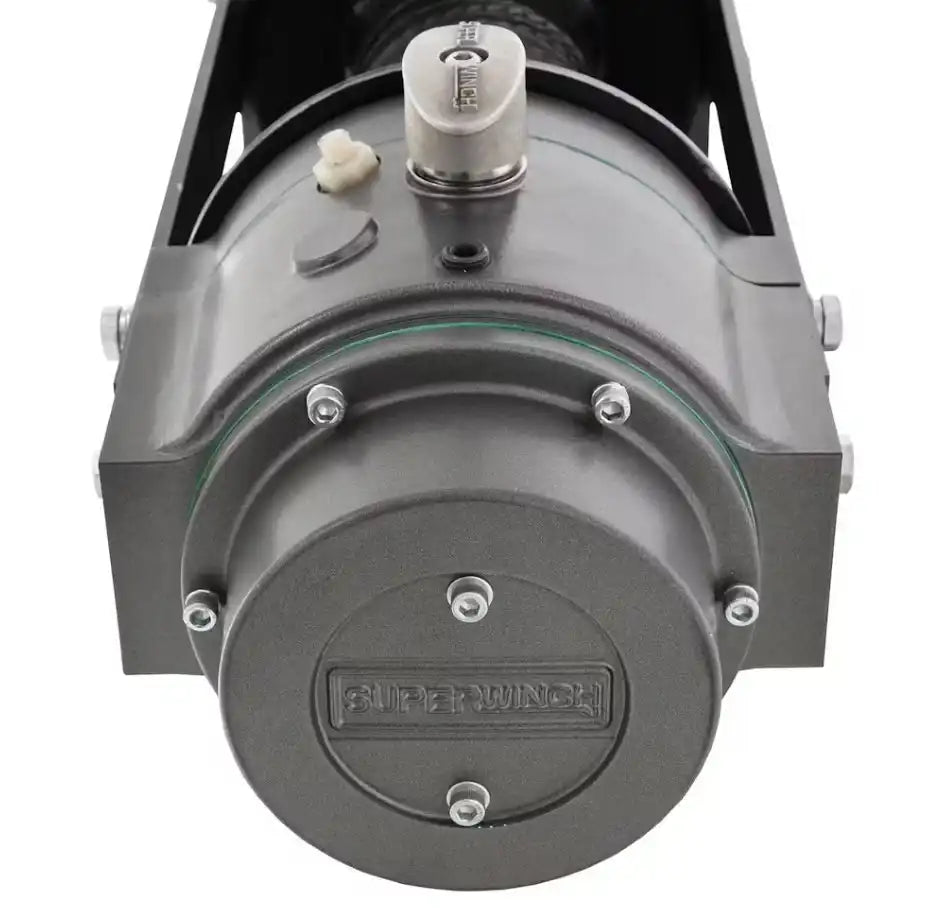

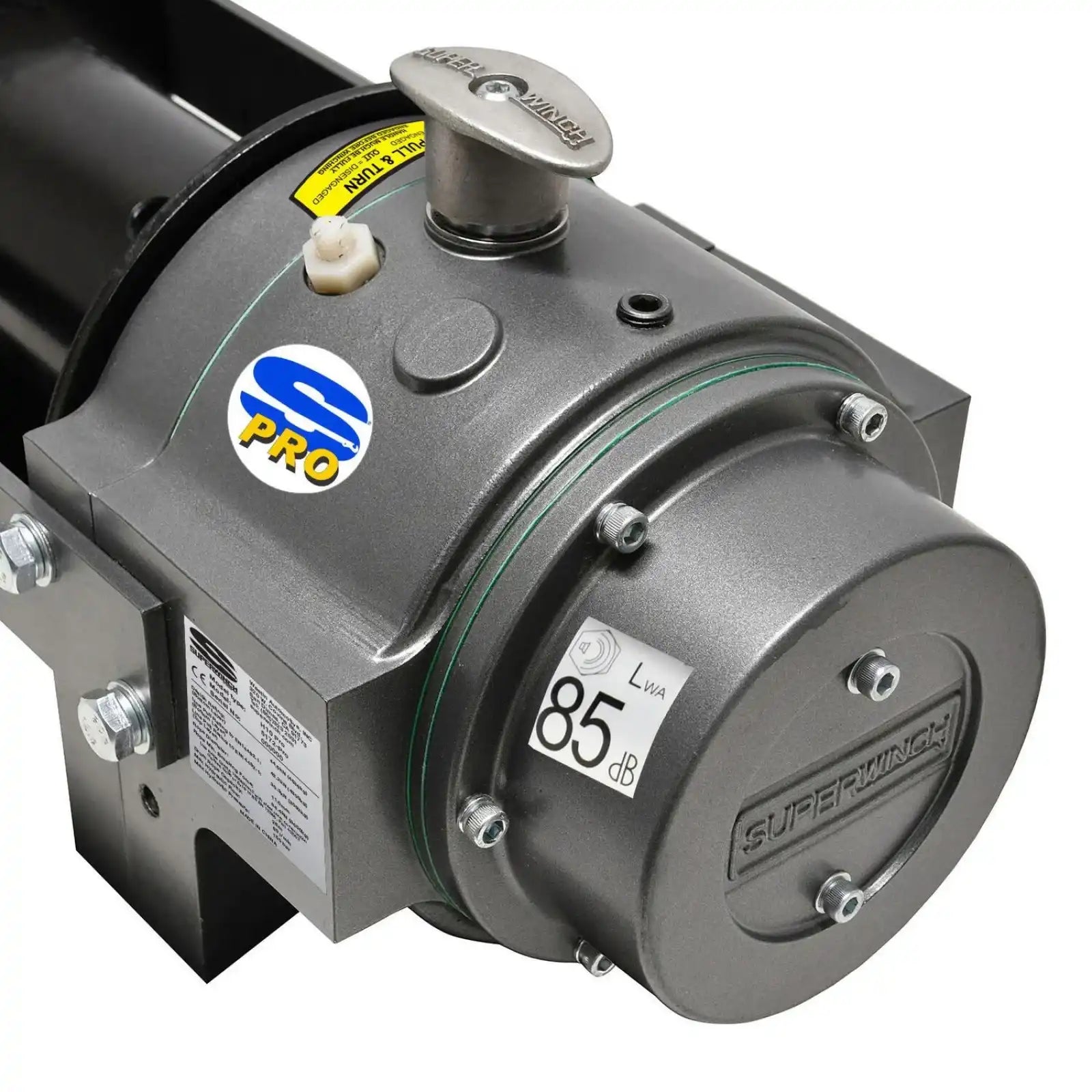

Superwinch 5172PRO H10P Winch
Superwinch 5172PRO H10P Winch
Superwinch 5172PRO H10P Winch

Superwinch 5172PRO H10P Winch

Vendor: Superwinch
SKU: BGFJ_5172PRO
Availability: Out of stock. Chat\Call to Order
Product Type: Winch
$2,129.00
$2,402.00
$2,129.00
Discount applied at checkout on eligible items*
Why Pay More? We Price Match & Beat It.
Free Shipping within 2 to 6 Days*
  • TruckPoint: Truck Accessories - Car Parts - Canadian Auto Parts
Description
Description
x

H10P Winch; 9479 lbs.; Meets EN 14492-1; CE Compliance; Load Control Block; Manual Free-Spool; 2-Stage Planetary; 16:1 Gear Ratio; 10 in. Long Drum; Roller Fairlead.

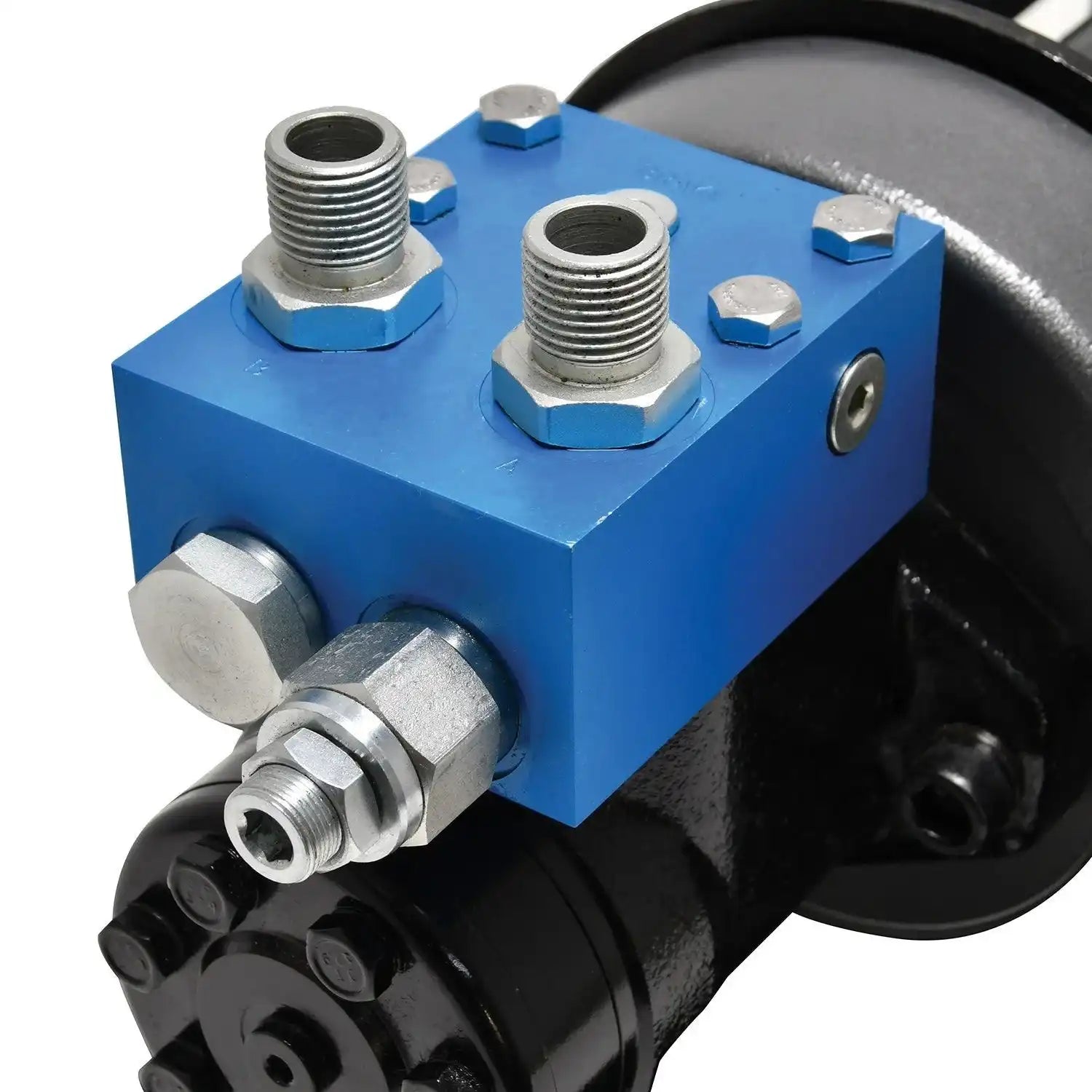

Superwinch H10P hydraulic winches provide users with a heavy-duty solution for the toughest, most demanding commercial/industrial applications All HP Series winches conform to EN 14492-1 and SAE J706 standards, and also meet CE requirements. Powered by a high-torque motor, and a highly efficient 2 stage planetary gearbox, the H10P winch delivers optimum reliability and performance “day in and day out”. The H10P winch is rated at 9,479 pounds (42.2 kN) and features a load control valve to enable the operator precision control of the load. Manual free-spooling and full load holding brakes provide users with reliable, predictable performance on demand. Available in choice of short or long drum configurations, the H10P allows for numerous mounting configuration options depending upon the need (Side, foot, or angle mounted, flat-bed or low-mount). Proven performance, and reliability are hallmarks of Superwinch’s heritage spanning half a century and are backed with a limited lifetime warranty valid worldwide.

    Specifications

    Brake System: Mechanical Disc Brake
    Can Ship By Ground Delivery Yes
    Clutch Manual Free-Spool
    Color Graphite
    Drum Length (in.) 10" Long Drum
    EN Compliant Yes
    Finish Powder Coated
    Finish/Color Gray
    Gear Ratio 16:1
    Gear System 2-Stage Planetary
    Package Height 13 in.
    Package Length 15 in.
    Material Steel
    Maximum Oil Flow 15.8 gpm (60 l/min)
    Maximum Oil Pressure 2,176 psi (150 bar)
    Mounting Bolt Pattern Side, foot, angle, flatbed, or low mount
    Rated Single Line Pull (Lbs) 10000
    Warranty Limited Lifetime Manufacturer
    Package Weight 106 lbs.
    Winch Model HP Series
