ICON Vehicle Dynamics K53002 ICON 2005-2015 Toyota Tacoma 0-3.5" Lift/2016-2023 Tacoma 0-2.75" Lift Stage 2 Suspension System

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models allowing the use of larger, more aggressive wheel and tire combinations. Remote reservoir ICON 2.0 Aluminum Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

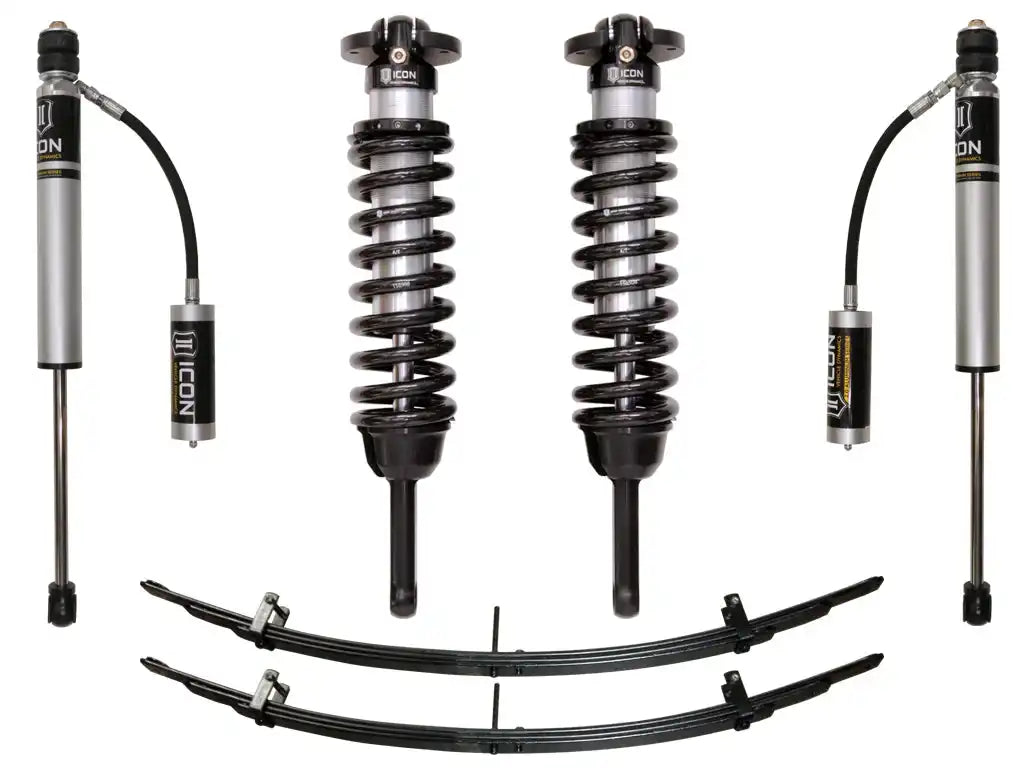

Lift Kit Suspension; Stage 2; 0 To 3-1/2 Inch Front Lift; 1-1/2 Inch Rear Lift; With Front Coil Over Shock Absorbers And Rear Remote Reservoir Shock Absorbers In Kit; Black Components/ Gray Shock Absorbers; With Front Coil Over Mounts/ Rear Add-A-Leaf/ Installation Hardware.

Features & Benefits

• Increased wheel travel and ride quality over stock
• Simple, bolt-on installation
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• ICON engineered coil springs
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
• Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift

Attributes

• Front Lift Amount (IN): 0 To 3-1/2 Inch
• Rear Lift Amount (IN): 1-1/2 Inch
• Maximum Tire Size: 33 x 11.50
• Front Lift Type: Coil Over Shock Absorber
• Rear Lift Type: Add-A-Leaf
• Shock Type: Hydraulic
• Wheel Backspacing (IN): 4.75
• Wheel Offset (MM): 0
• Shocks: With Shocks In Kit
• Color: Black Components/ Gray Shock Absorbers

Attributes:

• GTIN: 00840103416380
• Brand Name: ICON Vehicle Dynamics
• 2064: Steel
• 2371: Yes
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 6111: 3
• 7325: 2
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Adjustable Damping: No
• Coil Quantity Front: 2
• Front Spring Rate 1: 650
• Front Spring Rate Type: Linear
• Maximum Lift Front: 3.5
• Maximum Lift Rear: 1.5
• Minimum Lift Front: 0
• OEM Wheels & Tires Fitment: Yes
• Rear Spring Rate Type: Linear
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.0000 x 13.0000 x 7.0000 inches
• Weight: 99.0000 lb
