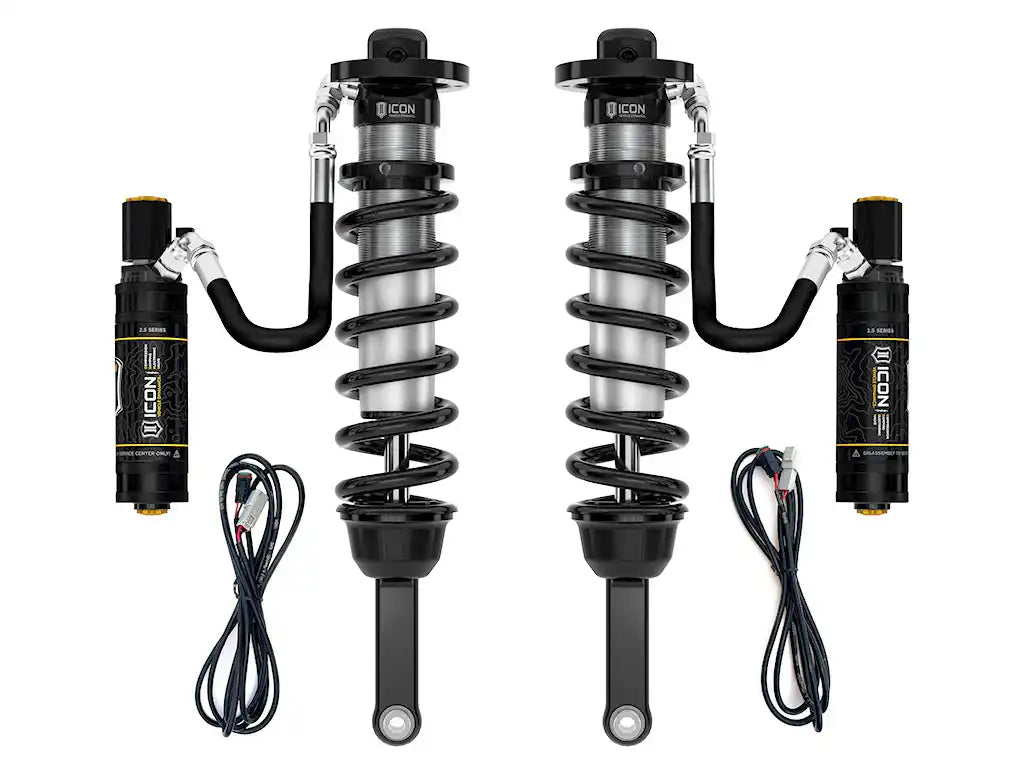

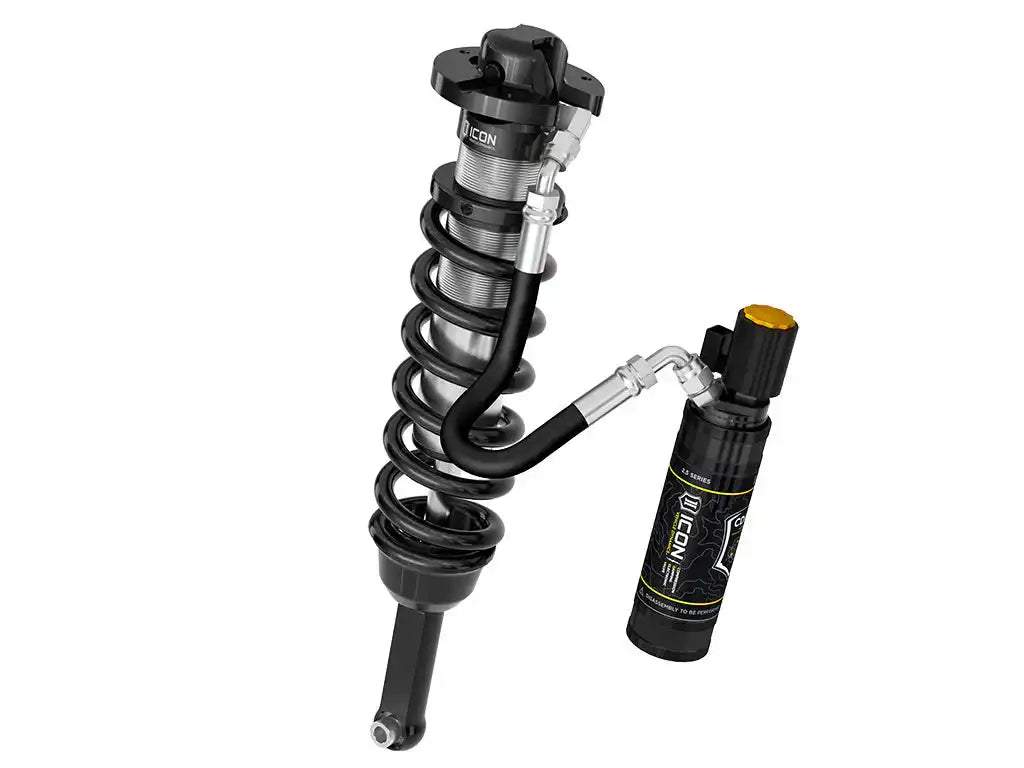

ICON Vehicle Dynamics FRDK_58747E-700 ICON 2010-2023 Toyota 4Runner 2.5 VS Remote Reservoir W/ CDEV Extended Travel Coilover Kit 700 Lbs/in Coils
Vendor:
ICON Vehicle Dynamics
SKU:
FRDK_58747E-700
Availability:
Out of stock. Chat\Call to Order
Product Type:
Coilover Spring and Shock Assembly
- Regular price
- $2,798.00 USD
- Regular price
-
$2,960.00 - Sale price
- $2,798.00 USD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description

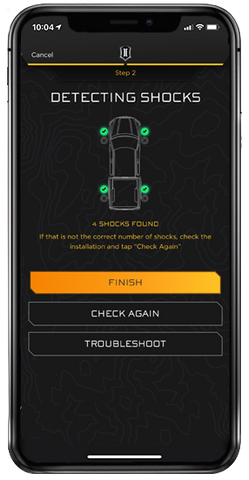

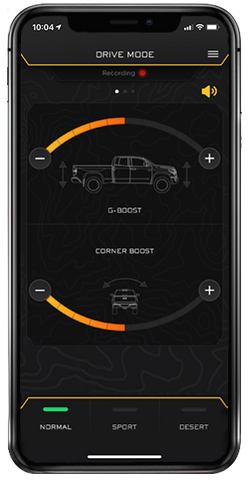

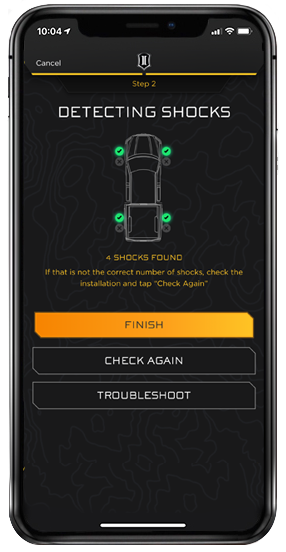

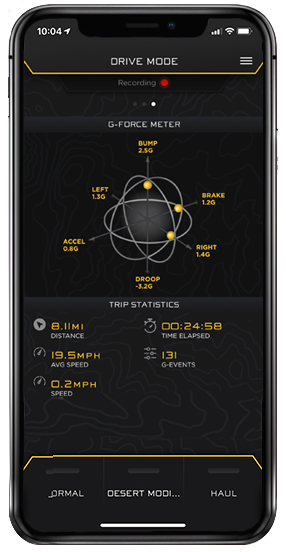

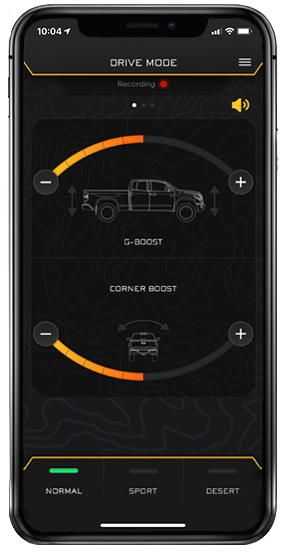

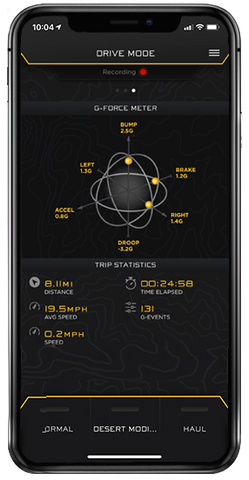

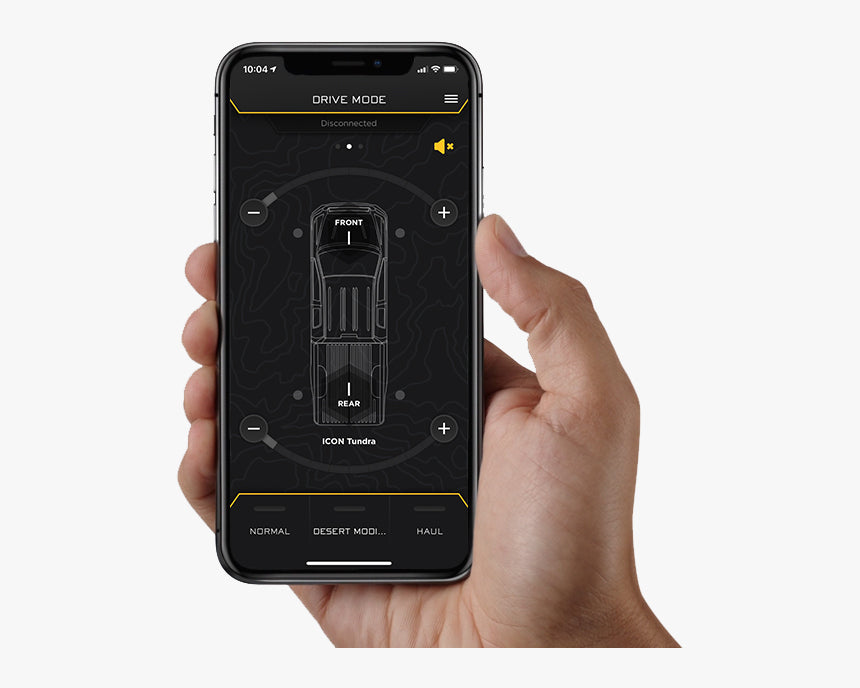

xCompression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Bolt-on kit - no cutting or welding necessary for installation
- 100% Rebuildable
- 100% Revalveable
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Adjustable for 0-3.5" of lift height over stock
- ICON engineered coil springs with 700 lbs/in spring rate

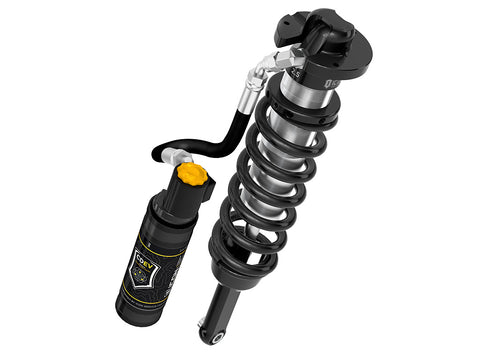

- External reservoirs to attain cooler operating temperatures during extended off-road use
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
- FK rod end bearings for extended longevity and minimal deflection
Attributes:
- GTIN: 00840103423869
- Brand Name: ICON Vehicle Dynamics
- 2917: yes
- 3390: Performance
- 408: Center of Eylet
- 409: Top of Upper Mount Plate
- 48: Eyelet
- 49: Mounting Plate
- 50: No
- 51: yes
- 52: 2.5
- 8703: No
- Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
- Adjustable Damping: Yes
- Coil Over Springs Included: Yes
- Damping Adjustment Type: Electronic
- Damping Type: Oil
- Dust Shield: No
- Material: Aluminum
- Maximum Lift: 3.5
- Minimum Lift: 0
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Remote Reservoir: Yes
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875
- Spring Color: Black
- Spring Material: Steel
- Spring Rate: 700
- Spring Rate Type: Linear
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 27.0000 x 12.0000 x 8.0000 inches
- Weight: 64.0000 lb
