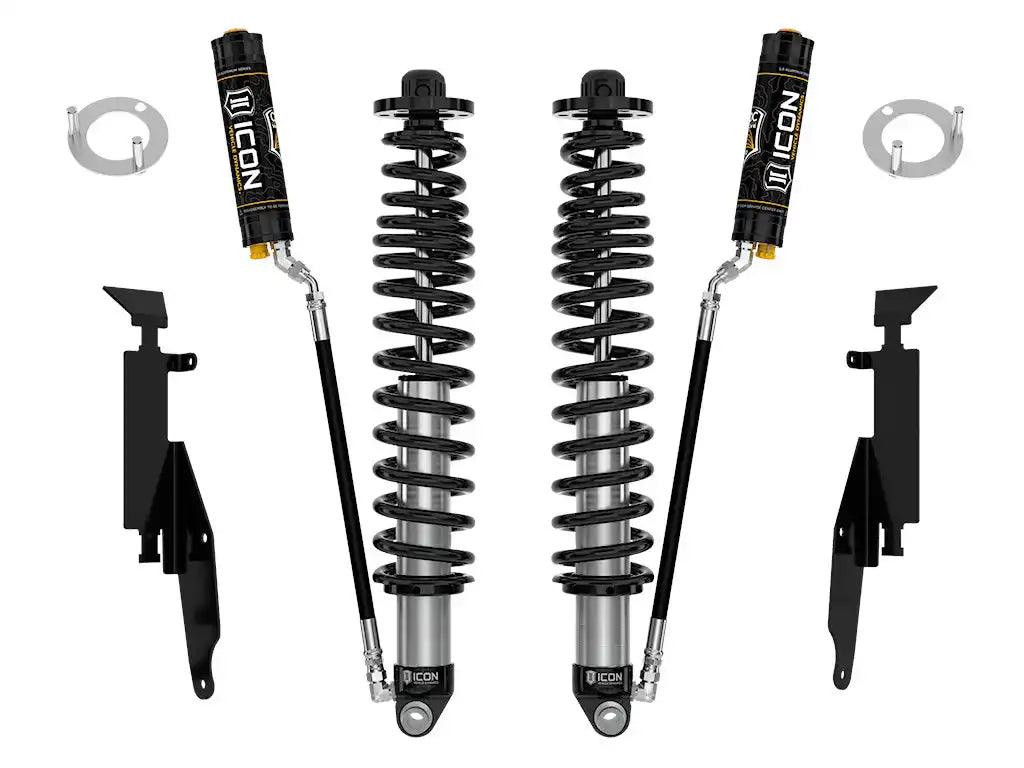

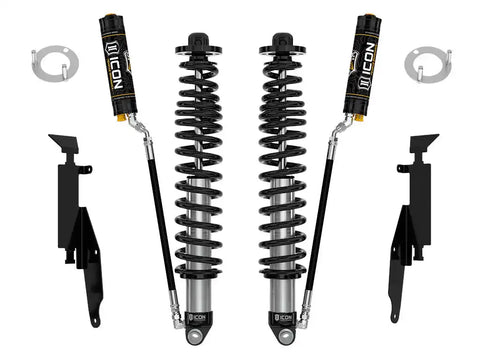

ICON Vehicle Dynamics FRDK_48711C ICON 2021-2023 Ford Bronco Rear 1.25-3” Lift 2.5 VS RR/CDCV Coilover Kit Heavy Rate Spring
Vendor:
ICON Vehicle Dynamics
SKU:
FRDK_48711C
Availability:
2
In Stock
Product Type:
Coilover Spring and Shock Assembly
- Regular price
- $2,026.00 USD
- Regular price
-
$2,650.00 - Sale price
- $2,026.00 USD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description
xICON Vehicle Dynamics V.S. 2.5 Series remote reservoir rear coilover shocks with CDCV are an incredible upgrade for the rear end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. This shaft up orientation also requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design. When paired with ICON 2.5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
- Increased wheel travel (up to 14”) and ride quality over stock
- Fully rebuildable and re-tunable
- 100% Bolt-on - no drilling, cutting or welding necessary for installation
- Vehicle specific tuned for superior shock damping and control
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- Adjustable up to 2-3" of rear lift height on non-Sasquatch or 1.25-2.25” of rear lift on Sasquatch Broncos
- Unique ICON engineered dual rate coil springs with increased spring rates for heavier equipped Broncos
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shaft
- FK rod end bearings for extended longevity and minimal deflection
Attributes:
- GTIN: 00840103424217
- Brand Name: ICON Vehicle Dynamics
- 2917: Yes
- 3390: Performance
- 408: Top of Mounting Plate
- 409: Center of Eylet
- 48: Eyelet
- 49: Mounting Plate
- 50: No
- 51: Yes
- 52: 2.5
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Adjustable Damping: Yes
- Coil Over Springs Included: Yes
- Damping Adjustment Type: Manual
- Damping Type: Oil
- Dust Shield: No
- Material: Aluminum
- Maximum Lift: 3
- Minimum Lift: 1.25
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers)
- Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
- Remote Reservoir: Yes
- Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
- Shaft Diameter: 0.875
- Spring Color: Black
- Spring Material: Steel
- Spring Rate Type: Progressive Dual Rate
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 38.0000 x 13.0000 x 8.0000 inches
- Weight: 72.0000 lb
