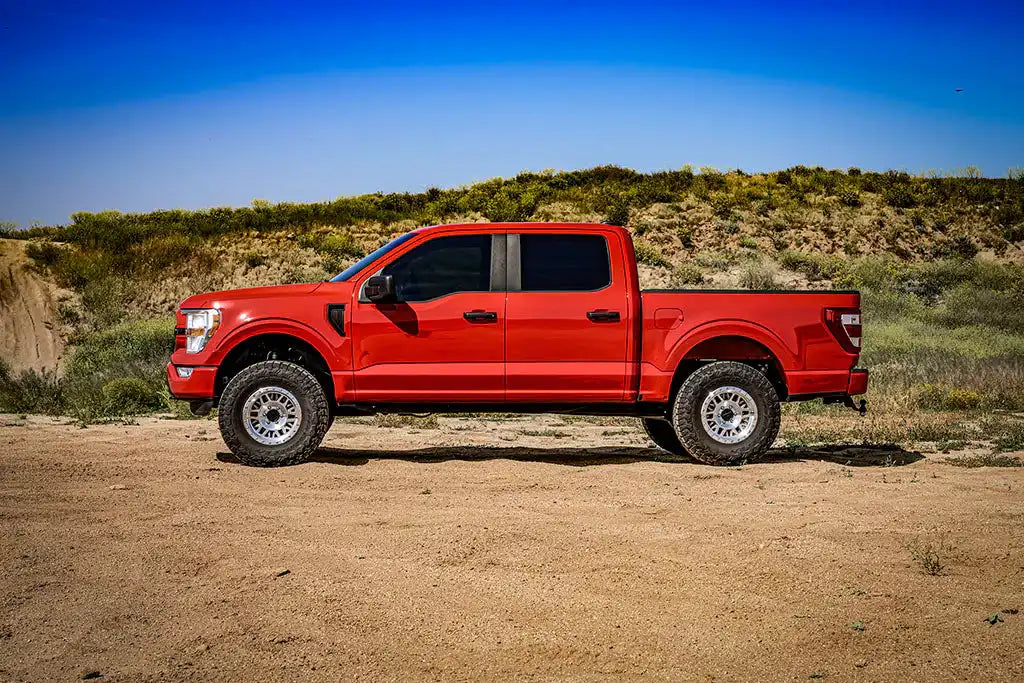

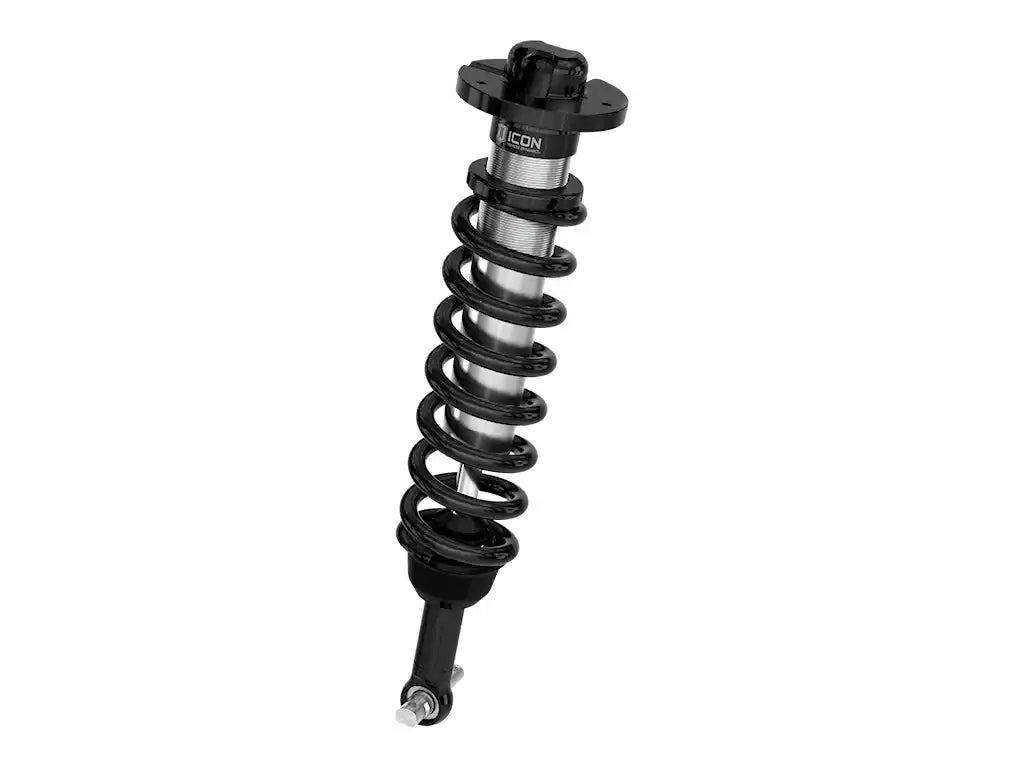

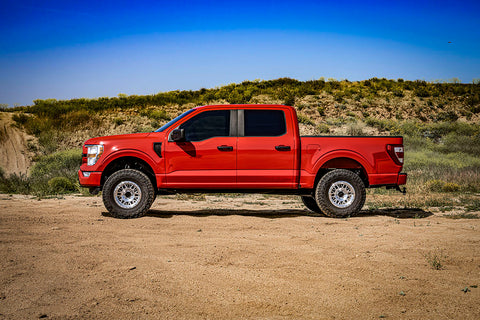

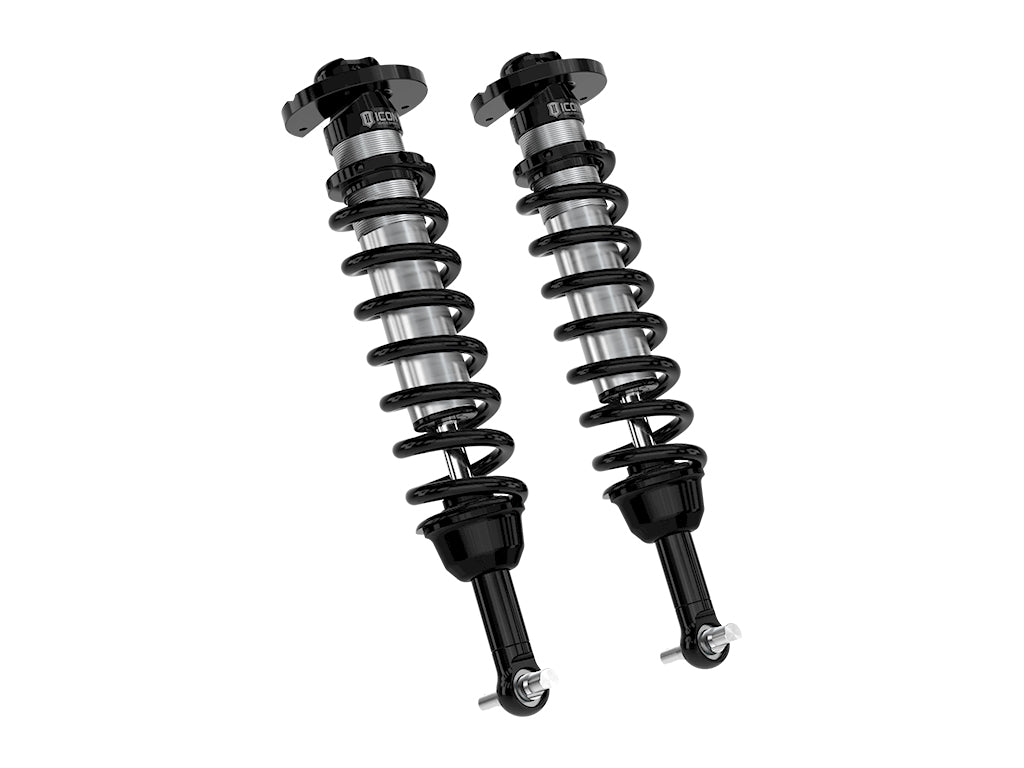

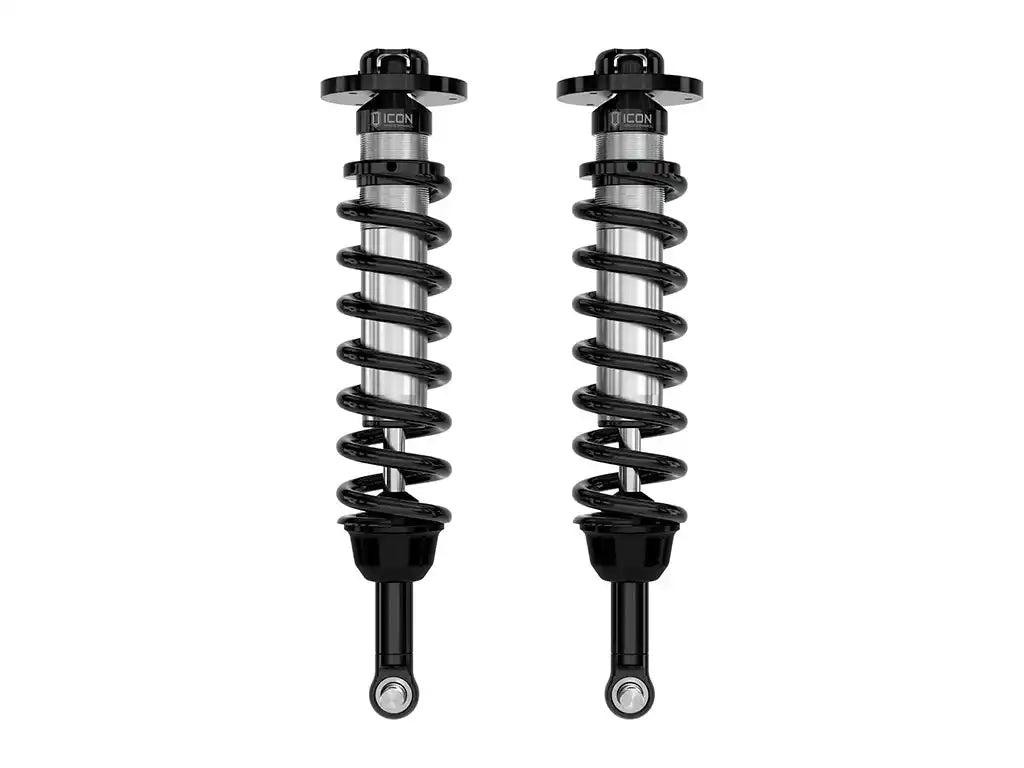

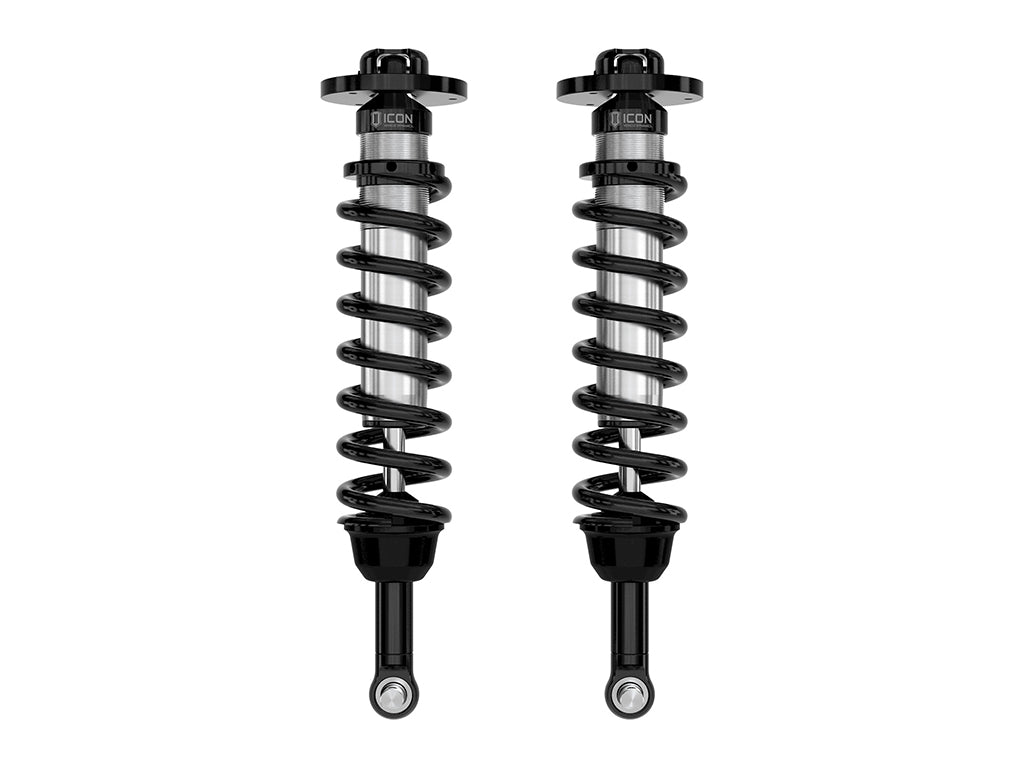

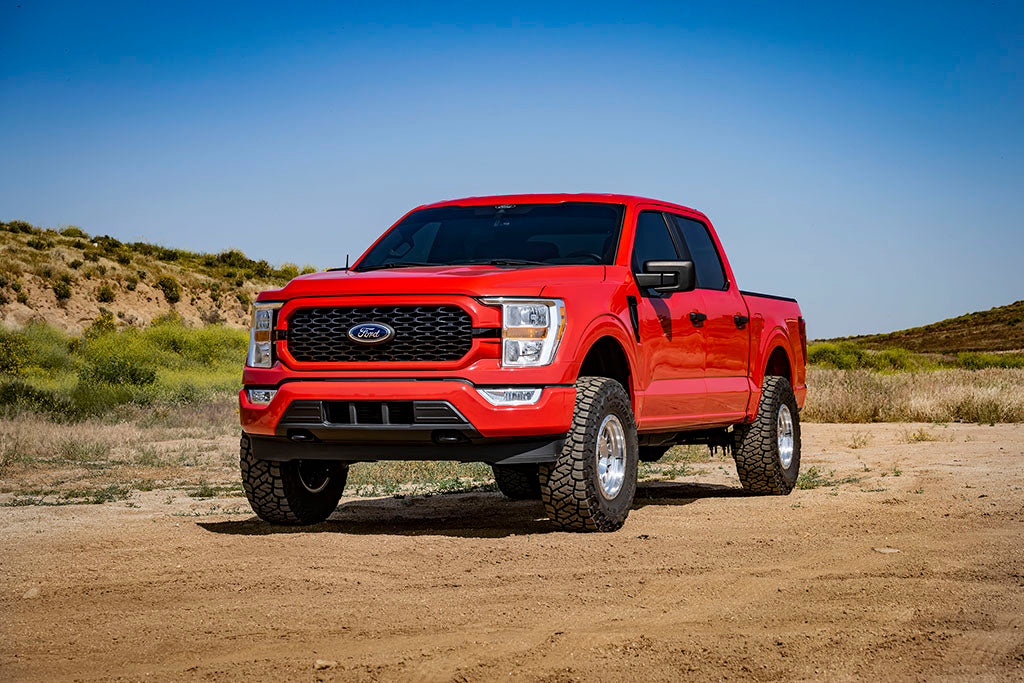

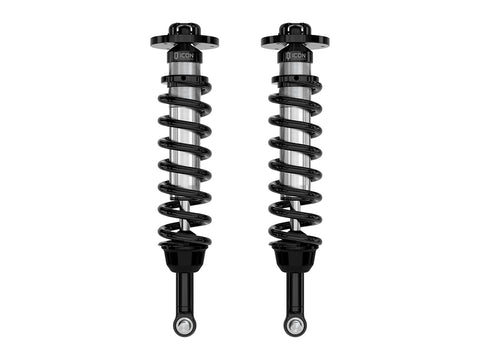

ICON Vehicle Dynamics 91723 ICON 2021-2023 Ford F-150 4WD/Tremor 3.5-4.5"/2.5-3" Lift Front 2.5 VS Internal Reservoir Coilovers Pair

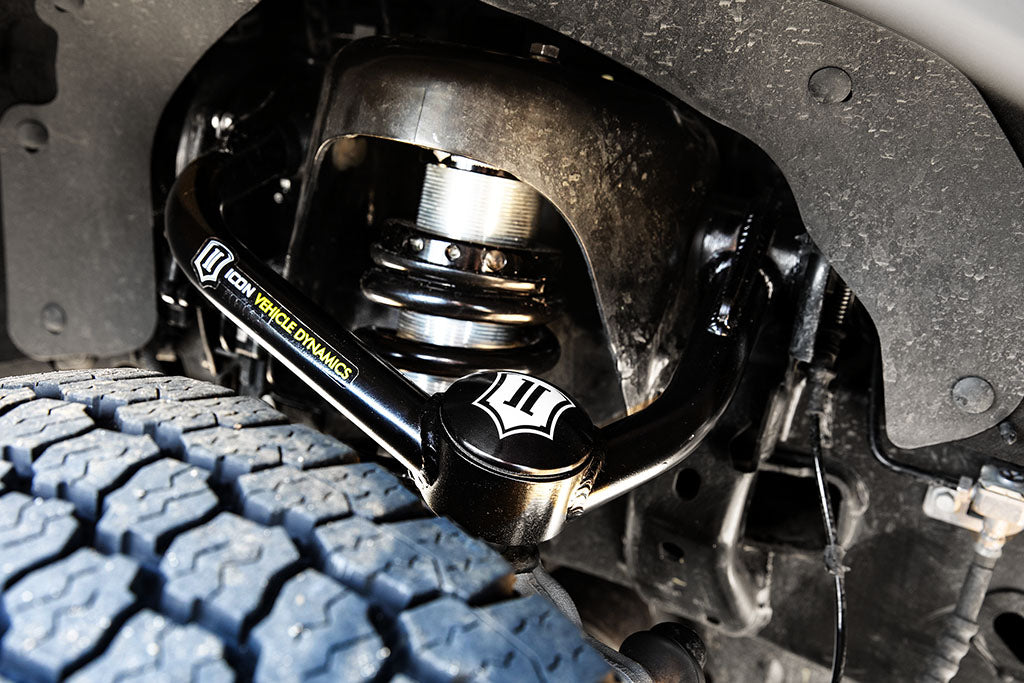

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2023 Ford F-150 Tremor and F-150 4WD trucks equipped with ICON's Front Knuckle Kit. These coilovers feature an application specific length for F-150 Tremor or other F-150 sub-models equipped with ICON’s Front Knuckle Kit, allowing the most wheel travel possible as well as a taller lift height range than other ICON coilover options. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.5-3” of lift height adjustability on F-150 Tremor or 3.5-4.5” of lift height adjustability on other F-150 sub-models allow the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150.

• Application specific length for F-150 Tremor or other F-150 sub-models with ICON Front Knuckle Kit
• High strength alloy CNC machined lower bar pin
• 100% Bolt-on - no drilling, cutting, or welding necessary for installation
• Increased wheel travel and ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Adjustable for 2.5-3" of lift height over stock on F-150 Tremor or 3.5-4.5" over stock on other F-150 sub-models with ICON Front Knuckle Kit
• Internal nitrogen reservoir ensures consistent performance under hard use
• ICON engineered coil Springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8" shaft
• FK rod end bearings for extended longevity and minimal deflection

Note

• Position On Vehicle: Front; With 0 To 2-3/4 Inch Lift
• Not Compatible With Blue Cruise
• Without Electronic Dampening Control

Attributes:

• GTIN: 00840103425658
• Brand Name: ICON Vehicle Dynamics
• 2917: yes
• 3390: Performance
• 408: Flat on Bar Pin
• 409: Top of Upper Mount Plate
• 48: BAR PIN
• 49: Mounting Plate
• 50: No
• 51: yes
• 52: 2.5
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Adjustable Damping: NO
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Material: Aluminum
• Maximum Lift: 4.5
• Minimum Lift: 3.5
• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Remote Reservoir: NO
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Shaft Diameter: 0.875
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 55.0000 lb
