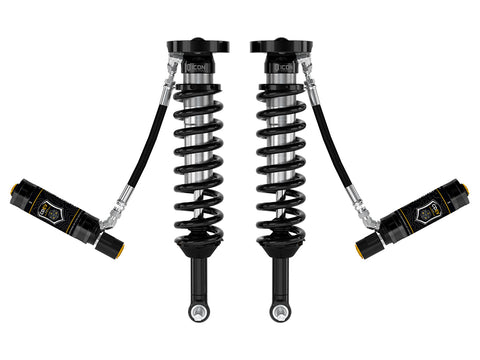

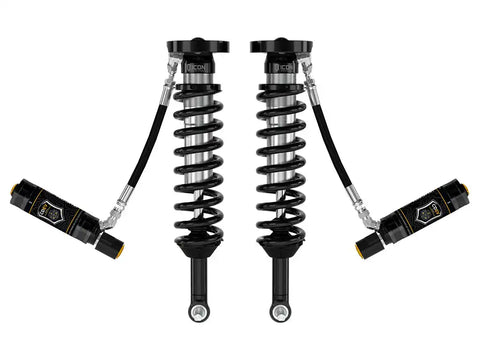

ICON Vehicle Dynamics FRDK_71671E ICON 2023 Chevrolet Colorado WT LT & Z71 2.5 Series Coilover Kit Remote Reservoir W/ CDEV
Vendor:
ICON Vehicle Dynamics
SKU:
FRDK_71671E
Availability:
Out of stock. Chat\Call to Order
Product Type:
Coilover Spring and Shock Assembly
- Regular price
- $2,561.00 USD
- Regular price
-
$2,811.00 - Sale price
- $2,561.00 USD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description

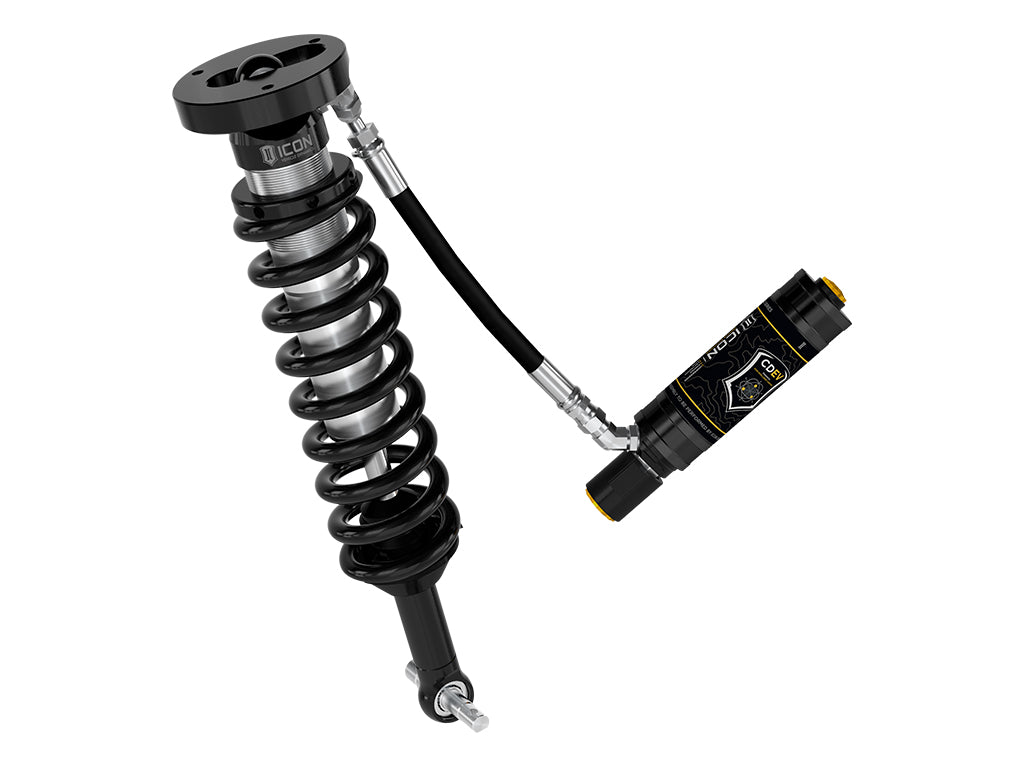

xICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023 Chevrolet Colorado WT, LT, and Z71 trucks. Specifically designed for the narrower track width of these Colorado submodels, their longer length offers a 20% increase in total front wheel travel compared to stock, for a total of 9.5” of front wheel travel. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON CDEV rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 2023 Chevrolet Colorado WT, LT, and Z71.
- 20% increase in front wheel travel and improved ride quality over stock
- PTFE lined spherical bearings for extended longevity and minimal deflection
- High strength alloy CNC machined lower bar pin and application specific mounting hardware
- Fully rebuildable and re-tunable
- 100% Bolt-on - no drilling, cutting, or welding necessary for installation
- Vehicle specific tuned for superior shock damping and control
- Adjustable for 1.75-2.5" of front lift height over stock
- Remote reservoirs maintain cooler operating temperatures during extended off-road use

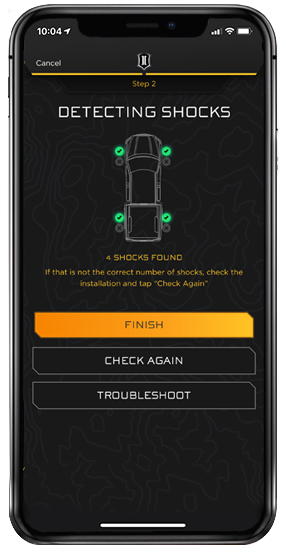

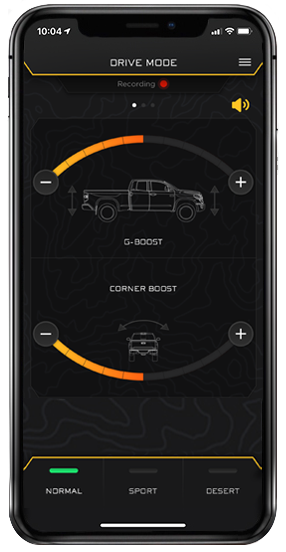

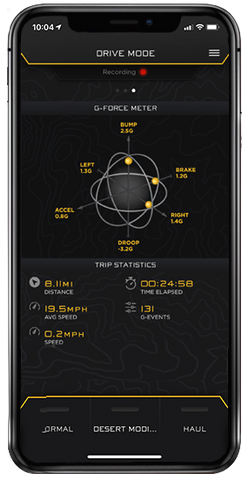

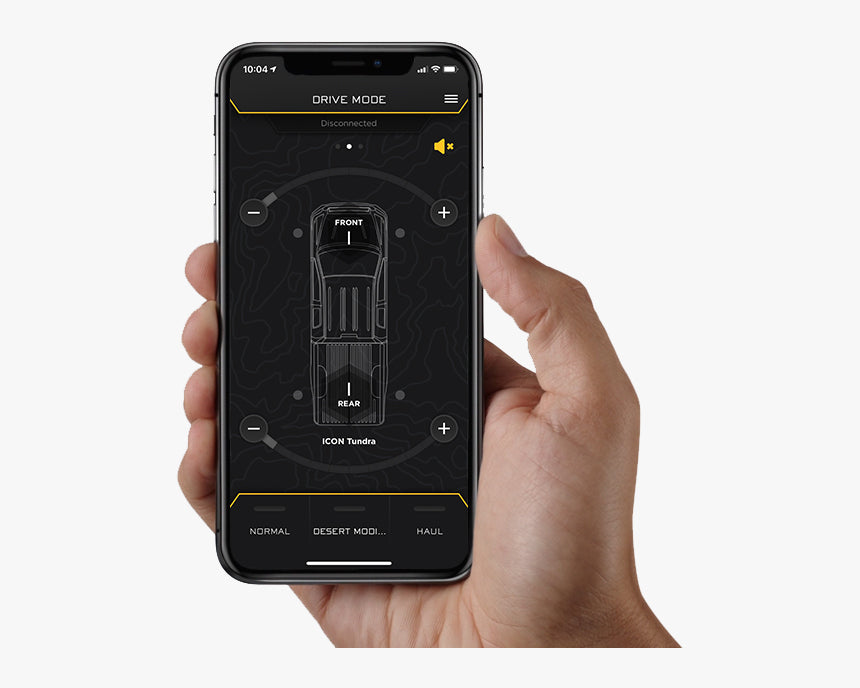

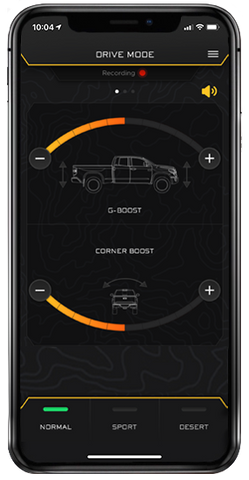

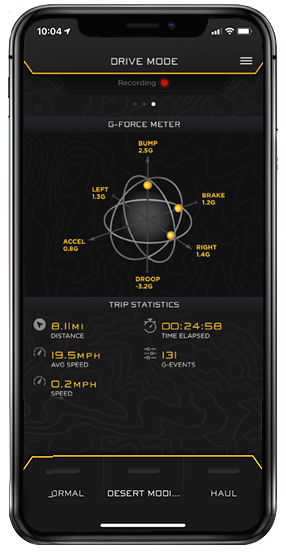

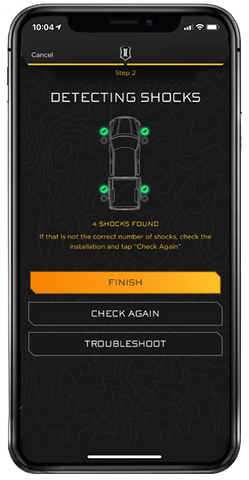

- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON engineered coil springs
- Corrosion resistant CAD plated 2.5” diameter shock bodies
- 7/8" diameter hardened chrome plated shafts
- 6061 Aircraft grade aluminum CNC machined components
Attributes:
- GTIN: 00840103427560
- Brand Name: ICON Vehicle Dynamics
- 2917: Yes
- 3390: Performance
- 408: Flat on Bar Pin
- 409: Top of Upper Mount Plate
- 48: Bar Pin
- 49: Mounting Plate
- 50: No
- 51: Yes
- 52: 2.5
- 8703: No
- Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- Adjustable Damping: Yes
- Coil Over Springs Included: Yes
- Damping Adjustment Type: Electronic
- Damping Type: Oil
- Dust Shield: No
- Material: Aluminum
- Maximum Lift: 2.5
- Minimum Lift: 1.75
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
- Remote Reservoir: Yes
- Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
- Shaft Diameter: 0.875
- Spring Color: Black
- Spring Material: Steel
- Spring Rate Type: Linear
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 27.0000 x 12.0000 x 8.0000 inches
- Weight: 55.0000 lb
