ICON Vehicle Dynamics K53294TS ICON 2024 Toyota Tacoma 1.25-3" Lift Stage 4 Suspension System Tubular UCA W/ Triple Rate Rear Springs

ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coil design provides a softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024 Toyota Tacoma Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

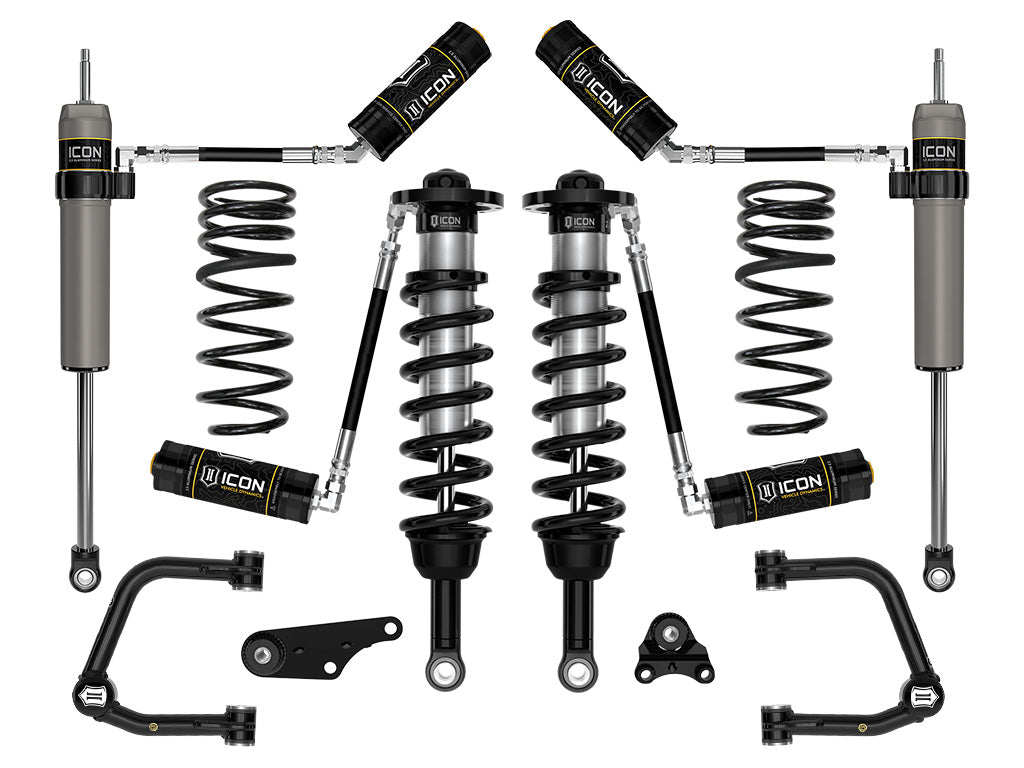

Lift Kit Suspension; Stage 4; 1-1/4 To 3 Inch Front Lift; 1/2 Inch Rear Lift; With Front Coil Over Remote Reservoir Shock Absorbers And Rear Remote Reservoir Shock Absorbers In Kit; Black/ Silver Components; With Coil Over Mounts/ Rear Coil Springs/ Tubular Upper Control Arms/ Differential Drop Brackets/ Installation Hardware

Features & Benefits

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• ICON engineered front and rear coil springs
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts

Attributes:

• GTIN: 00840103429021
• Brand Name: ICON Vehicle Dynamics
• 2064: Steel
• 2371: Yes
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 7325: 2
• 7326: 2
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Adjustable Damping: No
• Coil Quantity Front: 2
• Front Spring Rate Type: Linear
• Maximum Lift Front: 3
• Maximum Lift Rear: .5
• Minimum Lift Front: 1.25
• OEM Wheels & Tires Fitment: Yes
• Rear Spring Rate Type: Progressive Triple Rate
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 8.0000 inches
• Weight: 164.0000 lb
