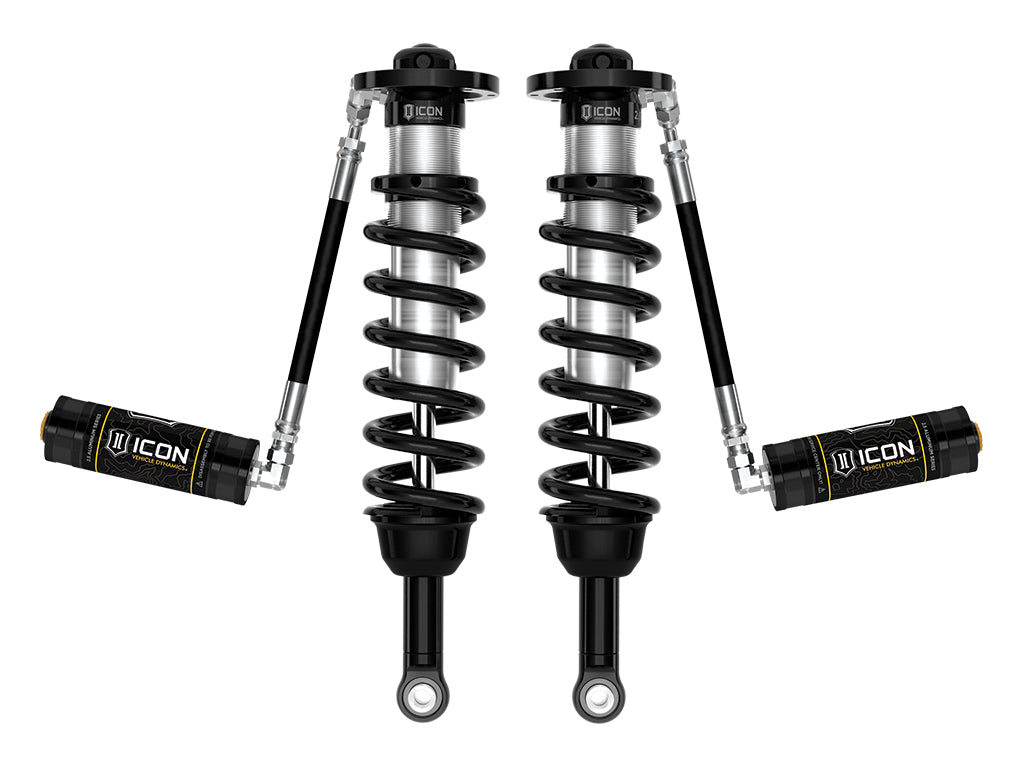

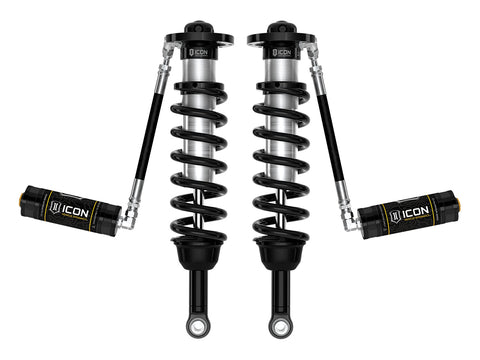

ICON Vehicle Dynamics 58790 24 GX550 FRONT 2.5 VS RR COILOVER KIT
Vendor:
ICON Vehicle Dynamics
SKU:
FRDK_58790
Availability:
3
In Stock
Product Type:
Coilover Spring and Shock Assembly
- Regular price
- $1,869.00 USD
- Regular price
-
$1,978.00 - Sale price
- $1,869.00 USD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description
xICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2024 Lexus GX550. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop and Delta Joint Pro front upper control arms, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Lexus GX550.
Specifications:
| 10530 | Passive |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 58552DJ - 24 TACOMA/24 LC250 BILLET UCA DJ PRO KIT |
| Add-On Part | 58552GDJ - 24 TACOMA/24 LC250 BILLET UCA DJ PRO KIT GOLD ANO |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 58452DJ - 24 TACOMA/25 LC250 TUBULAR UCA DJ PRO KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 55156 - 22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT |
| Adjustable | No |
| 10527 | No |
| 7232 | No |
| 2917 | Yes |
| 7233 | No |
| 52 | 2.5 |
| 50 | No |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| 5126 | Silver |
| Cylinder Finish | Cadmium Plated |
| 2329 | Steel |
| Damping Type | Oil |
| 8703 | No |
| 51 | Yes |
| 3390 | Performance |
| 3085 | Single Tube |
| 48 | Eyelet |
| Material | Steel |
| Material | Aluminum |
| Maximum Lift | 3 |
| Minimum Lift | 1.25 |
| OEM Wheels & Tires Fitment | Yes |
| 9476 | Yes |
| Reservoir Style | Remote |
| 10529 | No |
| Shaft Diameter | 0.875 |
| 409 | Top of Upper Mount Plate |
| 408 | Center of Eyelet |
| Spring Color | Black |
| 2064 | Steel |
| Spring Rate Type | Linear |
| Title | ICON 2024 Lexus GX550, 1.25-3" Lift, Front, V.S. 2.5 Series Coilover Kit, Remote Reservoir, Pair |
| 49 | Mounting Plate |
| 10526 | Digressive |
| Description_SHO | COILOVER KIT |
| Description_INV | 58790 |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset |
| Description_ASC | Recommended Aftermarket Tires: 34" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. |
| Description_ASC | APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range. |
| Description_ASC | APPLICATION NOTE #152: ICON Delta Joint Pro upper control arms required |
| Description_ASC | APPLICATION NOTE #175: Will not fit GX550 Overtrail |
| Description_ASC | APPLICATION NOTE #177: 4WD/AWD models require front differential drop part # 55156 |
| Description_DES | 24 GX550 FRONT 2.5 VS RR COILOVER KIT |
| Description_EXT | ICON 2.5 Series front coilover shocks are an incredible upgrade for the 2024 Lexus GX550. These adjustable coilovers allow up 1.25-3” of lift with vehicle-specific shock length and valving for superior ride quality and performance. |
| Description_MKT | ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2024 Lexus GX550. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop and Delta Joint Pro front upper control arms, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Lexus GX550. |
| Description_FAB | Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock |
| Description_FAB | Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel |
| Description_FAB | Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock |
| Description_FAB | 2.5" diameter shock bodies with remote reservoirs for consistent performance |
| Description_FAB | Remote reservoirs maintain cooler operating temperatures during extended off-road use |
| Description_FAB | ICON engineered coil springs |
| Description_FAB | 6061 Aircraft grade aluminum CNC machined components |
| Description_FAB | Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts |
| Description_FAB | FK rod end bearings for extended longevity and minimal deflection |
| Description_FAB | Fully rebuildable and re-tunable |
| Description_TLE | ICON 2024 Lexus GX550, 1.25-3" Lift, Front, V.S. 2.5 Series Coilover Kit, Remote Reservoir, Pair |
| Description_APS | ICON 24 GX550 FRONT 2.5 VS RR COILOVER KIT |
| Description_DEF | Coilover Spring and Shock Assembly |
