ICON Vehicle Dynamics K53365T 24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 5 SUSPENSION SYSTEM TUBULAR
Vendor:
ICON Vehicle Dynamics
SKU:
FRDK_K53365T
Availability:
2
In Stock
Product Type:
Suspension Lift Kit
- Regular price
- $4,634.00 USD
- Regular price
-
$4,425.00 - Sale price
- $4,634.00 USD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description
xThe included ICON tubular upper control arm kit is designed to improve the overall performance of the Land Cruiser with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024 Toyota Land Cruiser 250 Series Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Specifications:
| Active or Passive Suspension | Passive |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 54102T - 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 TUBULAR REAR UPPER LINK KIT |
| Add-On Part | 54003T - 24 LC250/24 GX550 TUBULAR REAR LOWER LINK KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 54202 - 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR KIT |
| Adjustable Compression | No |
| Adjustable Control Arm | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| 2371 | Yes |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Quantity Front | 2 |
| 7325 | 2 |
| Front Shock Body Diameter | 2.5 |
| Front Spring Rate Type | Linear |
| 3390 | Performance |
| 5520 | 3 |
| Maximum Lift Front | 3 |
| Maximum Lift Rear | 2 |
| Minimum Lift Front | 1.25 |
| 30 | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Rear Shock Body Diameter | 2.5 |
| Rear Spring Rate Type | Progressive Dual Rate |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels | 17x8.5 with 6.32” Backspace / 40mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset |
| Reservoir Style | Remote |
| 3097 | Yes |
| 3096 | Black |
| 2064 | Steel |
| Title | ICON 2024 Toyota Land Cruiser 250 Series, 1.25-3" Lift, Stage 5 Suspension System, Tubular |
| Description_SHO | SUSPENSION SYSTEM |
| Description_INV | K53365T |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. |
| Description_ASC | APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range. |
| Description_DES | 24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 5 SUSPENSION SYSTEM TUBULAR |
| Description_EXT | ICON LC250 suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. |

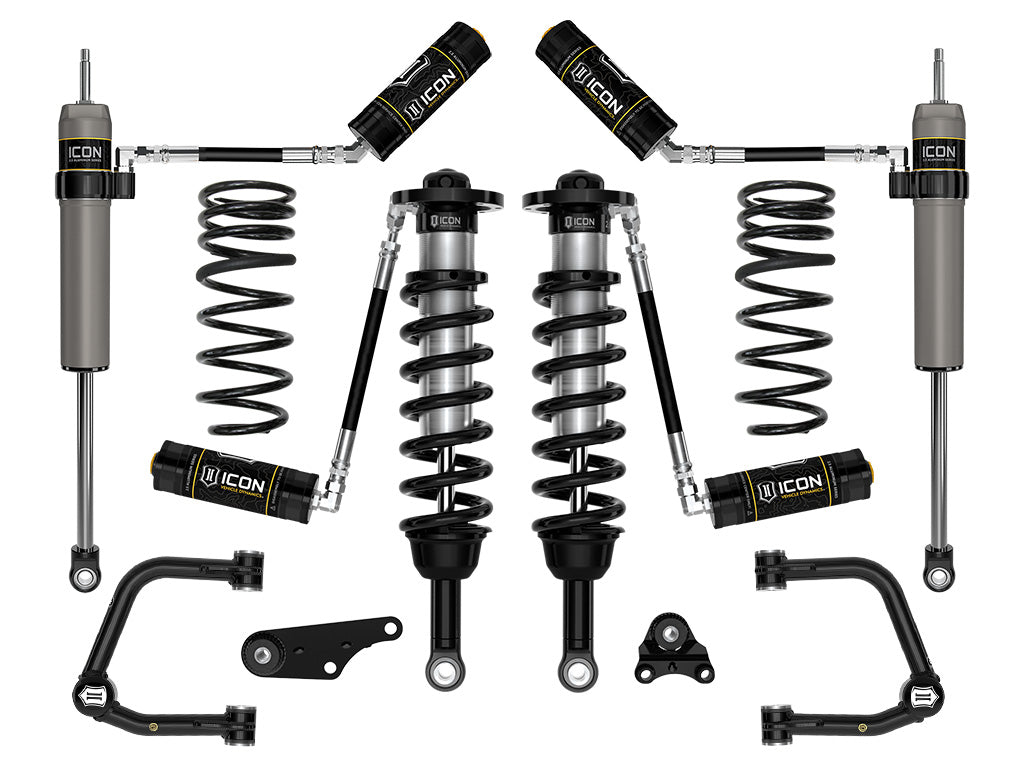

| Description_MKT | ICON Vehicle Dynamics 2024 Toyota Land Cruiser 250 Series suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. The Stage 5 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. |
| Description_MKT | The included ICON tubular upper control arm kit is designed to improve the overall performance of the Land Cruiser with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024 Toyota Land Cruiser 250 Series Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. |
| Description_FAB | 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling |
| Description_FAB | Increased wheel travel and improved ride quality over stock |
| Description_FAB | Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel |
| Description_FAB | Adjustable coilovers provide 1.25-3" front lift height over stock |
| Description_FAB | Tubular UCAs for added strength, durability, and alignment correction for better drivability |
| Description_FAB | UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation |
| Description_FAB | 6061 aircraft grade aluminum CNC machined components |
| Description_FAB | Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts |
| Description_FAB | Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift |
| Description_FAB | FK Rod End bearings for extended longevity and minimal deflection |
| Description_FAB | 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers |
| Description_TLE | ICON 2024 Toyota Land Cruiser 250 Series, 1.25-3" Lift, Stage 5 Suspension System, Tubular |
| Description_APS | ICON 24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 5 SUSPENSION SYSTEM TUBULAR |
| Description_DEF | Suspension Lift Kit |
