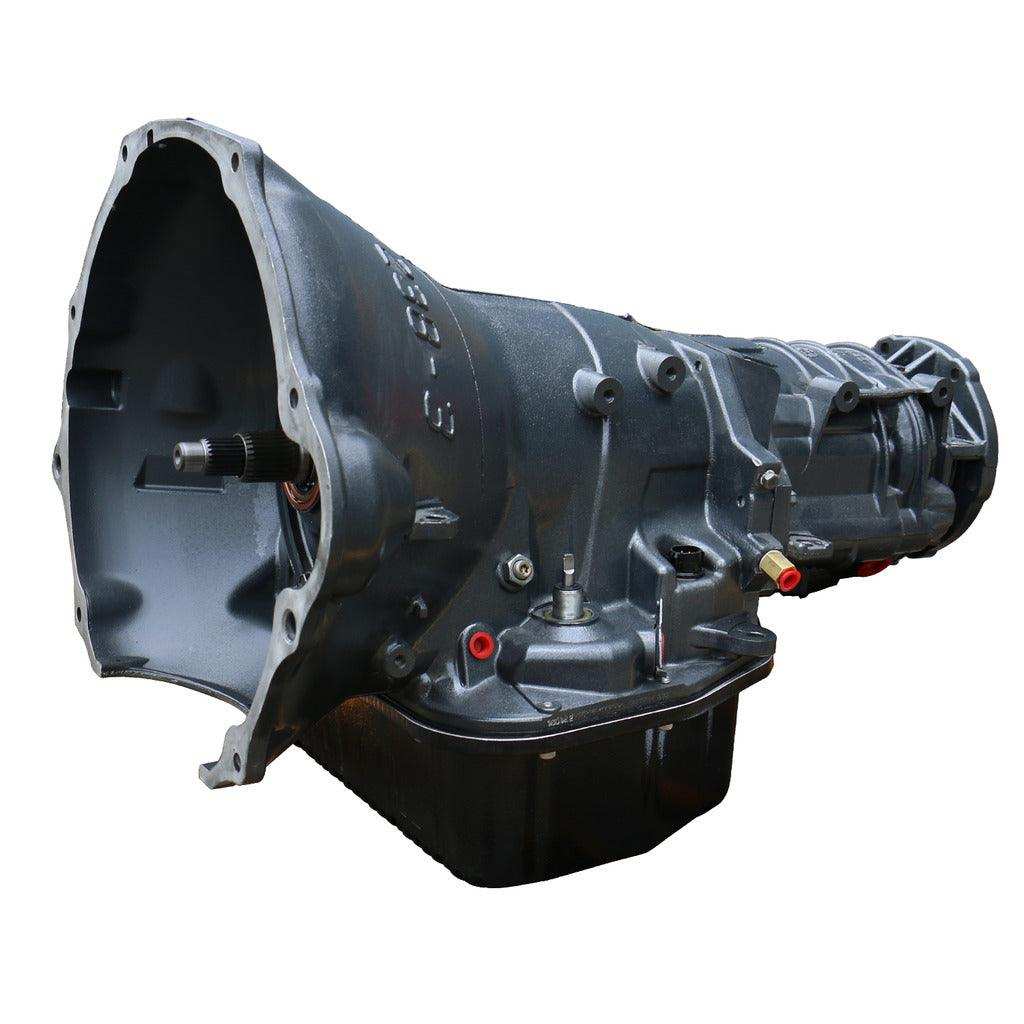

BD Diesel 1064194F Transmission Stage 4 Kit - 2003-2004 Dodge 48RE 4wd
1
Vendor:
BD Diesel
SKU:
BKJX_1064194F
Availability:
Out of stock. Chat\Call to Order
Product Type:
Automatic Transmission Assembly
- Regular price
- $5,078.00 USD
- Regular price
-
$7,622.00 - Sale price
- $5,078.00 USD
- Unit price
- per
Take 10% off select products at checkout.
Couldn't load pickup availability
* Images may differ from actual product.
Description

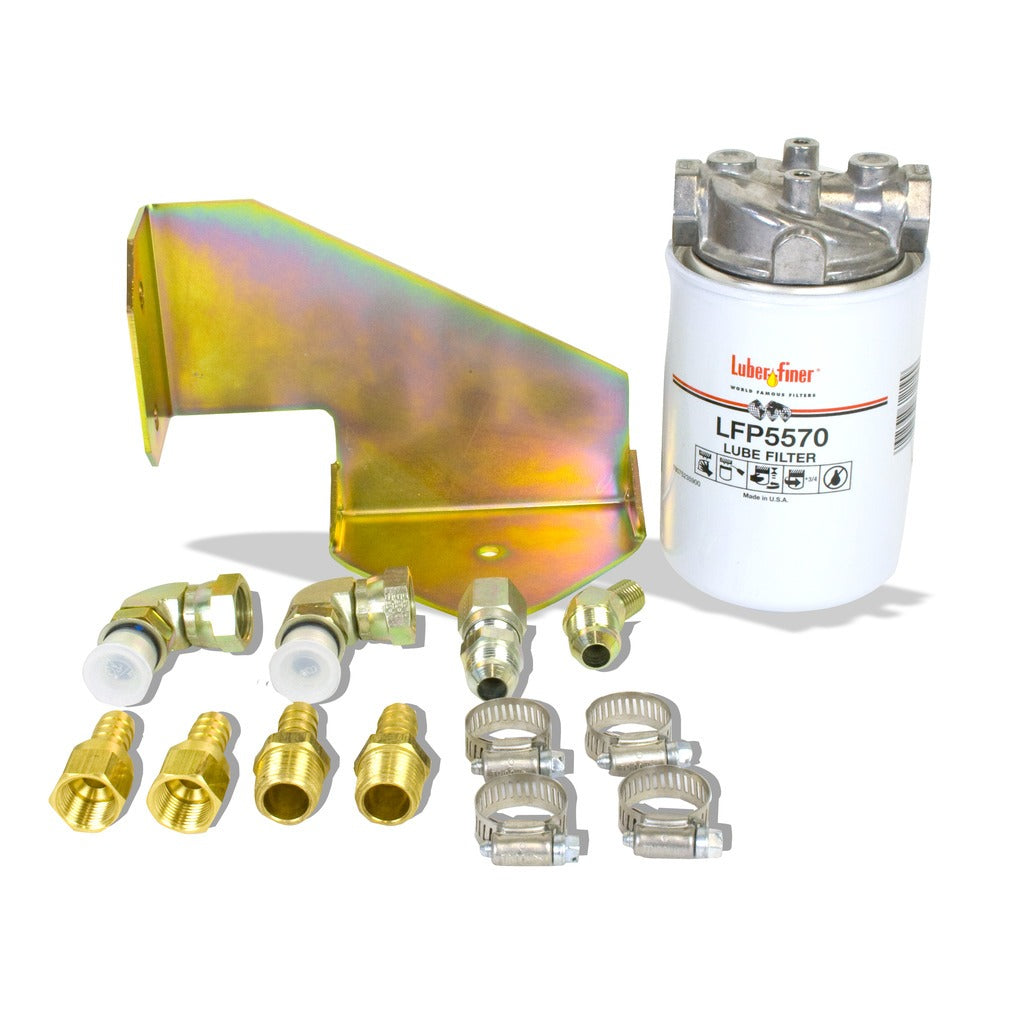

xThe stock transmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD transmission. All transmissions come with BD's heavy duty transmission pan and most packages come bundled with our auxiliary transmission filter kit for added protection!
Fees: Core: $2,502.00 CAD Will be applied after order. Its not included in price.
BD Transmissions Are Built Specifically To Handle The High Torque Loads Of Diesel Engines At Our State Of The Art Transmission Facility. We Re-Program The Valve Body For Higher Line Pressure, And Add Heavy-Duty Clutches With Up To 25 Percent More Material Than Stock. The Stock Thrust Washers, Which Disintegrate And Leave Metal Filings In Your Transmission, Are Replaced With Roller Torrington Bearings. We Install New Input Shafts And Hubs To Eliminate Possible Metal Fatigue Or High Torque Load Damage From Prior Use. We Upgrade Early 47RE Transmissions With More Rugged 48RE Components. We Recommend Billet Steel Input And Output Shafts For Applications With Extra Big Tires And Modified Power Levels. Inside Each Transmission Is A New Design Valve Body That Achieves Up To 80 Percent Higher Clutch Apply Pressures With The Pressure Increase Starting At Much Lower Engine RPM’s And At Lighter Throttle Pedal Position Movement. Light Throttle Shift Firmness Is Also Maintained At These Higher Apply Pressures And No Shuttle Shifting Problems.
Features & Benefits
- Dyno Tested To Make Sure It Functions Properly In All Gears and Built Specifically To Handle The High Torque Loads Of Diesel Engines At Our State-Of-The-Art Transmission Facility
- New Design Valve Body; Stock Thrust Washers Replaced With Roller Torrington Bearings Saves Governor Solenoids And Reduces Friction
- Drilled Intermediate Shaft For Increased Lube; Modified Manual Valve For Lube In All Positions; 47RE Transmissions Upgraded With More Rugged 48RE Components
- New Input Shafts And Hub; Pan Adds 1 Quart Extra Oil Capacity; BD Rigid Aluminum Heavy Duty Transmission Pan; Pan Reduces Case Flex And Internal Oil Leakage
- Up To 80 Percent Higher Clutch Apply Pressures Over The Stock Unit; Pressure Increase Starts At Much Lower Engine RPM's And At Lighter Throttle Pedal Position Movement
- Light Throttle Shift Firmness Is Also Maintained; No Shuttle Shifting Problems; Upgraded Governor Pressure Transducer; Upgraded Governor Solenoid - Twice The Burst Pressure Than Stock
- Cooler Line Case Saver In Every Transmission; Added Heavy-Duty Clutches With Up To 25 Percent More Material Than Stock; Machined Forward (Rear) Beveled Pressure Plate
- Fully Rollerized Geartrain; Increases The Durability Of Your Drivetrain; Revised Oil Circuits; Handles Up To 300 Percent More Power And Torque Than The Stock Transmission
- Extra Clutches And Stronger Internals; Pan Heat-Dissipating Fins Keep Temperature Down; Pan Magnetic Drain Plug
- Limited 36 Month Or 150,000 Mile Parts Warranty And Limited 12 Month Or 24,000 Mile Labor Warranty
Attributes
- Condition: Remanufactured
- Recommended Use: Street
- Model: 47RE
- Torque Converter Type: No Torque Converter
- Gear Ratio: OEM
- Tailshaft Length (IN): OEM
