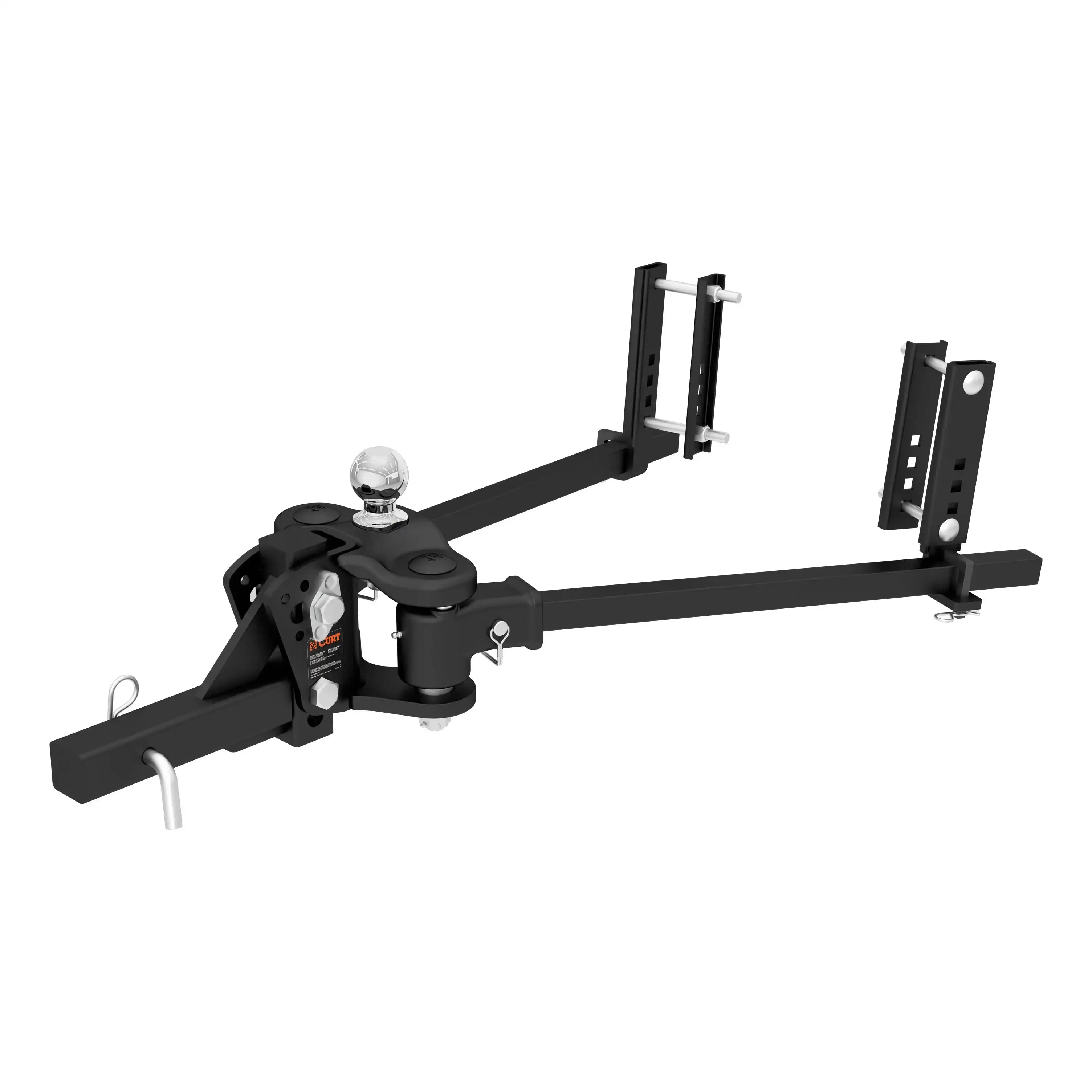

CURT 17500 TruTrack 4P Weight Distribution Hitch with 4x Sway Control, 8-10K
1- Regular price
- $609.95 USD
- Regular price
-
- Sale price
- $609.95 USD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description

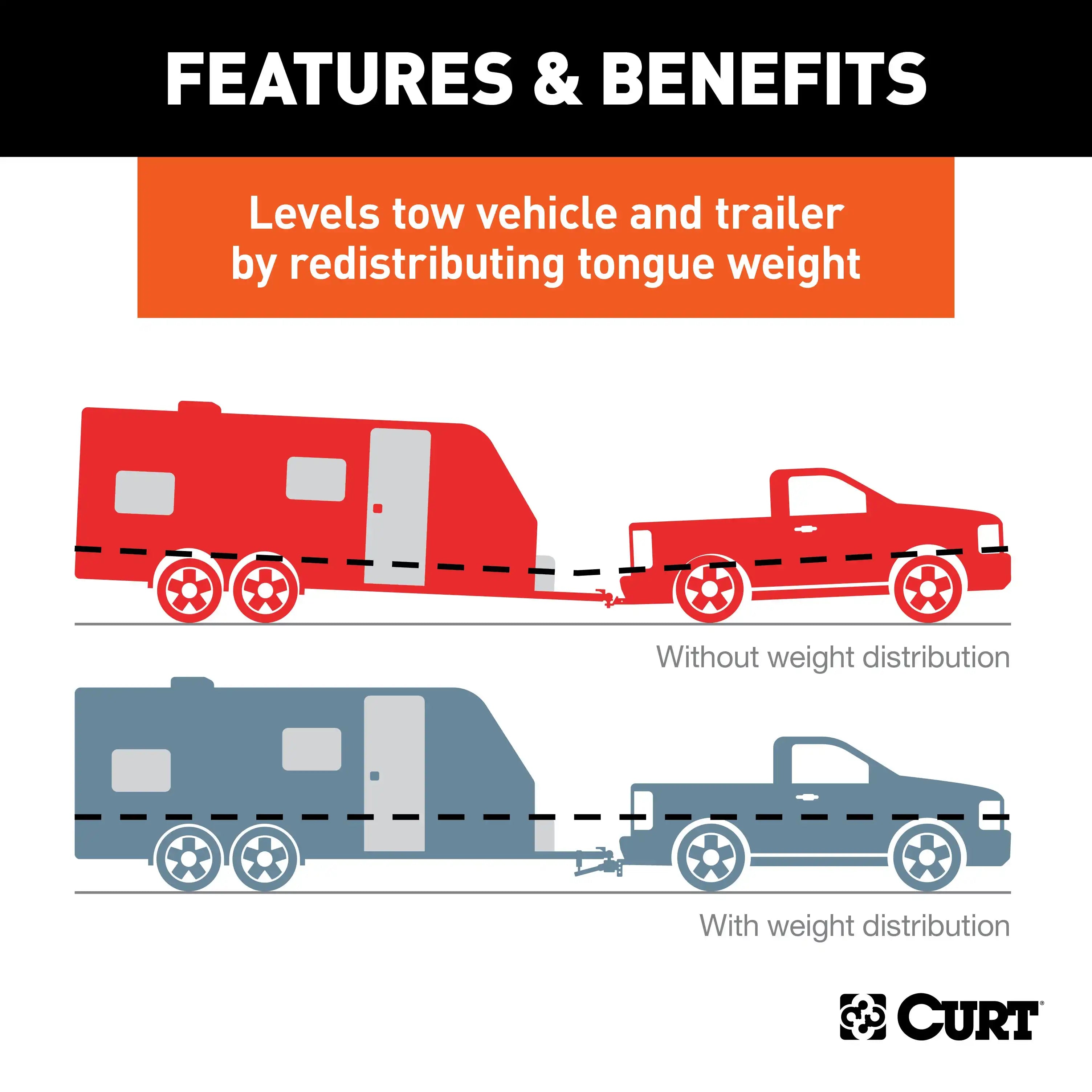

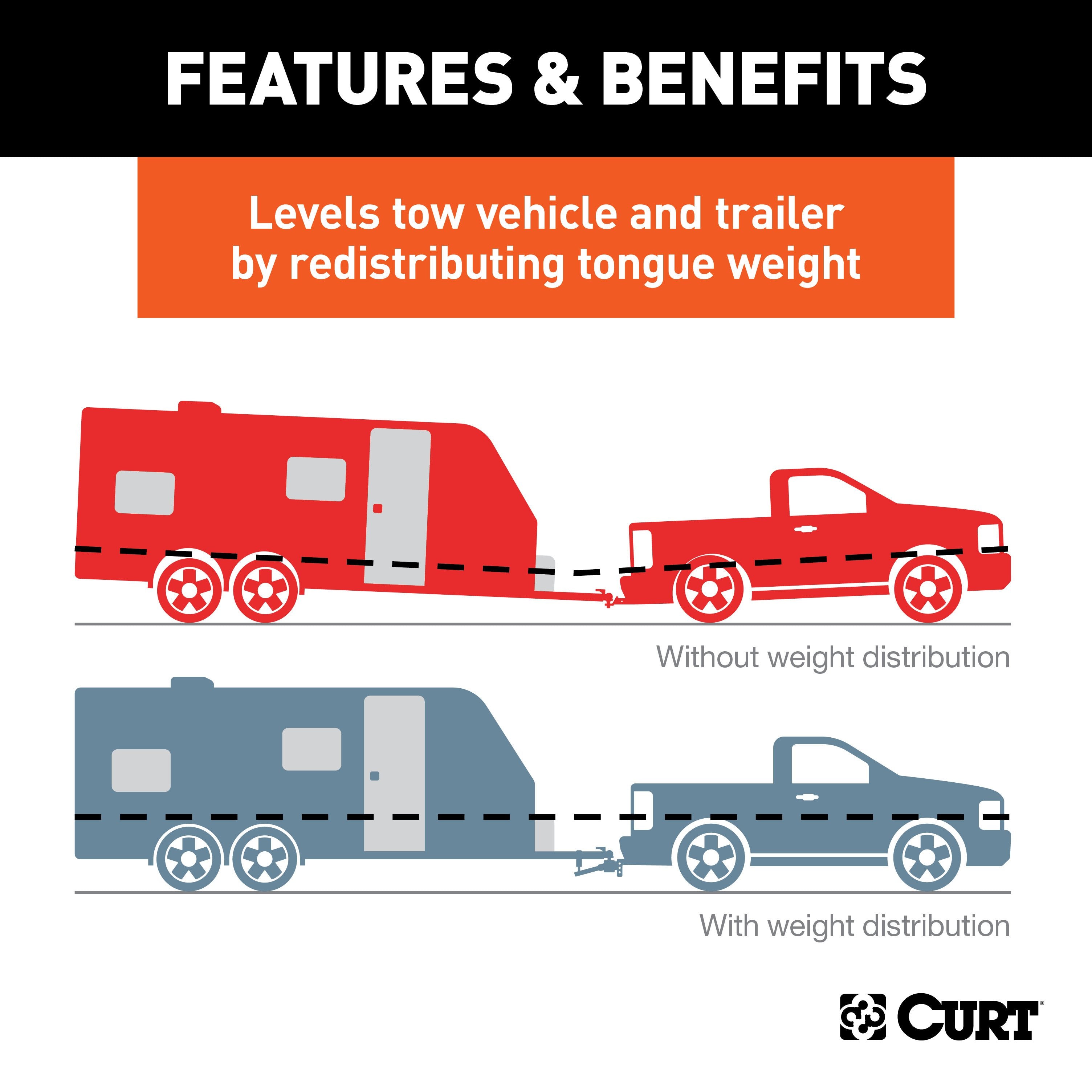

xTruTrack uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. The TruTrack also features a unique spring and cam system that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened components are less subject to wear and last longer than competitor models. Setting up the TruTrack WD hitch is faster and easier. While other WDs use washers and blind guesswork to find the proper tilt, the TruTrack employs interlocking nuts and six preset holes to provide specific angles of tilt and a simpler adjustment method. Unlike most WD hitches that require you to partially disassemble the hitch head to make adjustments, the interlocking nuts can easily be accessed on the outside of the head, making installation fast and adjustment easy.
Weight Distribution Hitch; TruTrack; Trunnion Bar; Fits 2 Inch Receiver; 1000 Pound Tongue Weight; 10000 Pound Gross Trailer Weight; With 12 Inch Adjustable Shank; With Integrated Sway Control; With 2-5/16 Inch Ball; Powder Coated
Features & Benefits

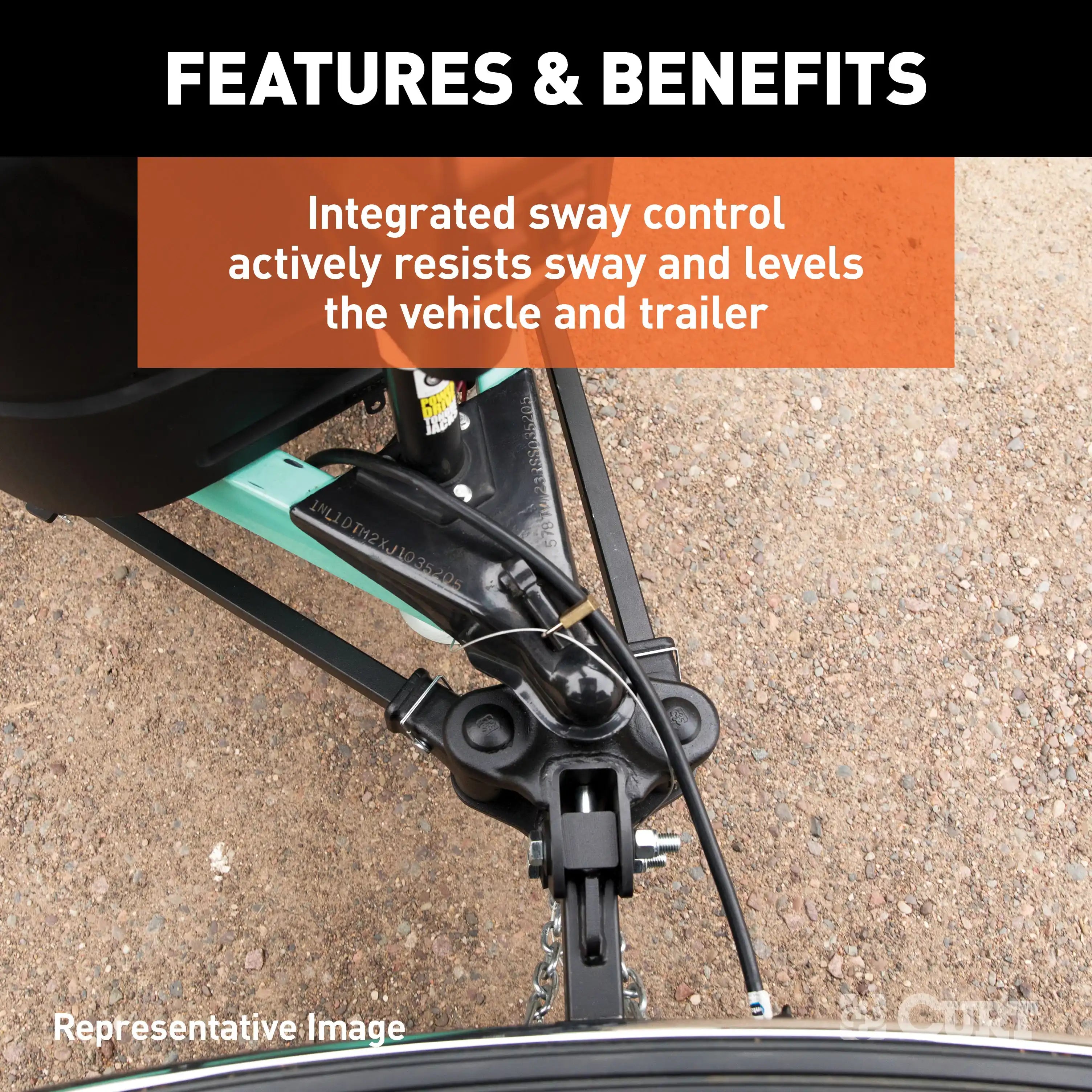

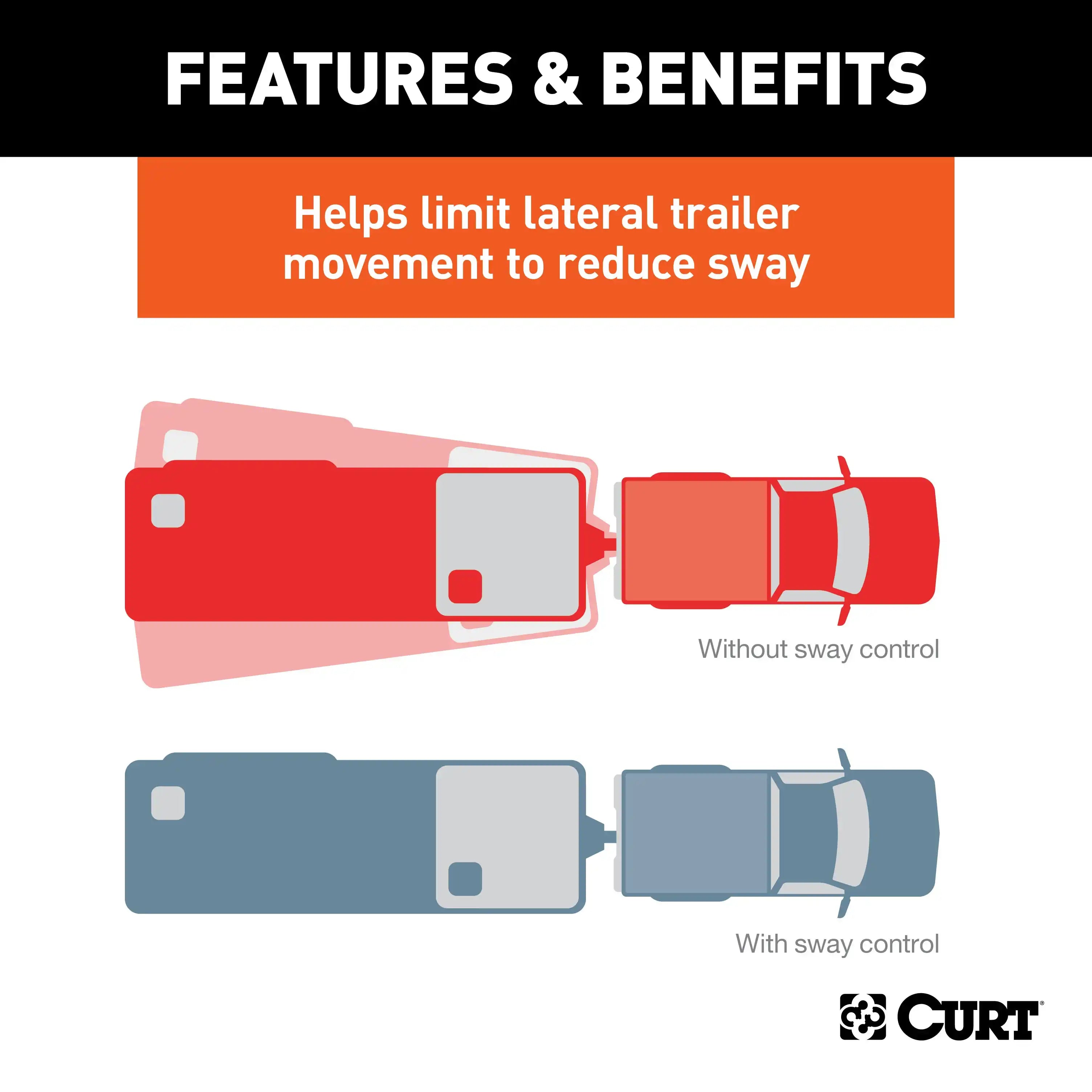

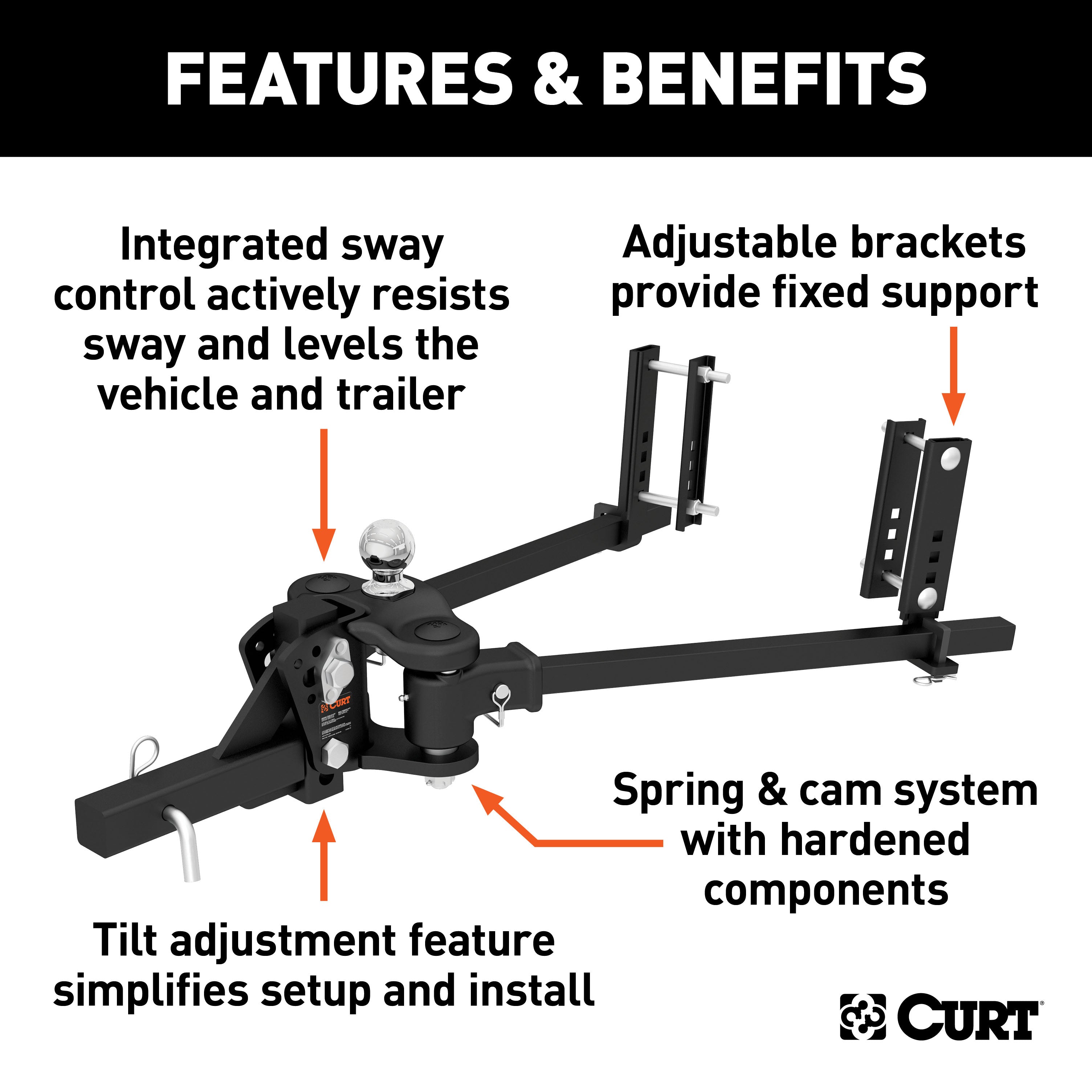

- Integrated Sway Control Actively Resists Sway And Levels The Vehicle And Trailer
- Welded Head With Cast Pieces Provides Solid Spring Bar Attachment

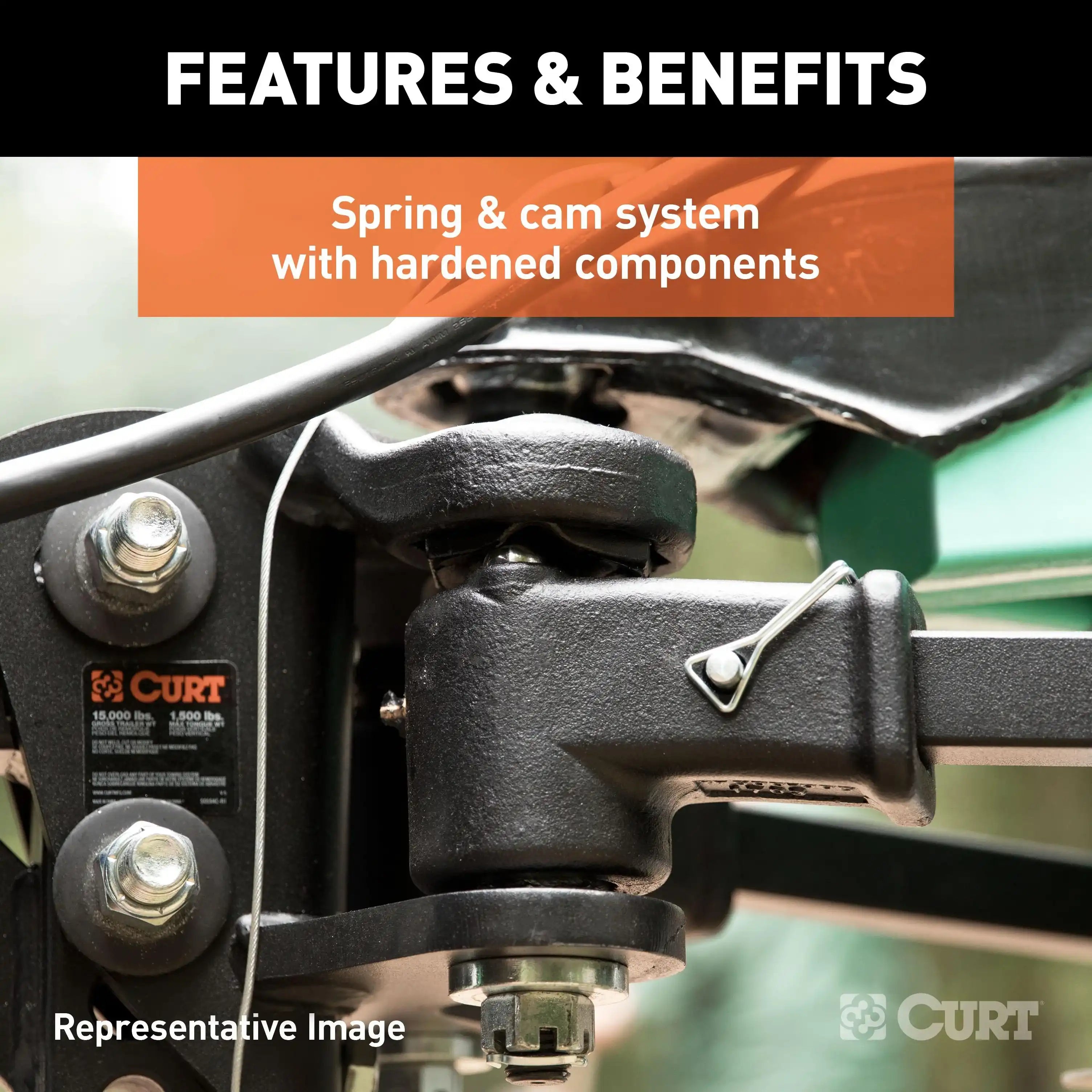

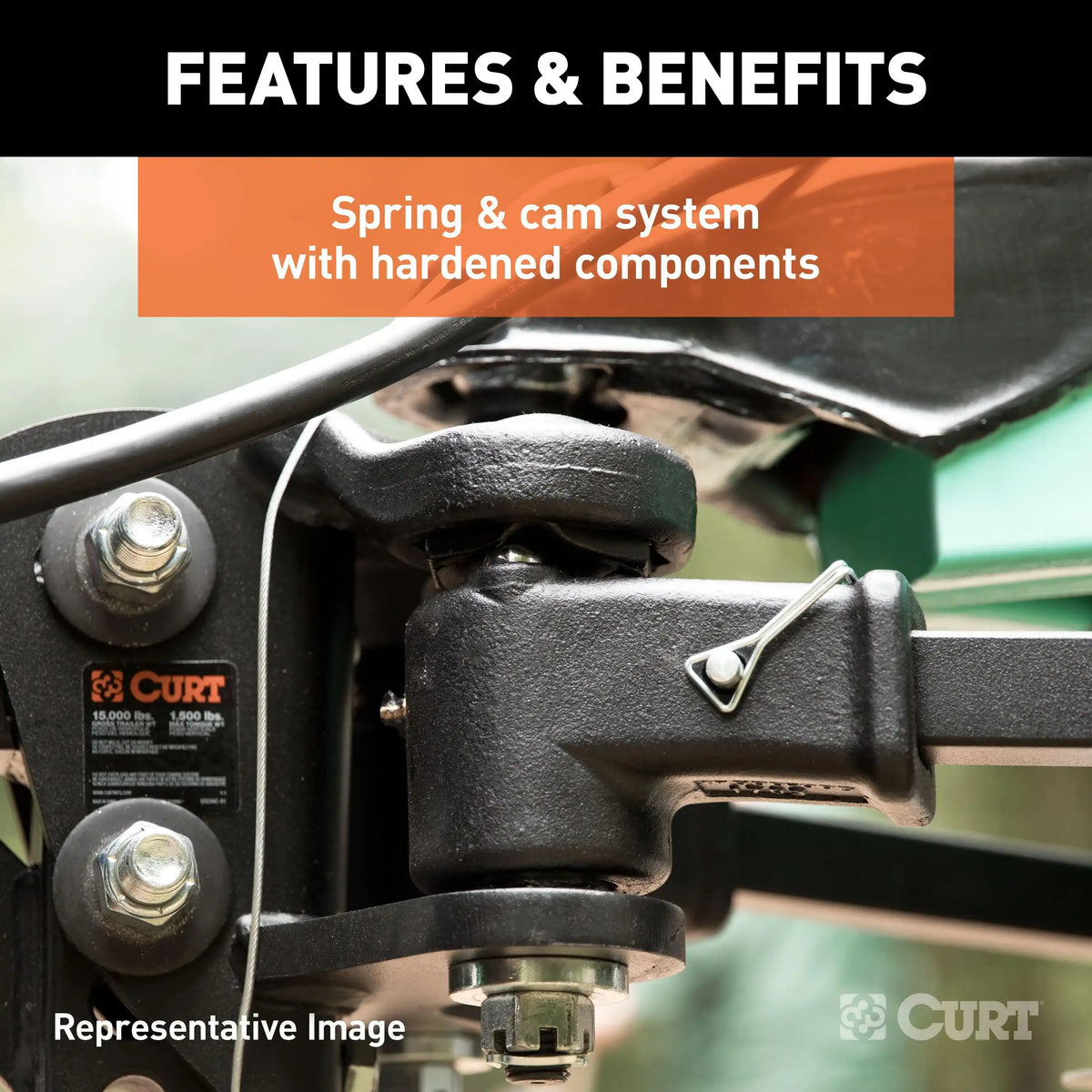

- Cam Springs Build Up Pressure For Integrated Sway Control

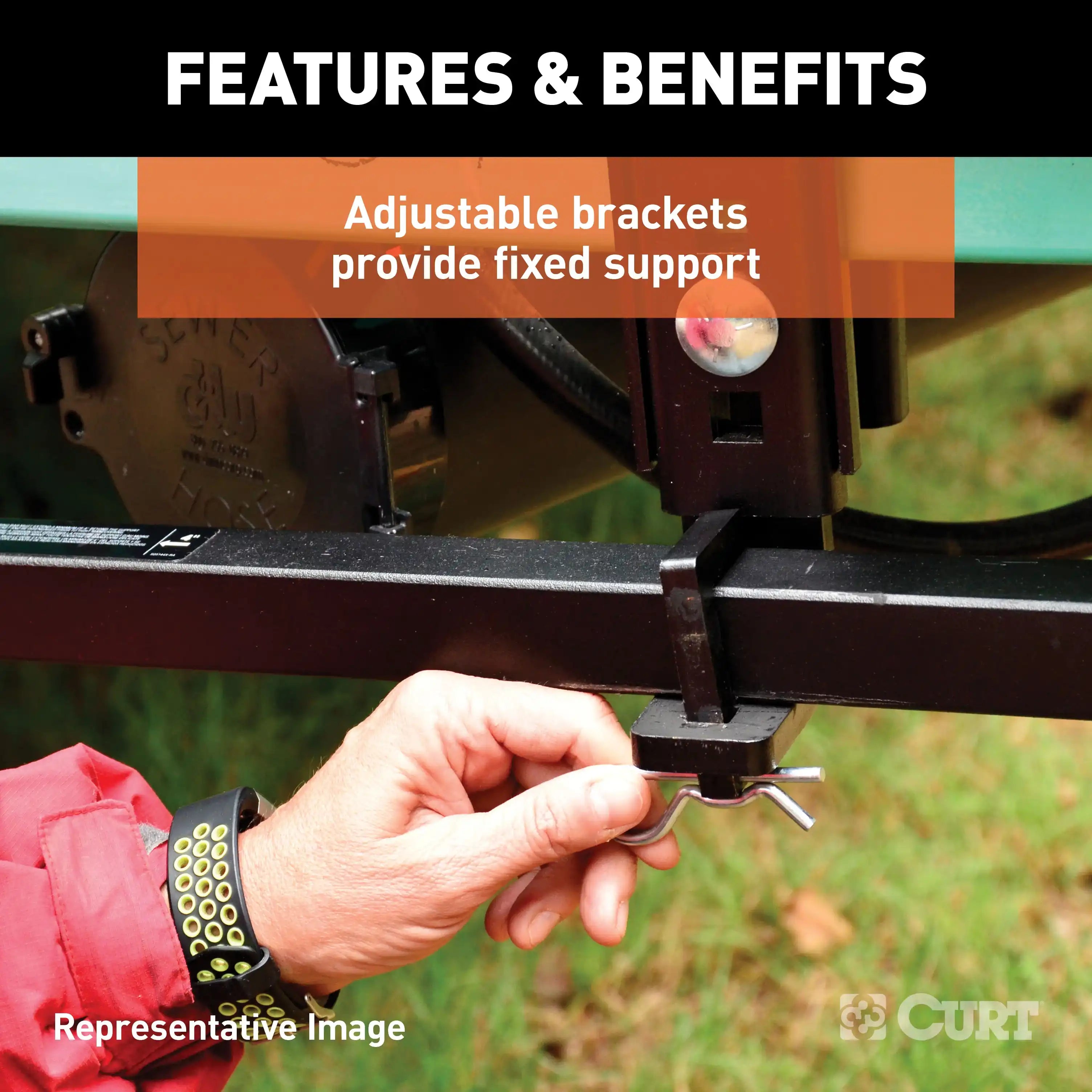

- Fixed Support Brackets Hold The Spring Bars In Place Laterally And Vertically, Brackets Use Friction To Resist Lateral Movement, Replacing A Sway Control
- Equipped With Trunnion-Style, Forged Steel Spring Bars
- Hex Castle Nut Allows For Easy Adjustment For Different Trailers
- Durable Carbide Powder Coat Finish And Industrial Chrome-Plated Cam Components

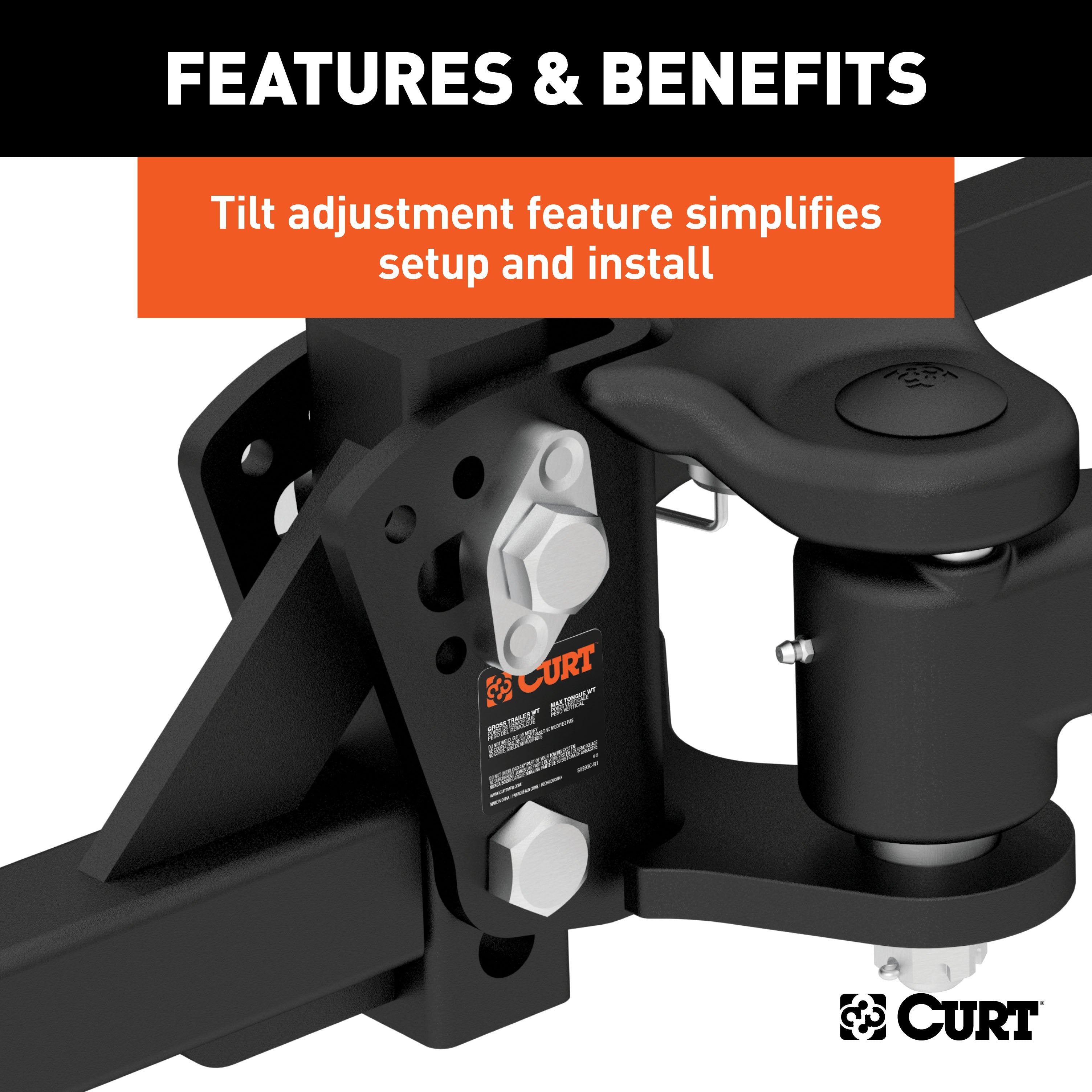

- 12 Inch Adjustable Shank Fits 2 Inch X 2 Inch Receiver Tube Openings, Tilt Adjustment Feature Simplifies Setup And Installation
- Limited 10 Year Warranty
While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with integrated sway control to deliver the smoothest, safest ride possible. This, coupled with the easiest setup in the industry, truly makes the TruTrack unparalleled in its class. Like all WD hitches, the TruTrack uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. The TruTrack also features a unique spring and cam system that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened components are less subject to wear and last longer than competitor models. Setting up the TruTrack WD hitch is faster and easier. While other WDs use washers and blind guesswork to find the proper tilt, the TruTrack employs interlocking nuts and six preset holes to provide specific angles of tilt and a simpler adjustment method. Unlike most WD hitches that require you to partially disassemble the hitch head to make adjustments, the interlocking nuts can easily be accessed on the outside of the head, making installation fast and adjustment easy. In addition to its integrated sway control and easy setup, the CURT TruTrack offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers, car haulers and other heavy-duty trailers.
Attributes
- Type: Trunnion Bar
- Gross Trailer Weight (LB): 10000 Pound
- Gross Tongue Weight (LB): 1000 Pound
- Color/ Finish: Black Powder Coated
- Drop (IN): 2 Inch
- Rise (IN): 2 Inch
- Includes Sway Control: With Built-In Sway Control
- Includes Shank: Yes
- Shank Length: 12 Inch
- Includes Ballmount: Yes
- Includes Ball: Yes
- Universality: Fully Universal
- Material: Steel
Additional Attributes:
- GTIN: 612314175000
- Retail Height - XA: 11.500
- Item Length - XA: 37.000
- Item Class - XA: OBS
- Class ID: 0
- Finish - XA: CARBIDE BLACK POWDER COAT
- Product Weight - XA: 0.000
- Gross Trailer Weight (GTW): 10,000 LB
- Item Width - XA: 13.000
- Item Height - XA: 11.500
- Retail Width - XA: 13.000
- Box Height in Inches - XA: 0
- Parcel Allowed - XA: Yes
- Retail Length - XA: 37.000
- Shipping Weight - XA: 118.000
- Box Width in Inches - XA: 0
- Box Length in Inches - XA: 0
- Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
- Tongue Weight (TW): 1,000 LB
- Color: Black
- Tariff 301 - XA: Yes
- Rate Class - XA: 70.0
Attributes
- Type: Trunnion Bar
- Gross Trailer Weight (LB): 10000 Pound
- Gross Tongue Weight (LB): 1000 Pound
- Color/ Finish: Black Powder Coated
- Drop (IN): 2 Inch
- Rise (IN): 2 Inch
- Includes Sway Control: With Built-In Sway Control
- Includes Shank: Yes
- Shank Length: 12 Inch
- Includes Ballmount: Yes
- Includes Ball: Yes
- Universality: Fully Universal
- Material: Steel
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 37.000 x 13.000 x 11.500 inches
