Advanced Clutch ZM2-HDSS - Transmission Kit

Name: Advanced Clutch ZM2-HDSS - Transmission Kit
Brand: Advanced Clutch
SKU: BHXS_ZM2-HDSS
Price: 613.00 CAD
Availability: InStock

Vendor: Advanced Clutch

SKU: BHXS_ZM2-HDSS

Availability: 1 In Stock

Product Type: Transmission Clutch Kit

Regular price: $613.00
Regular price: ~~$596.00~~
Sale price: $613.00
Unit price: per

Why Pay More? We Price Match & Beat It.

Quantity:

"Excellence in Performance", backed by the best one-year warranty in the industry!

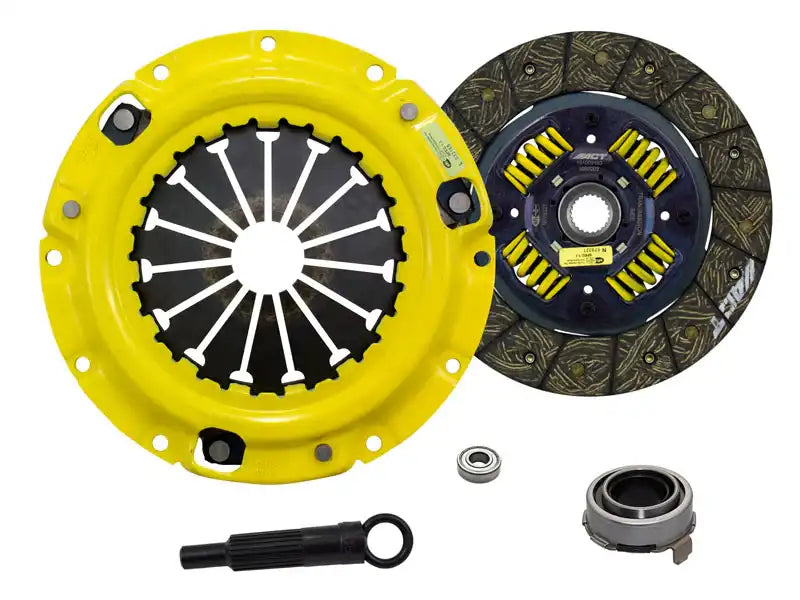

This ACT clutch kit includes a Heavy-Duty pressure plate, Performance Street disc, release bearing, pilot bearing and alignment tool. The Heavy-Duty pressure plate allows for a 20 to 50 Percent increase in clamp load over the stock unit. ACT’s Heavy-Duty pressure plate features precision CNC machined parts, drive straps and rivets to securely locate contact face to the cover for quiet, trouble-free operation. The Heavy-Duty pressure plate will have a stock to moderate pedal feel. ACT pressure plates feature creative diaphragm designs to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure an exclusive four-stage, heat-treating process for unparalleled performance. The Heavy-Duty pressure plate meets SFI Specification 1.1. ACT Performance Street discs are modified with reduced marcel for faster shift action to complement ACT pressure plates. Performance Street discs have higher copper content friction lining for heat tolerance and steel-backed lining for greater burst strength and durability. Also, they feature top grade rivets to securely fasten the part together. The rivet design and rivet materials are carefully selected for maximum strength. ACT spring-centered assemblies use bushings and cone springs similar to factory clutch discs. This creates frictional dampening, which improves clutch life and reduces noise. All Performance Street discs are certified as meeting SFI Specification 1.1 and are legal in all racing organizations that require SFI certification. The kit is completed with a quality, stock replacement release bearing, pilot bearing and alignment tool.

Clutch Set; Street; 8.8 Inch Clutch Diameter; 15/16 Inch x 22 Spline Input Shaft; Diaphragm; Single Disc/ Organic Friction Material; Full Face Design/ Sprung Hub; With Flywheel/ Throwout Bearing/ Pilot Bearing/ Alignment Tool

Features & Benefits

Center Hub Springs Help Lessen The Shock Of Engagement
Premium Organic Friction Material For High Heat Tolerance, Quick Recovery, Good Friction And Long Life
Strict SFI Certification Ensures Driver And Spectator Safety
Steel Backed Linings For Higher Burst Strength
Spring Center Construction Properly Dampens Torsional Vibrations For Quieter Operation
Clamp Load Increase Of 20 To 50 Percent Over Stock With A Stock To Moderate Pedal Feel
All ACT Pressure Plates Are Dynamically Computer Balanced For Smooth Operation At High RPM
Limited 1 Year Warranty

Attributes

Input Shaft Size: 15/16 Inch X 22 Spline
Pressure Plate Design: Diaphragm
Disc Diameter: 8.8 Inch
Number Of Friction Discs: 1 Disc
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Disc Friction Material: Organic
Disc Friction Face Design: Full Face
Disc Hub Design: Medium Sprung
Pressure Plate Clamp Load: 10.4 Pound
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 245 Feet/Pound
Pressure Plate Material: Steel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Includes Alignment Tool: Yes

Specifications:

Description_ASC	Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle; Longer friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade; Recommended for street and race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Description_ASM	ZM2-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.
Description_DEF	Transmission Clutch Kit
Description_DES	HD/Perf Street Sprung
Description_EXT	HD/Perf Street Sprung
Description_INV	ACT HD/Perf Street Sprung Kit
Description_KEY	clutch kit;pressure plate;heavy duty;spring-centered;street disc, sprung disc;sprung hub
Description_LAB	HD/Perf Street Sprung
Description_MKT	"Excellence in Performance", backed by the best one-year warranty in the industry!
Description_SHO	Clutch Kit
